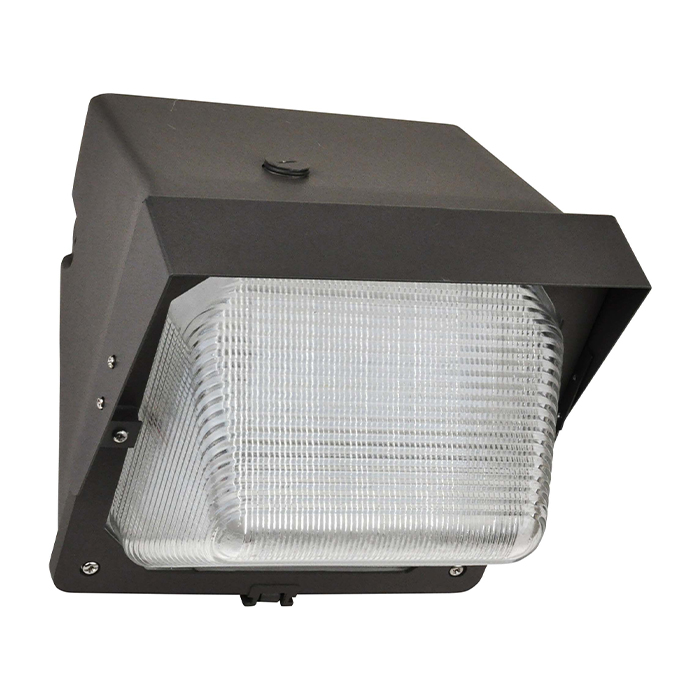

The naturaLED® TWP traditional wall pack features a durable cast-aluminum housing with superior thermal design. Combining reliability with a classic aesthetic, it seamlessly replaces existing wall packs or perimeter lighting. Ideal for outdoor applications, including carports, loading areas, driveways, parking lots, and pathways, it is designed for wall mounting at a height of over four feet.
| Category | Wall Packs |
| Wattage | 28W,58W,59W,60W |
| CCT | 3000K,4000K |
| Lumens | 3,448~7,449 |
| Voltage | 120-277V |
Item Code | Description | Wattage | CCT | Lumens | Equiv. Watt | Dimmable | Color | Emergency Driver | Photocell | Spec | IES |
|---|---|---|---|---|---|---|---|---|---|---|---|
7756 | LED-FXTWP28/30K/DB | 28 | 3000K | 3,448 | 175W | 1-10V | Bronze | 7336 | P10036 |  |  |
7777 | LED-FXTWP55/40K/DB | 58 | 4000K | 8,382 | 400W | 0-10V | Bronze | 7334 | P10036 | | |
7758 | LED-FXTWP59/30K/DB | 59 | 3000K | 7,128 | 250-400W | 0-10V | Bronze | 7334 | P10036 | | |
7088 | LED-FXTWP60/40K/DB | 60 | 4000K | 7,449 | 250-400W | 1-10V | Bronze | 7334 | P10036 | | |
| Wattage | |
|---|---|
| CCT | |
| Color | |
| Voltage | |
| Dimmable | |
| CRI | |
| IP Rating | |
| Photocell | |
| Sensor | |
| Warranty | |
| Listings |
Image | Item Code | Order Code | Description | Data Spec |
|---|---|---|---|---|
  | P10234 | SEN-MC605V-D | Microwave Motion Photocell Sensor 0-10V | - |
 | P10004 | WG-TWP-MEDIUM | Wireguard for Medium TWP 39-60W Size: 14.30”x9.20” | |
 | 7336 | BAEM4-60BC/MV-A | 4W CEC Compliant LED Emergency Driver for #7756 | |
 | 7334 | BAEM15-48BC/MV-A | 15W CEC Compliant LED Emergency Driver | |
 | P10036 | SEN-PHO-BT-MT/MV | Button Photocell 120-277V | - |
 | P10002 | LENS-TWP-SMALL | Glass Lens Gasket for 28W Size: 9.05”x9.20” | - |
| P10000 | LENS-TWP-MEDIUM | Glass Lens Gasket Size: 14.30”x9.20” | - |
| P10001 | LENS-TWP-LARGE | Glass Lens Gasket Size: 18.5”x9” | - |
| P10003 | LENS-TWP-PC-MEDIUM | Plastic Lens Gasket Size: 14.30”x9.20” | - |
 | P10022 | CVR-TWP-MEDIUM/DB | Full Cut-off Shield for medium Size: 14.5”x9” | |
| P10023 | CVR-TWP-LARGE/DB | Full Cut-off Shield for Size: 18.5”x9” | |
