CWP
Full Cut Off Wall Pack CCT3

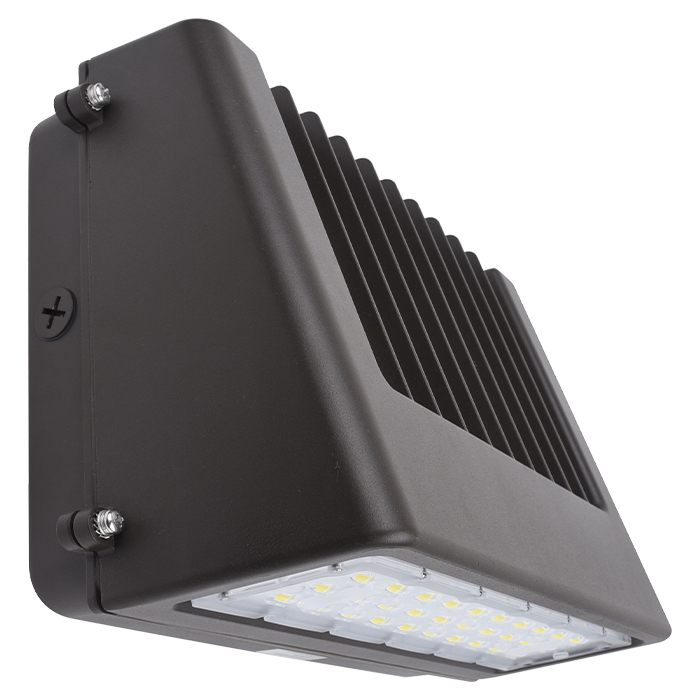

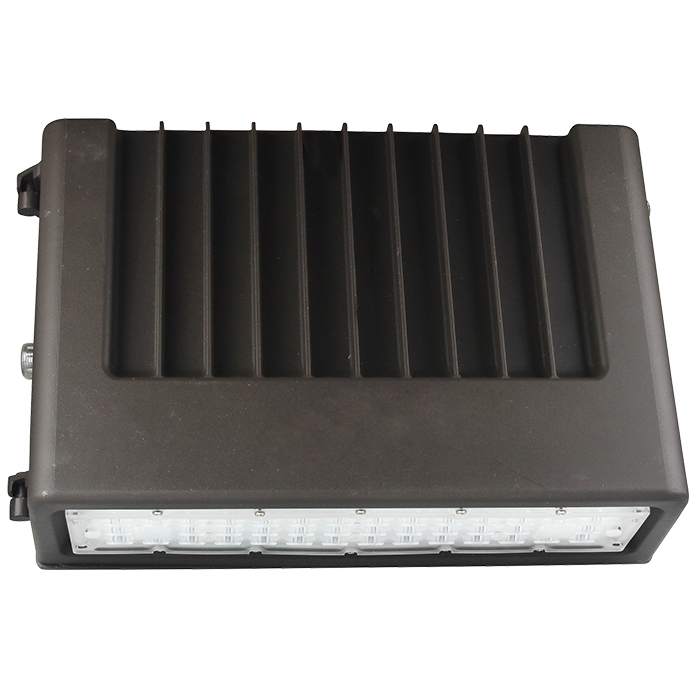

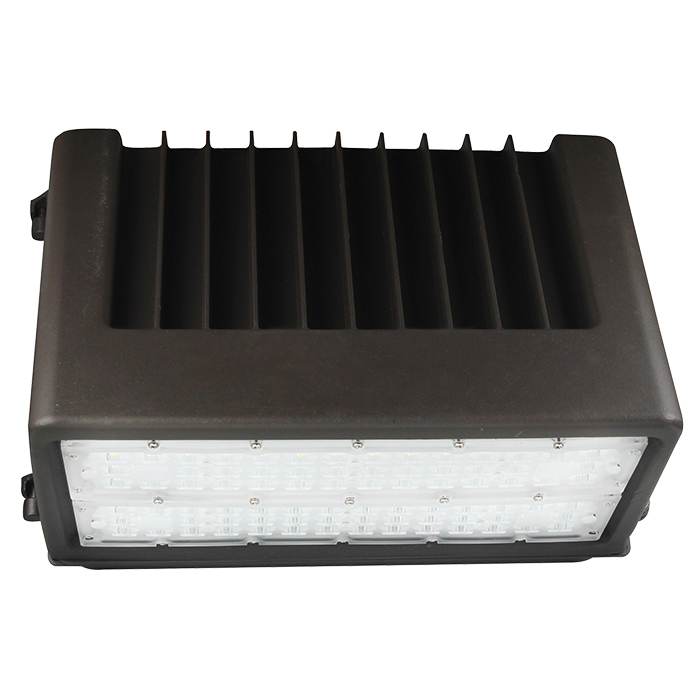

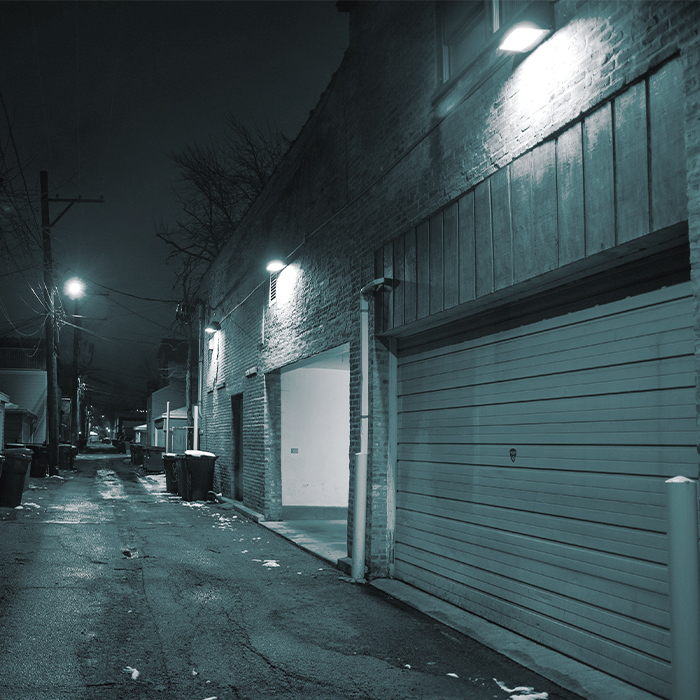

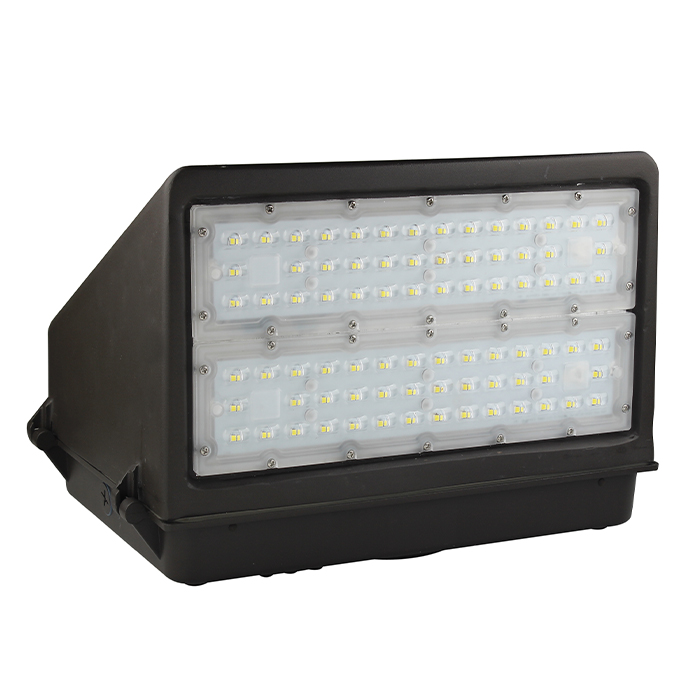

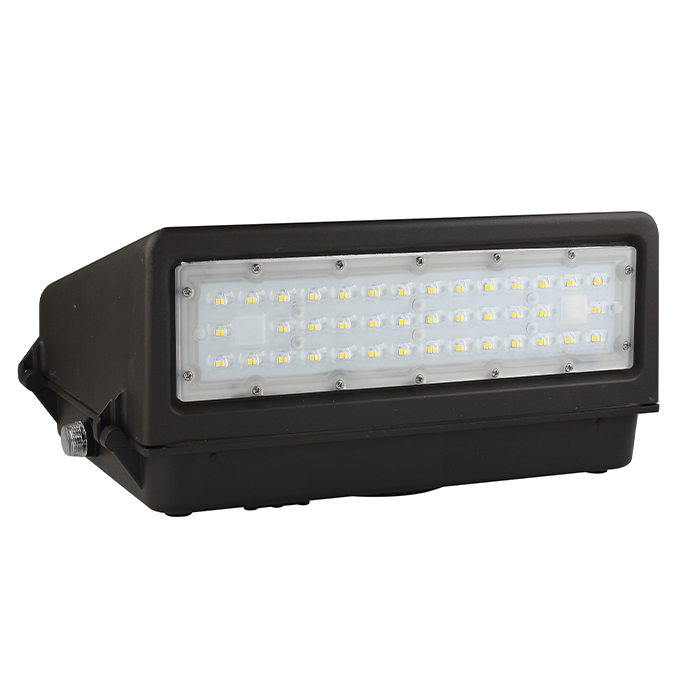

The naturaLED® cut-off wall pack features a durable cast-aluminum housing with an advanced thermal design. Its sleek, angled design offers a timeless yet modern appearance. This CWP model can replace metal halide luminaires of up to 750 watts, delivering energy savings of up to 72%. It is perfect for outdoor spaces such as carports, loading zones, driveways, parking lots, and pathways. For optimal performance, wall mounting is recommended at a minimum height of four feet from the ground.

Spec Sheet Installation Guide for CCT3 Installation Guide

Category Cut-Off Wall Packs
Wattage Selectable & Single Wattages
CCT CCT3(30/40/50K), 4000K, 5000K
Lumens 3,780~16,525
Voltage 120-277V

Categories: ,

Description

Item Code
Description
Wattage
CCT
Lumens
Equiv. Watt
Motion Sensor
Emergency Driver
Photocell
Listing
Spec
IES
9553
FXCWP60SW/CCT3/BZ-PHO
28
40
60
3CCT
(30/40/50K)
3,780
5,400
8,176
100-400W
K540380
7334
-
9554
FXCWP120SW/CCT3/BZ-PHO
80
100
126
3CCT
(30/40/50K)
10,388
12,985
16,464
575-750W
P10540
7341
-
9319
LED-FXCWP40/40K/BZ
39
4000K
5,288
250W
K540380
7336
9208
LED-FXCWP60/40K/BZ
63
4000K
8,347
400W
K540380
7334
9209
LED-FXCWP60/50K/BZ
63
5000K
8,425
400W
K540380
7334
9443
LED-FXCWP80/40K/BZ
83
4000K
11,048
400-575W
P10540
7341
9444
LED-FXCWP80/50K/BZ
83
5000K
11,193
400-575W
P10540
7341
9445
LED-FXCWP120/40K/BZ
121
4000K
16,525
575-750W
P10540
7341
9446
LED-FXCWP120/50K/BZ (Photocell Not Included)LED-FXCWP120/50K/BZ (Photocell Not Included)
121
5000K
16,776
575-750W
P10540
7341
-

Additional information

Wattage

, , ,

CCT

, ,

CRI

Color

Voltage

Dimmable

IP Rating

Photocell

,

Sensor

Warranty

Listings

,

Download

Spec Sheet Installation CCT3 Installation

Video

Accessories

Item Code
Order Code
Description
Data Spec
7336
BAEM4-60BC/MV-A
4W CEC Compliant LED Emergency Driver for #9319, 9320
7334
BAEM15-48BC/MV-A
15W CEC Compliant LED Emergency Driver for #9208, 9209,955
7341
BAEM15-260BC/347-A
15W CEC Compliant LED Emergency Driver 120-347V for #9443,9444,9445,9446,9554
K540380
SEN-ANT-11-WH/BA12V
Microwave Sensor Kit 0-10V for #9319,9320,9208,9209, 9446
-
P10540
SEN-ANT-11-WH
Remote Programmable Microwave Motion Sensor
0-10V Bi-Level Internal 12V Low Voltage
for #9443,9444,9445,9553,9554
-
P10316
SEN-BRI-RC100
Remote Programmer for P10540
-
