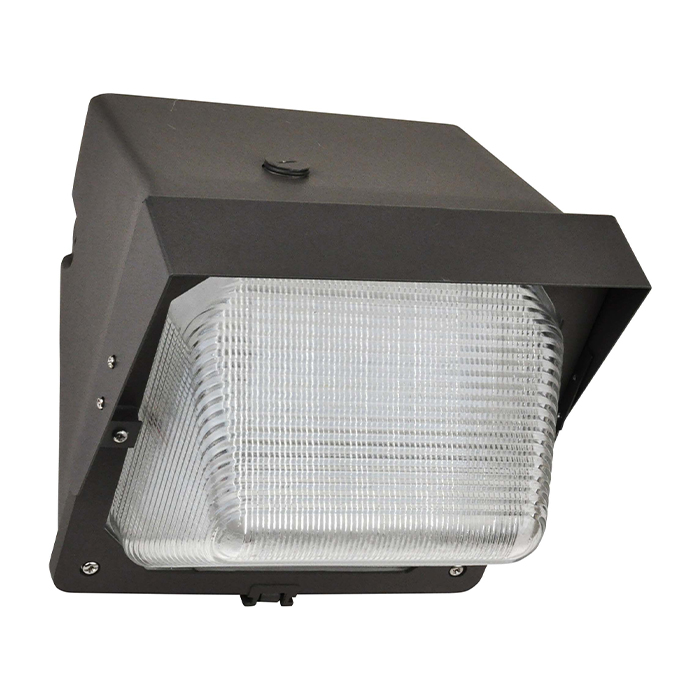

naturaLED® TWP traditional wall pack comes in rugged cast-aluminum housing with excellent thermal design. Our TWP product offers a popular classic appearance for your needs. The traditional shape maintains an aesthetic appearance and will replace any building’s wallpack or perimeter lighting. Ideal for outdoor applications such as carports, loading areas, driveways, parking areas and pathways. Designed for wall mounting above four feet from the ground.
| Category | Wall Packs |
| Wattage | 28W, 58W, 59W, 60W |
| Lumens | 3,448~7,449 |
| Voltage | 120-277V |
| CCT | 3000K, 4000K |
Item Code | Description | Wattage | CCT | Lumens | Equiv. Watt | Dimmable | Color | Emergency Driver | Photocell | Listing | Spec | IES |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
28 | 3000K | 3,448 | 175W | 1-10V | Bronze | 7336 | P10036 | IP65 |  |  |
||
58 | 4000K | 8,382 | 400W | 0-10V | Bronze | 7334 | P10036 | IP65 | | |
||
59 | 3000K | 7,128 | 250-400W | 0-10V | Bronze | 7334 | P10036 | IP65 | | |
||
60 | 4000K | 7,449 | 250-400W | 1-10V | Bronze | 7334 | P10036 | IP65 | | |
| Wattage | |
|---|---|
| CCT | |
| Color | |
| Voltage | |
| Dimmable | |
| CRI | |
| IP Rating | |
| Photocell | |
| Sensor | |
| Warranty | |
| Listings |
Image | Item Code | Order Code | Description | Data Spec |
|---|---|---|---|---|
  | P10234 | SEN-MC605V-D | Microwave Motion Photocell Sensor 0-10V | - |
 | P10004 | WG-TWP-MEDIUM | Wireguard for Medium TWP 39-60W Size: 14.30”x9.20” | |
 | 7336 | BAEM4-60BC/MV-A | 4W CEC Compliant LED Emergency Driver for #7756 | |
 | 7334 | BAEM15-48BC/MV-A | 15W CEC Compliant LED Emergency Driver | |
 | P10036 | SEN-PHO-BT-MT/MV | Button Photocell 120-277V | - |
 | P10002 | LENS-TWP-SMALL | Glass Lens Gasket for 28W Size: 9.05”x9.20” | - |
| P10000 | LENS-TWP-MEDIUM | Glass Lens Gasket Size: 14.30”x9.20” | - |
| P10001 | LENS-TWP-LARGE | Glass Lens Gasket Size: 18.5”x9” | - |
| P10003 | LENS-TWP-PC-MEDIUM | Plastic Lens Gasket Size: 14.30”x9.20” | - |
 | P10022 | CVR-TWP-MEDIUM/DB | Full Cut-off Shield for medium Size: 14.5”x9” | |
| P10023 | CVR-TWP-LARGE/DB | Full Cut-off Shield for Size: 18.5”x9” | |
