SWP
Slim Wall Packs CCT3

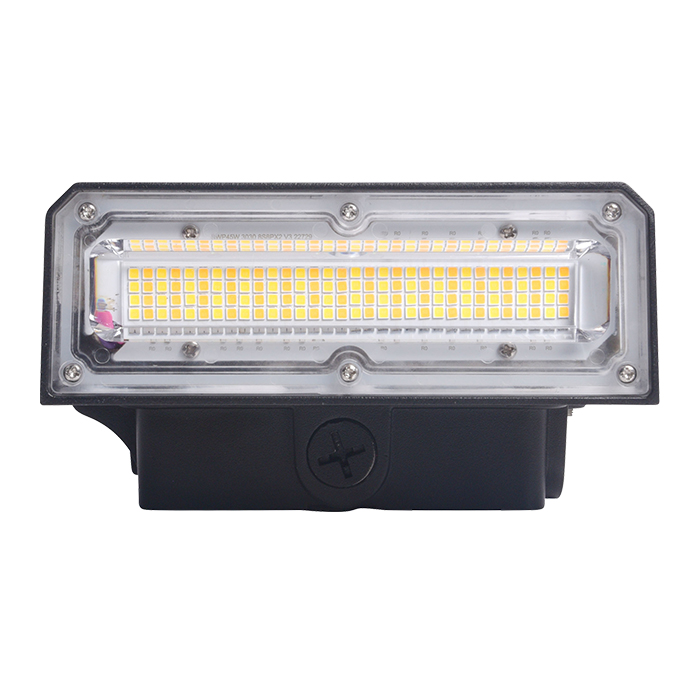

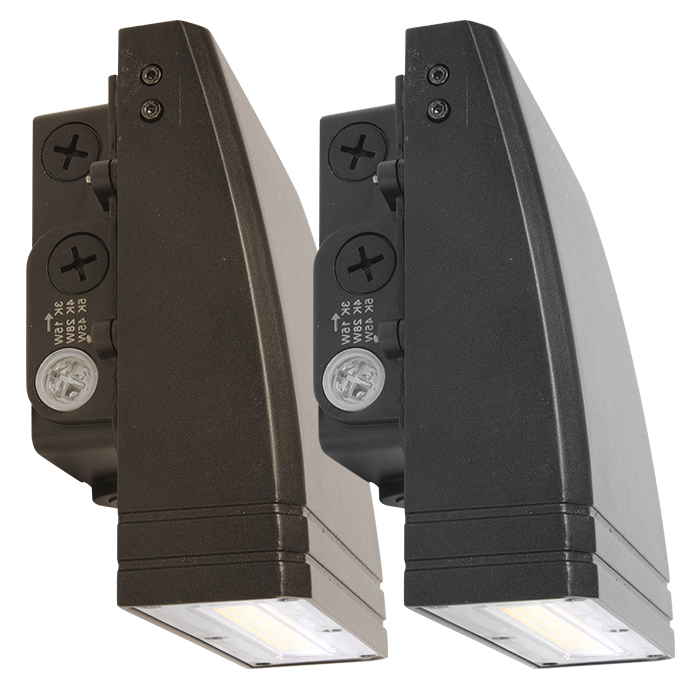

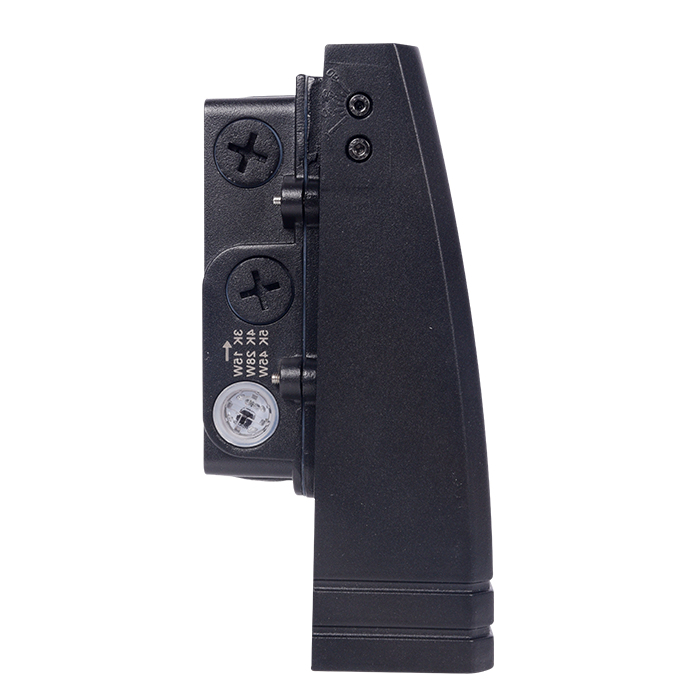

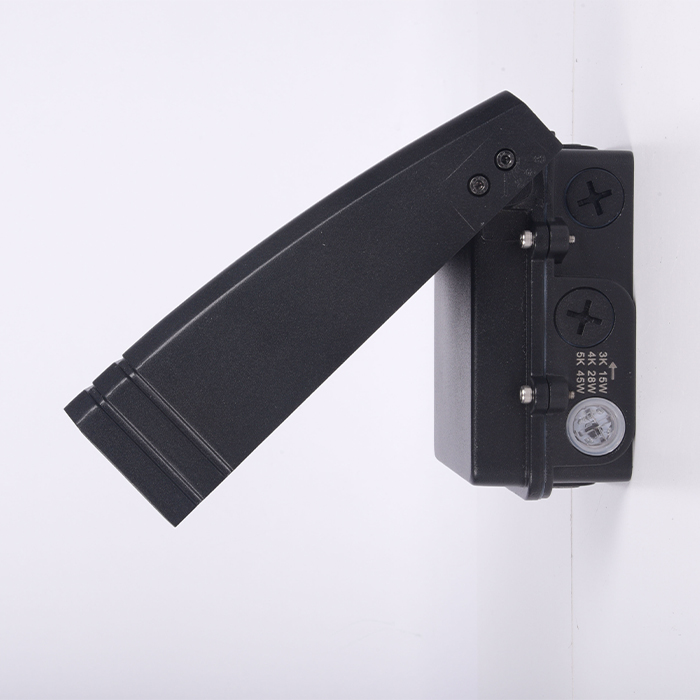

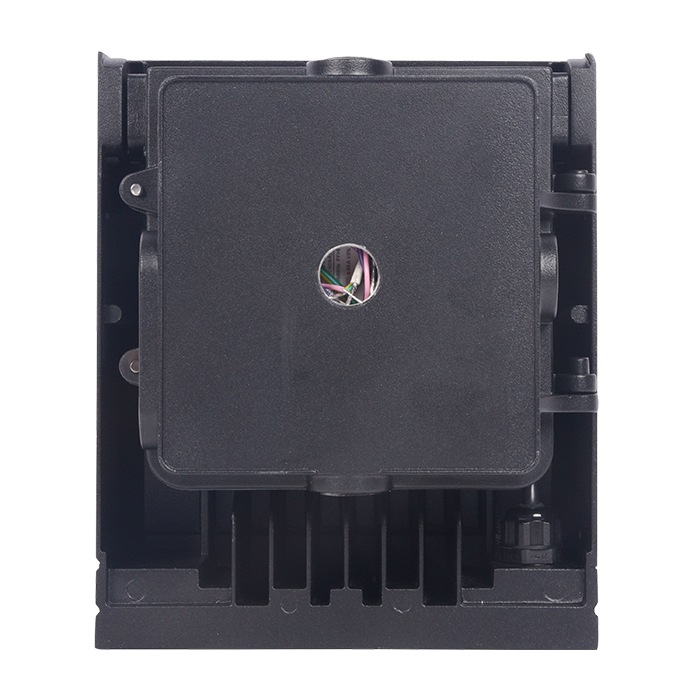

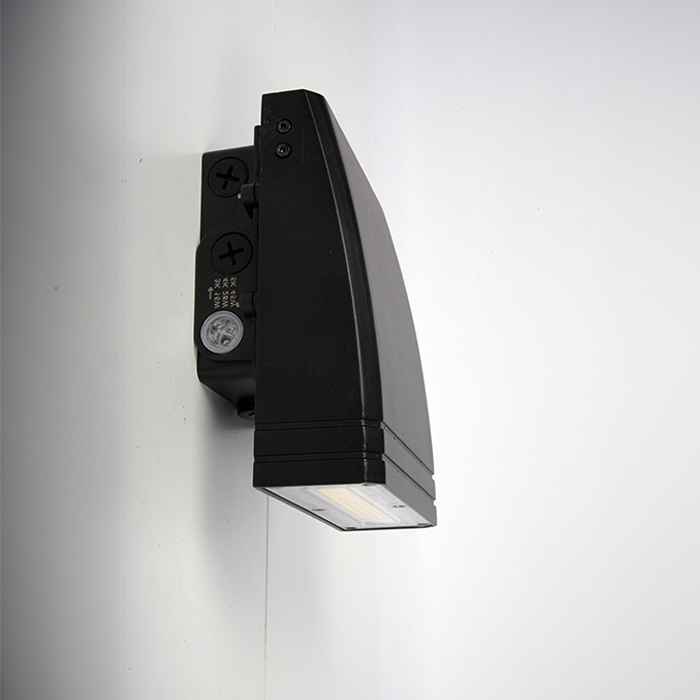

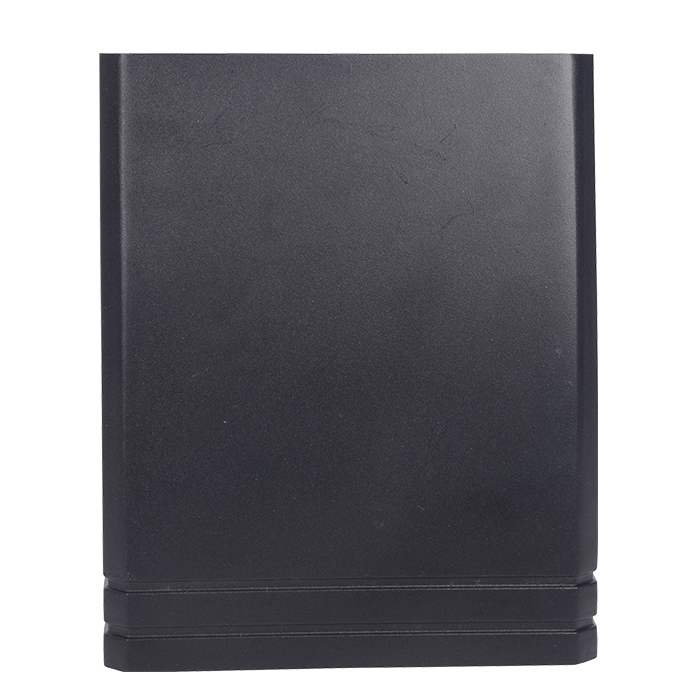

naturaLED® slim, low-profile cutoff wall pack with a smooth contemporary design. Well-engineered, high-quality die-cast aluminum, delivering bright, crisp light. The excellent thermal design ensures our SWP’s performance overrated life. Installation is made simple and easy with an adjustable angle and hinged junction box. Our 45-watt Slim Wall Packs are available with wattage and color temperature selectable of Black and Bronze. Optional ¾” knuckle-mount, adjustable swivel bracket, or slip fitter provides you the flexibility for your application. SWP is ideal for landscape, wall/surface, low-level pathways, apartment buildings, schools, and multi-use facilities.


CategorySlim Wall Packs -Adjustable Angle
WattageSelectable Wattages
Lumens1,800~5,400
Voltage120-347V
CCTCCT3 (30/40/50K)

SPEC SHEET BROCHURE

Categories: ,

Description

Item Code
Description
Wattage
CCT
Lumens
Equiv. Watt
Color
Photocell
Listing
Spec
IES
15
28
45
3CCT
(30/40/50K)
1,800
3,360
5,400
100-250W
Bronze
15
28
45
3CCT
(30/40/50K)
1,800
3,360
5,400
100-250W
Black

Additional information

Weight 4.40 lbs
Dimensions 3.94 × 6.57 × 7.87 in
Wattage

,

CCT

Color

,

Voltage

Dimmable

IP Rating

Photocell

Sensor

Warranty

Listings

, ,

Download

SPEC SHEET INSTALLATION BROCHURE

Video





Accessories

Item Code
Order Code
Description
Data Spec
P10254
MT-KNC-SWP/BZ
3/4” NPT Knuckle - Bronze
-
P10006
MT-KNC-SWP/BK
3/4” NPT Knuckle - Black
-
P10255
MT-SF-SWP/BZ
Slip Fitter - Bronze
-
P10007
MT-SF-SWP/BK
Slip Fitter - Black
-
P10253
MT-SB-SWP/BZ
Swivel Bracket - Bronze
-
P10005
MT-SB-SWP/BK
Swivel Bracket - Black
-
