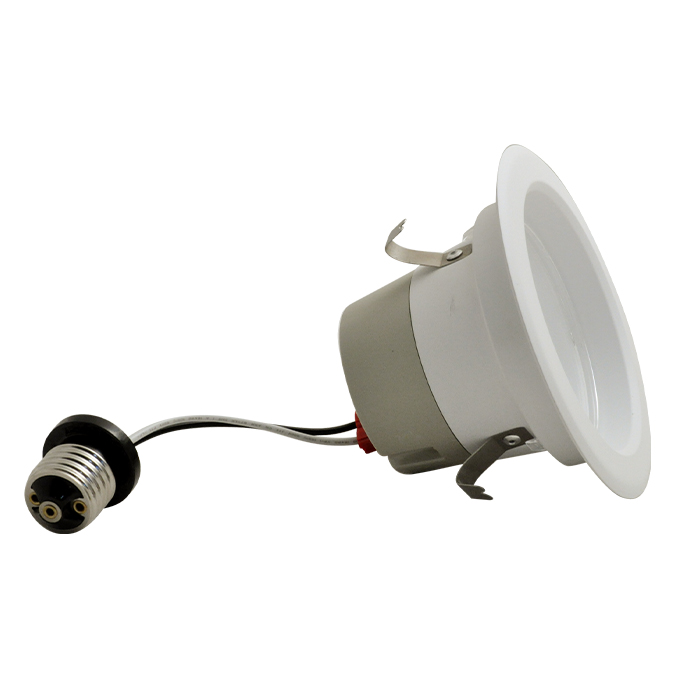

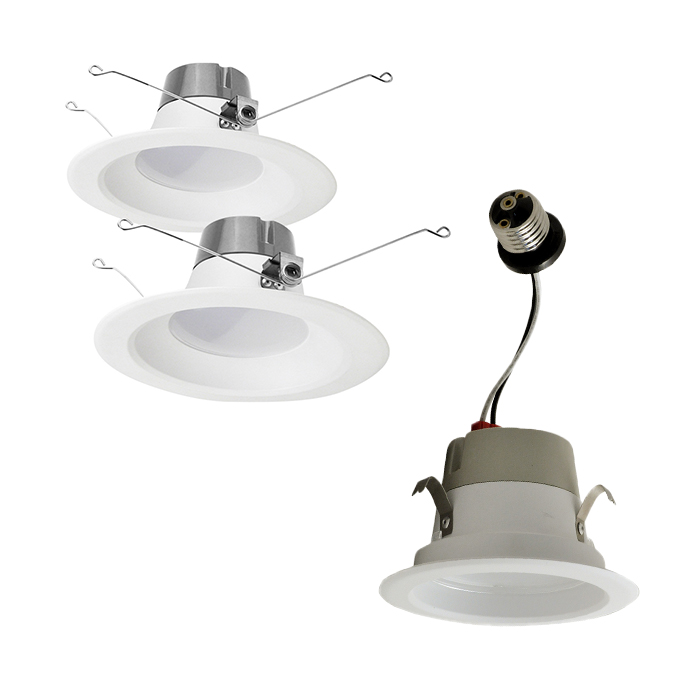

Our RL retrofit downlights provide an energy-efficient lighting solution to replace 50W and 90W incandescent lamps in the industry’s most common 4-inch and 5/6-inch recessed downlight fixtures. Featuring easy installation and Air-Tight certification, these retrofits are dimmable and come with a built-in power connector. The adjustable torsion clips allow for easy installation in both 5-inch and 6-inch recessed cans. Optional color trims in Bronze, Chrome, and Black are also available for added customization.
| Category | Recessed Retrofit Ceiling Mount |
| Wattage | 9W,10W,13W |
| CCT | 2700K,3000K,4000K,5000K |
| Lumens | 560~980 |
| Voltage | 120V |
Item Code | Description | Wattage | CCT | Lumens | Equiv. Watt | Size | Wet/Damp | Emergency Driver | Spec | IES |
|---|---|---|---|---|---|---|---|---|---|---|
7172 | LED4RL-56L40K | 9W | 4000K | 560 | 50W | 4" | Damp | 7337 |  |  |
7173 | LED4RL-56L50K | 9W | 5000K | 560 | 50W | 4" | Damp | 7337 | | |
7198 | LED4RL-56L827CP (2 pack) | 9W | 2700K | 650 | 60W | 4" | Wet | 7337 | | |
7580 | LED4RL-58L927 | 9W | 2700K | 580 | 60W | 4" | Wet | 7337 | | |
7177 | LED4RL-55L930 | 9W | 3000K | 550 | 60W | 4" | Damp | 7337 | | - |
7519 | LED4RL-70L930-JA8 | 10W | 3000K | 700 | 65W | 4" | Wet | 7337 | | |
7199 | LED6RL-88L827CP (2 pack) | 13W | 2700K | 980 | 90W | 5"/6" | Wet | 7337 | | - |
| Wattage | |
|---|---|
| CCT | |
| CRI | |
| Color | |
| Voltage | |
| Dimmable | |
| Beam Angle | |
| Diameter | |
| Shape | |
| IP Rating | |
| Photocell | |
| Sensor | |
| Listings | |
| Warranty |
Image | Item Code | Order Code | Description | Data Spec |
|---|---|---|---|---|
 | 7337 | BAEM25-170BC/347-C | 25W Micro Inverter 120-347V with 12" Conduit | |
 | P10029 | ADP-RLGU24-N | GU24 Socket Adaptor | - |
 | P10057 | RT-4RL-BK | Black 4" Recessed Trim Fits 7567, 7578, 7580, 7198, 7093 | - |
| P10060 | RT-6RL-BK | Black 5"/6" Recessed Trim Fits 7199 | - |
 | P10058 | RT-4RL-CH | Chrome 4" Recessed Trim Fits 7567, 7578, 7580, 7198, 7093 | - |
| P10061 | RT-6RL-CH | Chrome 5"/6" Recessed Trim Fits 7199 | - |
 | P10082 | RT-4RL-CH-WH | Chrome & White 4" Recessed Trim Fits 7567, 7578, 7580, 7198, 7093 | - |
| P10083 | RT-6RL-CH-WH | Chrome & White 5"/6" Recessed Trim Fits 7199 | - |
 | P10059 | RT-4RL-BZ | Bronze 4" Recessed Trim Fits 7198 | - |
| P10062 | RT-6RL-BZ | Bronze 5"/6" Recessed Trim Fits 7199 | - |
 | P10084 | RTS-4RL-WH | White Square 4" Recessed Trim Fits 7567, 7578, 7580, 7198, 7093 | - |
| P10085 | RTS-6RL-WH | White Square 5"/6" Recessed Trim Fits 7199 | - |
