RL
Retrofit Recessed Lights

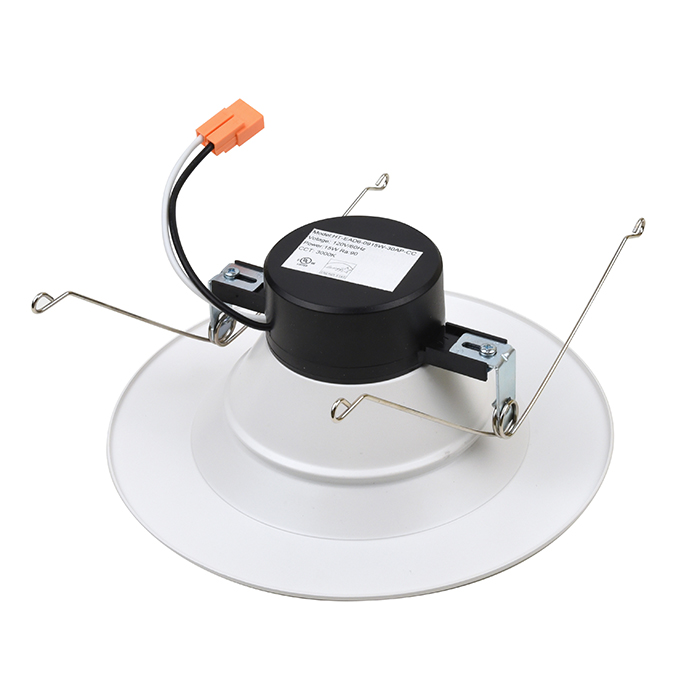

The naturaLED® Title 24/JA8-2016 Recessed Downlight (CRI90) Retrofits offer a straightforward LED lighting solution to replace 60W to 120W incandescent recessed lamps. Designed for energy efficiency, these retrofits are compatible with the most popular 4 to 6-inch recessed downlight fixtures. Featuring easy installation and Air-Tight certification, the downlights are dimmable, have a CRI of 90, and include an E26 adapter. The 5 to 6-inch model also comes with adjustable torsion clips for a secure fit in both 5 and 6-inch recessed cans.


Spec Sheet Installation Guide


Category Recessed Retrofit Ceiling Mount
Wattage 9W,15W
CCT 3000K,4000K,5000K
Lumens 540~1,100
Voltage 120V

Description

Item Code
Description
Wattage
CCT
Lumens
Equiv. Watt
Size
Wet/Damp
Emergency Driver
Spec
IES
9W
3000K
540
60W
4"
Damp
7337
9W
4000K
540
60W
4"
Damp
7337
9W
5000K
540
60W
4"
Damp
7337
15W
3000K
1,100
120W
5"/6"
Damp
7337

Additional information

Wattage

CCT

, ,

CRI

Color

Voltage

Dimmable

Beam Angle

Diameter

,

Shape

IP Rating

Photocell

Listings

Warranty

Download

Spec Sheet Installation Guide

Accessories

Item Code
Order Code
Description
Data Spec
7337
BAEM25-170BC/347-C
25W Micro Inverter 120-347V with 12" Conduit
P10029
ADP-RLGU24-N
GU24 Socket Adaptor
-
P10057
RT-4RL-BK
Black 4" Recessed Trim Fits 7567, 7578, 7580, 7198, 7093
-
P10060
RT-6RL-BK
Black 5"/6" Recessed Trim Fits 7199
-
P10058
RT-4RL-CH
Chrome 4" Recessed Trim Fits 7567, 7578, 7580, 7198, 7093
-
P10061
RT-6RL-CH
Chrome 5"/6" Recessed Trim Fits 7199
-
P10082
RT-4RL-CH-WH
Chrome & White 4" Recessed Trim Fits 7567, 7578, 7580, 7198, 7093
-
P10083
RT-6RL-CH-WH
Chrome & White 5"/6" Recessed Trim Fits 7199
-
P10059
RT-4RL-BZ
Bronze 4" Recessed Trim Fits 7198
-
P10062
RT-6RL-BZ
Bronze 5"/6" Recessed Trim Fits 7199
-
P10084
RTS-4RL-WH
White Square 4" Recessed Trim Fits 7567, 7578, 7580, 7198, 7093
-
P10085
RTS-6RL-WH
White Square 5"/6" Recessed Trim Fits 7199
-
