CSL

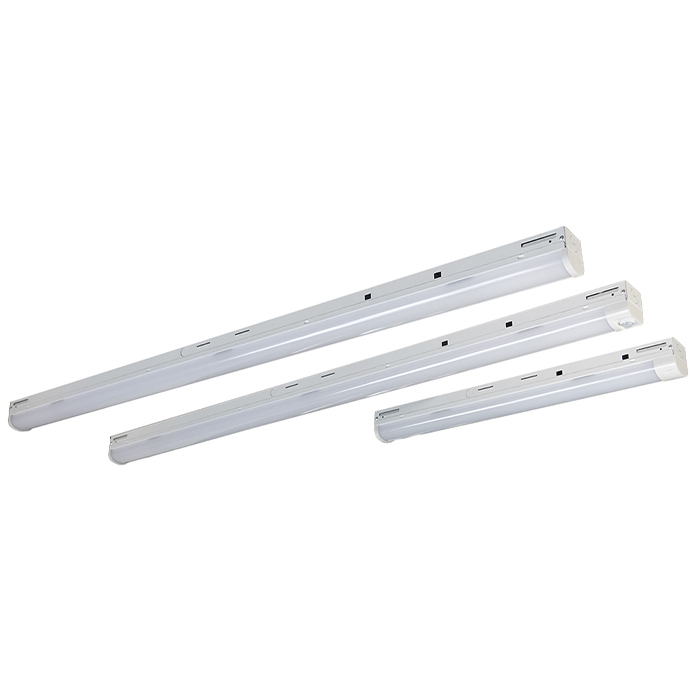

Commercial Strip Light -PIC Ready

The naturaLED® CSL is an energy-efficient LED commercial strip light designed to meet a variety of lighting needs. Ideal for new construction and multiple applications, it is perfect for warehouses, parking garages, stairwells, offices, hallways, and other industrial or commercial settings. This versatile fixture supports ceiling, wall, or cable mounting and delivers up to 9,180 lumens of bright, consistent illumination. Additionally, it offers compatibility with a PIC Plug-in Connector and an optional PIR Motion Sensor for enhanced functionality.

Spec Sheet Installation Guide

Category Commercial Strip Light
Wattage Selectable
CCT CCT3(35/40/50K)
Lumens 1,950~9,180
Voltage 120-277V

Categories: ,

Description

Item Code
Description
Wattage
CCT
Lumens
Equiv. Watt
Size
Wet/Damp
Motion Sensor
Emergency Driver
Listing
Spec
IES
9736
CSL2/23S/24FR/8C3
15W
19W
23W
3CCT
(35/40/50K)
1,950
2,485
2,990
2 x 17W T8
2.36"x24"
Damp
P10590
7336
15W

19W

23W
9737
CSL2/40S/48FR/8C3
28W
34W
40W
3CCT
(35/40/50K)
3,920
4,658
5,400
3 x 32W T8
2.36"x48"
Damp
P10590
7336
28W

34W

40W
9738
CSL2/68S/96FR/8C3
44W
58W
68W
3CCT
(35/40/50K)
6,248
8,004
9,180
5 x 32W T8
2.36"x96"
Damp
P10590
7334
44W

58W

68W
9739
CSL2/23S/24FR/8C3-PIC1
15W
19W
23W
3CCT
(35/40/50K)
1,950
2,485
2,990
2 x 17W T8
2.36"x24"
Damp
P10616
7336
15W

19W

23W
9740
CSL2/40S/48FR/8C3-PIC1
28W
34W
40W
3CCT
(35/40/50K)
3,920
4,658
5,400
3 x 32W T8
2.36"x48"
Damp
P10616
7336
28W

34W

40W
9741
CSL2/68S/96FR/8C3-PIC1
44W
58W
68W
3CCT
(35/40/50K)
6,248
8,004
9,180
5 x 32W T8
2.36"x96"
Damp
P10616
7334
44W

58W

68W

Additional information

Wattage

, ,

CCT

CRI

Color

Voltage

Dimmable

Beam Angle

Length

, ,

IP Rating

Photocell

Listings

,

Warranty

Download

Spec Sheet Installation Guide

Accessories

Item Code
Order Code
Description
Data Spec
7336
BAEM4-60BC/MV-A
120V ~ 277V 4W EM Driver for 4ft CSL only #9575
7334
BAEM15-48BC/MV-A
Emergency Backup Driver 120-277V for 8ft CSL only #9578
P10590
SEN-HD027VCR
Remote Programmable Microwave Motion Sensor 0-10V Bi-Level Internal 12V Low Voltage (Remote Programmer is required for programming)
-
P10323
SEN-HD06R
Remote Programmer for P10590
-
P10616
SEN-CSL-01-PIC1
PIR Motion Sensor, 0-10V, 12Vdc
-
P10316
SEN-BRI-RC100
Remote Programmer for P10616
-
