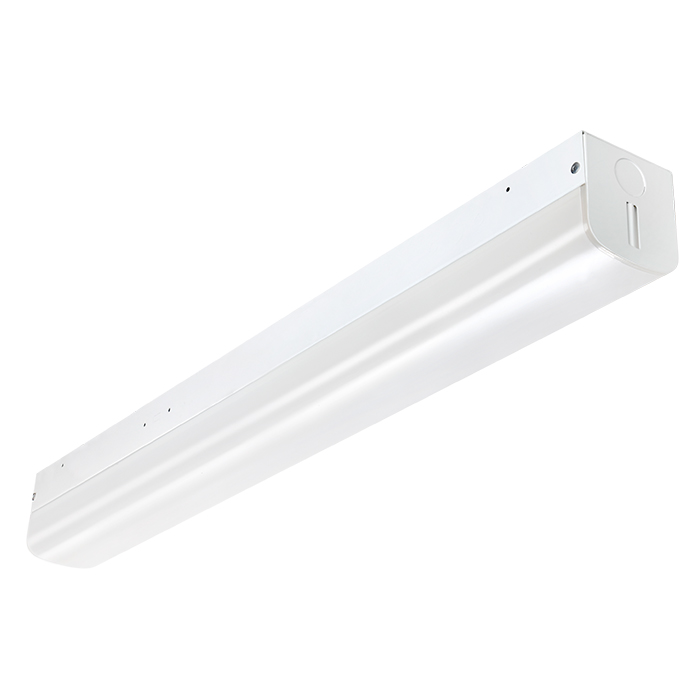

naturaLED® CSL provides the perfect solution for your lighting needs. The LED commercial strip light maximizes energy savings
and is designed for multiple applications including new construction. This fixture can be used for warehouses, parking garages, stairwells, offices, hallways, and many other applications in industrial and commercial. Our commercial strip light is very versatile, and efficient and is available up to 9,398 Lm, with an option motion sensor.
| Category | Commercial Strip Lights |
| Wattage | 22W, Selectable Wattages |
| Lumens | 2,878~9,398 |
| Voltage | 120-277V, 120-347V |
| CCT | CCT3 (35/40/50K) |
Item Code | Description | Wattage | CCT | Lumens | Equiv. Watt | Size | Wet/Damp | Motion Sensor | Emergency Driver | Listing | Spec | IES |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
22W | 3CCT (35/40/50K) | 2,878 | 2 x 17W T8 | 2.58"x24" | Damp | P10438 | - | |  |  |
||
22W 28W 36W 44W | 3CCT (35/40/50K) | 2,970 3,640 4,680 5,724 | 3 x 32W T8 | 2.58"x48" | Damp | P10438 | 7336 | | | |
||
44W 58W 68W | 3CCT (35/40/50K) | 6,248 7,540 9,398 | 5 x 32W T8 | 2.58"x92.82" | Damp | P10438 | 7334 | | | |
| Wattage | |
|---|---|
| CCT | |
| CRI | |
| Color | |
| Voltage | |
| Dimmable | |
| Beam Angle | |
| Length | |
| IP Rating | |
| Photocell | |
| Sensor | |
| Listings | |
| Warranty |
Image | Item Code | Order Code | Description | Data Spec |
|---|---|---|---|---|
 | 7336 | BAEM4-60BC/MV-A | 120V ~ 277V 4W EM Driver for 4ft CSL only #9575 | |
 | 7334 | BAEM15-48BC/MV-A | Emergency Backup Driver 120-277V for 8ft CSL only #9578 | |
 | P10438 | SEN-HB001VCR-1 | Remote Programmable Microwave Motion Sensor 0-10V Bi-Level Internal 12V Low Voltage | - |
 | P10323 | SEN-HD05R | Remote Programmer for P10438 | - |
 | P10010 | WG-2.5CSL/24/WH | Wire Guard for #9577 | - |
| P10011 | WG-2.5CSL/48/WH | Wire Guard for #9575 and #9578 (Requires 2 pcs for #9578) | - |
