LAL

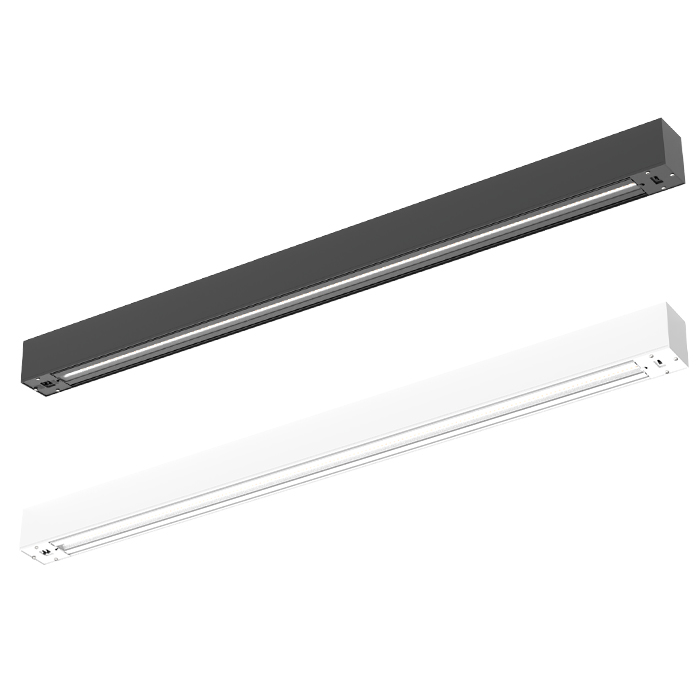

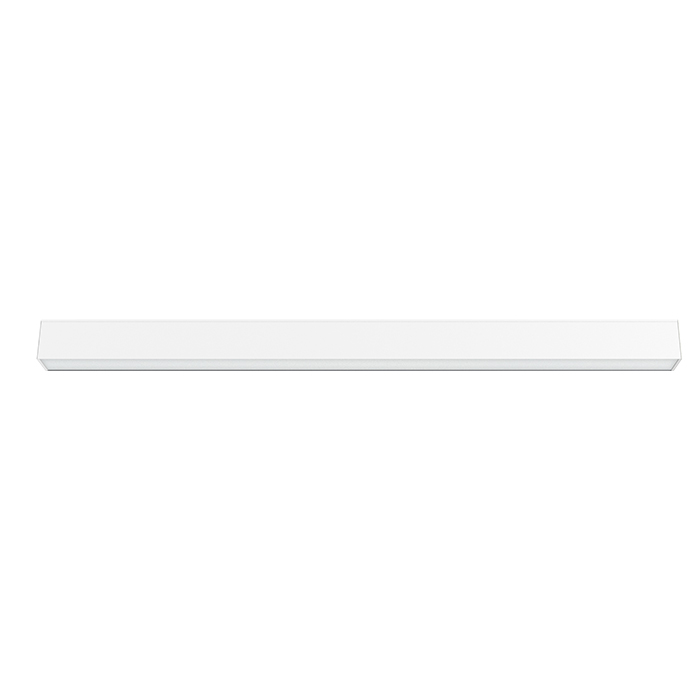

Linear Architectural Light with Selectable Wattages and CCT5

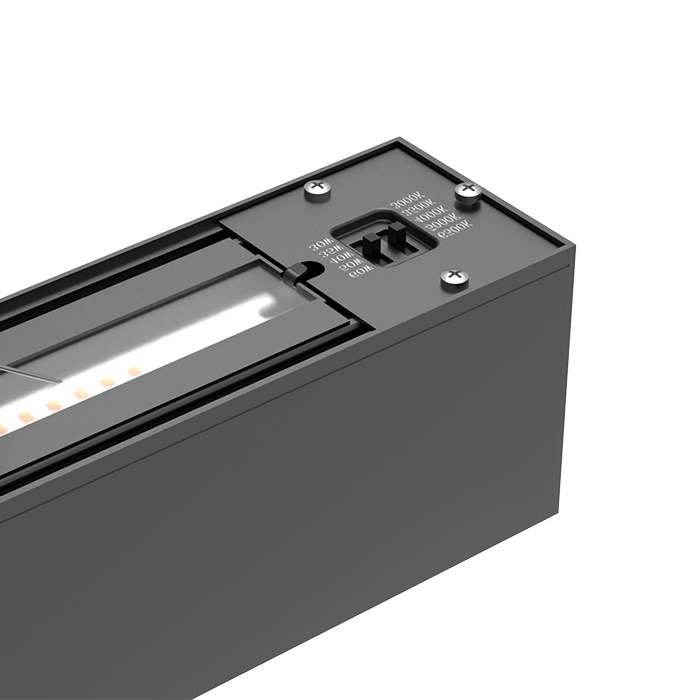

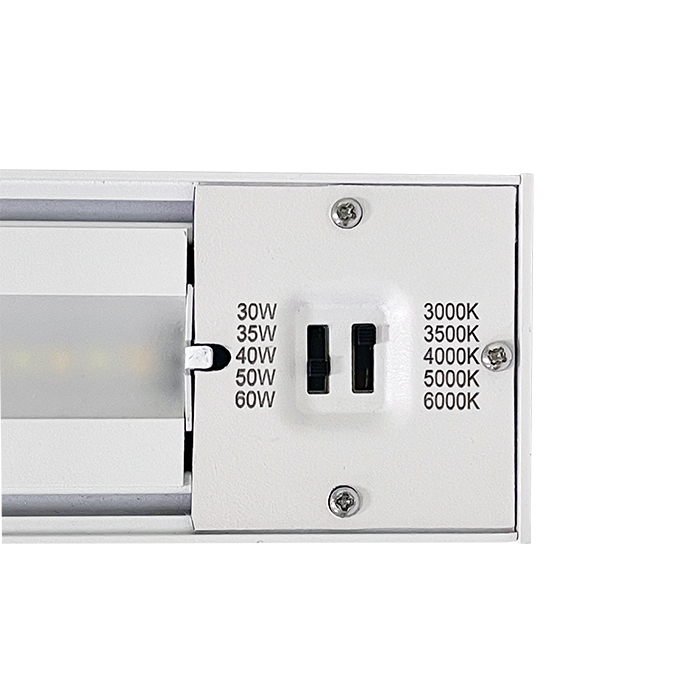

The naturaLED selectable wattage LED Linear Fixture is a versatile architectural suspension light, perfect for commercial environments such as offices, healthcare facilities, and hotels. The Linear Architectural Light (LAL) features 5-color select (5CCT), 0-10V dimming, and a voltage range of 120-347V. Designed for downward light distribution, it also offers optional upper light modules and joint connectors for multiple linkages. Installation is flexible, allowing for surface, recessed, wall mounting, or suspension with the included hanging kit. This fixture ensures uniform light distribution, making it an excellent choice for various commercial applications.

Spec Sheet Installation Guide

Category Linear Architectural
Wattage Selectable
CCT CCT5(30/35/40/50/60K)
Lumens 1,950~7,800
Voltage 120-347V

Categories: ,

Description

Item Code
Description
Wattage
CCT
Lumens
Equiv. Watt
Size
Emergency Driver
Listing
Spec
IES
9548
FXLAL30SW/24FR/8CCT5/WH/347
15W
20W
24W
27W
30W
5CCT
(30/35/
40/50/65K)
1,890
2,520
3,024
3,402
3,780
90-100W
2.56"x26"
7336
-
9549
FXLAL60SW/48FR/8CCT5/WH/347
15W
20W
24W
27W
30W
5CCT
(30/35/
40/50/65K)
3,780
4,410
5,040
6,300
7,560
100-300W
2.56"x48"
7336
-
9551
FXLAL30SW/24FR/8CCT5/BK/347
15W
20W
24W
27W
30W
5CCT
(30/35/
40/50/65K)
1,890
2,520
3,024
3,402
3,780
90-100W
2.56"x26"
7336
-
9552
FXLAL60SW/48FR/8CCT5/BK/347
15W
20W
24W
27W
30W
5CCT
(30/35/
40/50/65K)
3,780
4,410
5,040
6,300
7,560
100-300W
2.56"x48"
7336
-

Additional information

Wattage

, ,

CCT

CRI

Color

,

Voltage

Dimmable

Beam Angle

Length

,

IP Rating

Photocell

Sensor

Listings

,

Warranty

Download

Spec Sheet Installation Guide

Video

Accessories

Item Code
Order Code
Description
Data Spec
P10582
MT-LAL/WM/WH
Wall Mount Clips - White (2pcs)
P10583
MT-LAL/WM/BK
Wall Mount Clips - Black (2pcs)
P10584
MT-LAL/CM
Ceiling Mount Clips (2pcs)
P10601
MT-LAL/RM/2FT/WH
Recessed Mount Kit for Drop-In Ceiling / T-Bar / Dry Wall Ceiling (2FT)
P10603
MT-LAL/RM/4FT/WH
Recessed Mount Kit for Drop-In Ceiling / T-Bar / Dry Wall Ceiling (4FT)
P10590
SEN-HD027VCR
Remote Programmable Microwave Motion Sensor 0-10V Bi-Level Internal 12V Low Voltage (Remote Programmer is required to program it)
P10323
SEN-HD06R
Remote Programmer for P10590
P10548
LM-2.5LAL/24/WH
Upper Light Bar Module - 24" White for 9548
P10549
LM-2.5LAL/48/WH
Upper Light Bar Module - 48" White for 9549
-
P10550
LM-2.5LAL/24/BK
Upper Light Bar Module - 24" Black for 9551
P10551
LM-2.5LAL/48/BK
Upper Light Bar Module - 48" Black for 9552
-
P10547
CNTR-2.5LAL/KIT
Joint Connector - Extension Kit
-
P10552
CNTR-2.5LAL/L/WH
Joint Connector - L Shape White
-
P10553
CNTR-2.5LAL/T/WH
Joint Connector - T Shape White
-
P10554
CNTR-2.5LAL/X/WH
Joint Connector - X Shape White
-
P10555
CNTR-2.5LAL/L/BK
Joint Connector - L Shape Black
-
P10556
CNTR-2.5LAL/T/BK
Joint Connector - T Shape Black
-
P10557
CNTR-2.5LAL/X/BK
Joint Connector - X Shape Black
-
