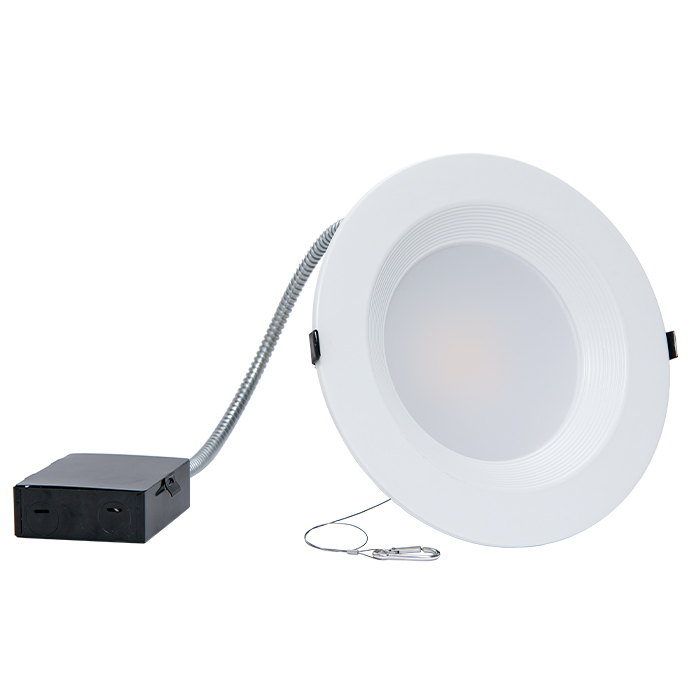

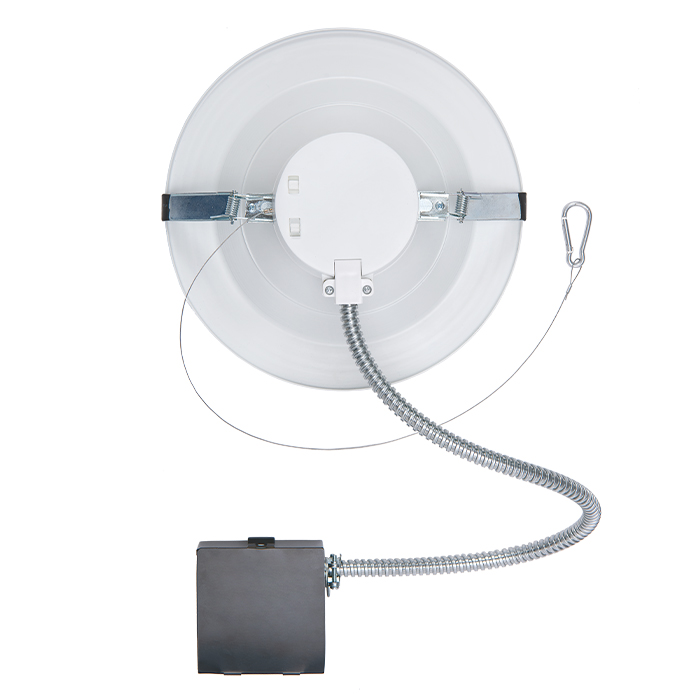

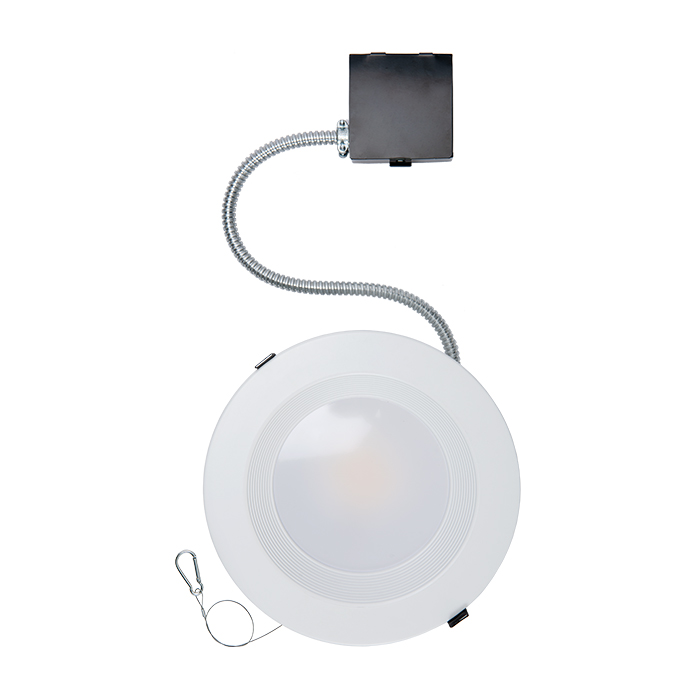

The naturaLED® Commercial Recessed Light (CRL) is a commercial-grade downlight fixture with selectable CCT3 color temperatures. This downlight provides an easy replacement for incandescent and fluorescent recessed lamps. Designed for energy efficiency, it fits the industry’s popular 4″, 6”, 8”, and 10” recessed downlight fixtures. Featuring simple installation, adjustable wattages, and a light output of up to 2,700 lumens, it offers a versatile and efficient lighting solution.
| Category | Commercial Recessed Ceiling Mount |
| Wattage | Selectable |
| CCT | CCT3(30/40/50K) |
| Lumens | 574～2，700 |
| Voltage | 120-277V |
Item Code | Description | Wattage | CCT | Lumens | Equiv. Watt | Size | Wet/ Damp | Spec | IES |
|---|---|---|---|---|---|---|---|---|---|
9471 | LED4CRL12SW-96L9CCT3/MV | 7W 9W 12W | 3CCT (30/40/50K) | 574 738 984 | 60-150W | 4" | Wet |  |  |
9466 | LED6CRL15SW-127L9CCT3/MV | 9W 12W 15W | 3CCT (30/40/50K) | 760 1,020 1,275 | 60-150W | 6" | Wet | | |
9467 | LED8CRL27SW-243L9CCT3/MV | 16W 21W 27W | 3CCT (30/40/50K) | 1,440 1,890 2,430 | 100-200W | 8" | Wet | | |
9468 | LED10CRL30SW-270L9CCT3/MV | 18W 23W 30W | 3CCT (30/40/50K) | 1,620 2,070 2,700 | 150-250W | 10" | Wet | | |
| Wattage | |
|---|---|
| CCT | |
| CRI | |
| Color | |
| Voltage | |
| Dimmable | |
| Diameter | |
| Beam Angle | |
| IP Rating | |
| Photocell | |
| Sensor | |
| Listings | |
| Warranty |
Image | Item Code | Order Code | Description | Data Spec |
|---|---|---|---|---|
 | 7337 | BAEM25-170BC/347-C | 25W Micro Inverter 120-347V with 12" Conduit | |
 | P10309 | PLT-NC/6DL | 6" Round Pre-Mounting Plate | |
 | P10318 | PLT-NC/8DL-LONG | 8" Round Pre-Mounting Long Plate | - |
 | P10375 | PLT-NC/DL/3-4-6-8 | 3/4/6/8” Disk Light Universal Plate | |
 | P10426 | MT-TBAR-EM-2ft | T-Grid Hanger for Emergency Driver | - |
