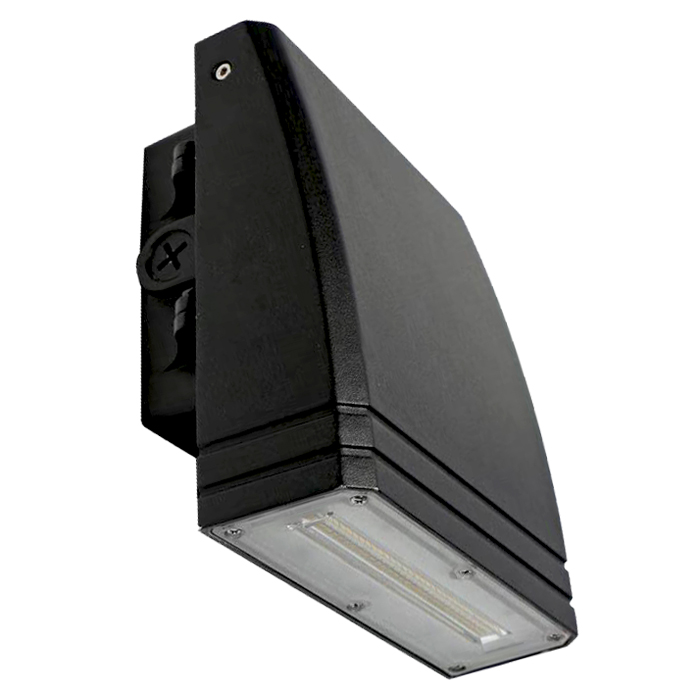

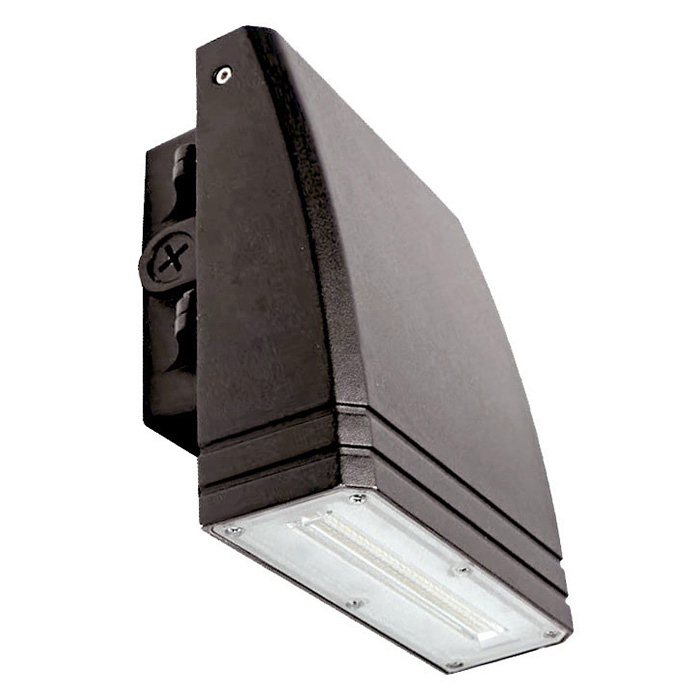

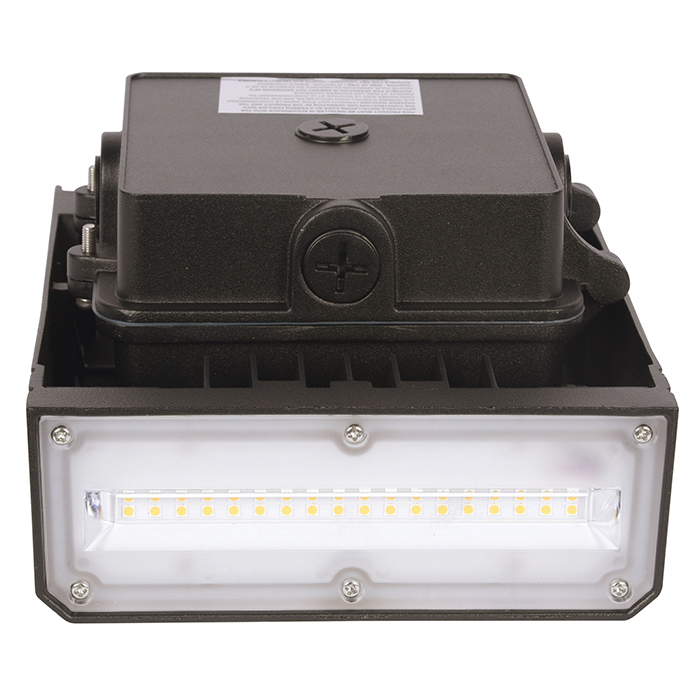

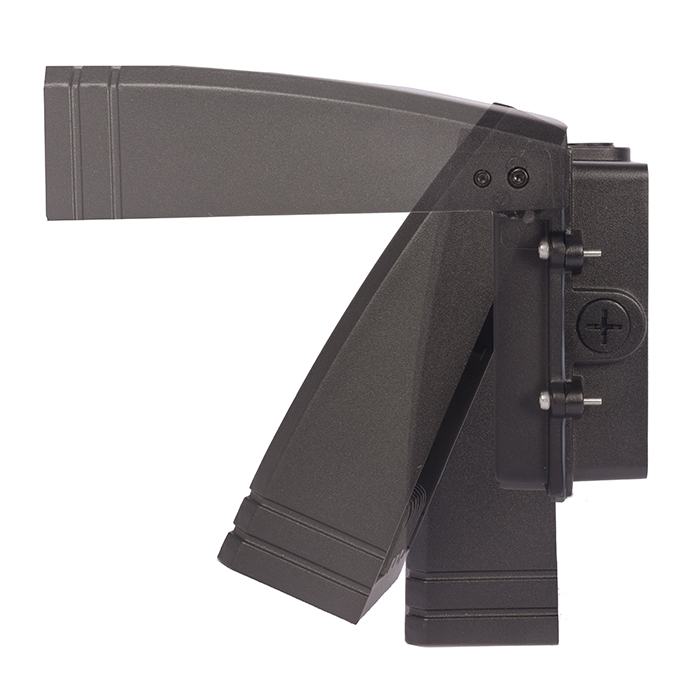

The naturaLED® slim, low-profile cutoff wall pack features a sleek, contemporary design and is constructed from high-quality, precision-engineered die-cast aluminum, providing bright and crisp illumination. Designed for ease of installation, it includes an adjustable angle and a hinged junction box for a seamless setup. For added versatility, optional mounting accessories such as a ¾” knuckle-mount, adjustable swivel bracket, or slip fitter are available to accommodate various applications. The SWP is ideal for landscapes, wall or surface mounting, low-level pathways, apartment buildings, schools, and multi-use facilities.
| Category | Slim Wall Packs |
| Wattage | 15W, 28W, 45W |
| CCT | 4000K, 5000K |
| Lumens | 2,062~5,680 |
| Voltage | 120-277V |
Item Code | Description | Wattage | CCT | Lumens | Equiv. Watt | Color | Dimmable | Spec | IES |
|---|---|---|---|---|---|---|---|---|---|
9302 | LED-FXSWP15/850/DB | 15 | 5000K | 2,062 | 100W | Bronze | - |  |  |
9304 | LED-FXSWP28/850/DB | 28 | 5000K | 3,513 | 175W | Bronze | 1-10V | | |
9308 | LED-FXSWP15/850/BK | 15 | 5000K | 2,062 | 100W | Black | - | | |
9309 | LED-FXSWP28/840/BK | 28 | 4000K | 3,418 | 175W | Black | 1-10V | | |
9310 | LED-FXSWP28/850/BK | 28 | 5000K | 3,513 | 175W | Black | 1-10V | | |
9312 | LED-FXSWP45/850/BK | 45 | 5000K | 5,680 | 250W | Black | 1-10V | | |
| Weight | 5.45 lbs |
|---|---|
| Dimensions | 4 × 6.6 × 7.87 in |
| Wattage | |
| CCT | |
| Color | |
| Voltage | |
| Dimmable | |
| IP Rating | |
| Photocell | |
| Listings | |
| Warranty |
Image | Item Code | Order Code | Description |
|---|---|---|---|

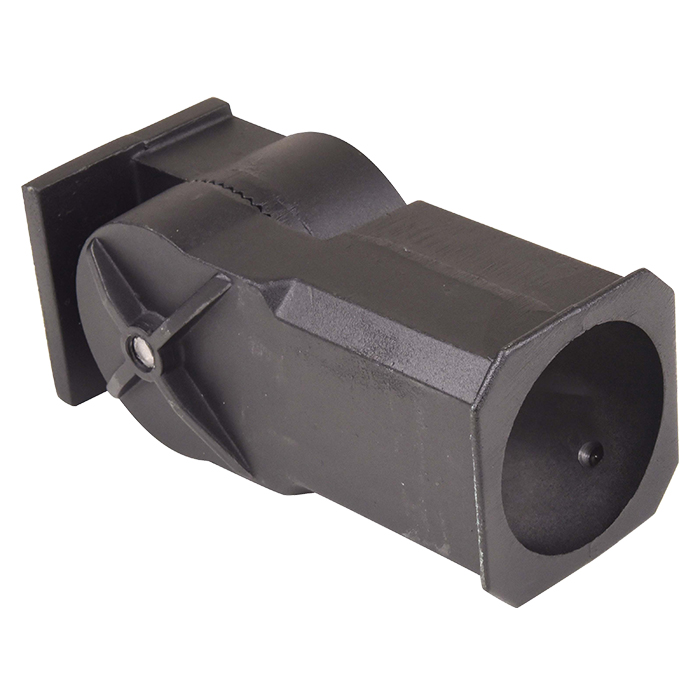

 | P10076 | MT-SF-SWP/DB | Slip Fitter - Bronze |
| P10007 | MT-SF-SWP/BK | Slip Fitter - Black |

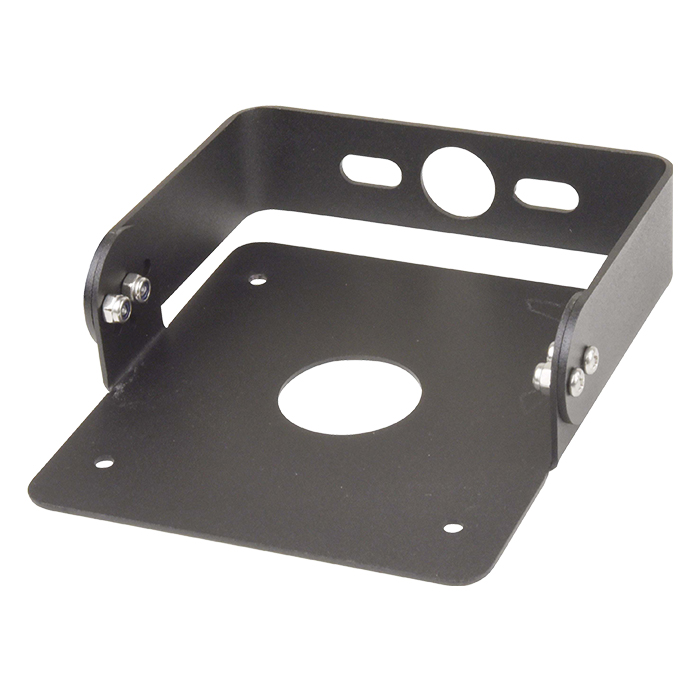

 | P10074 | MT-SB-SWP/DB | Swivel Bracket - Bronze |
| P10005 | MT-SB-SWP/BK | Swivel Bracket - Black |

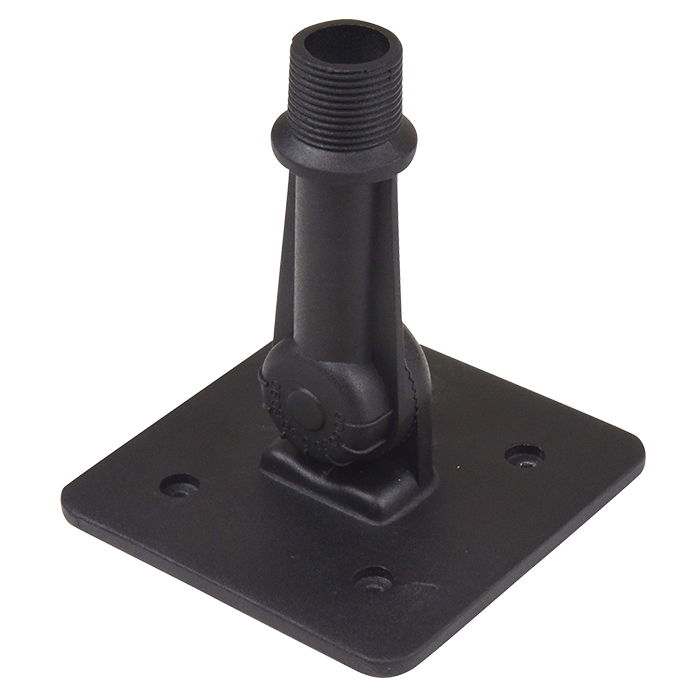

 | P10075 | MT-KNC-SWP/DB | 3/4” NPT Knuckle - Bronze |
| P10006 | MT-KNC-SWP/BK | 3/4” NPT Knuckle - Black |
 | P10036 | SEN-PHO-BT-MT/MV | Button Photocell 120-277V |
