SCL
Sports Court Lighting

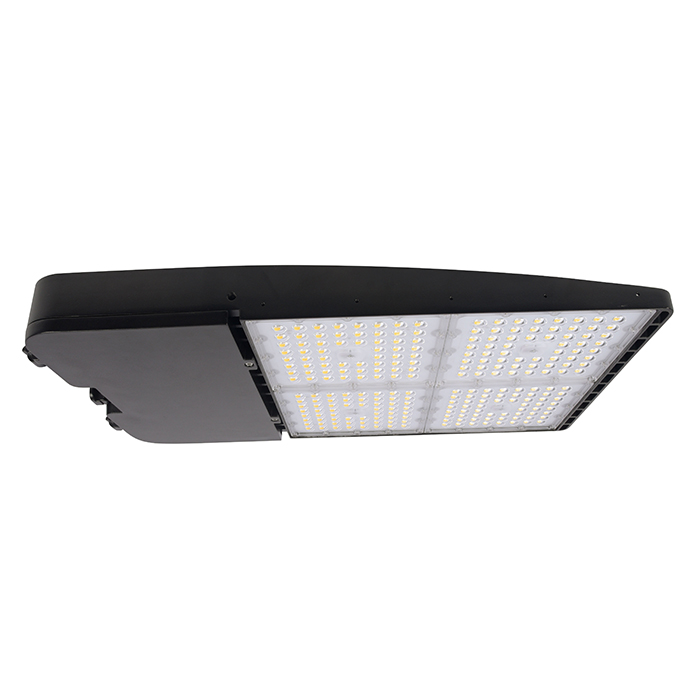

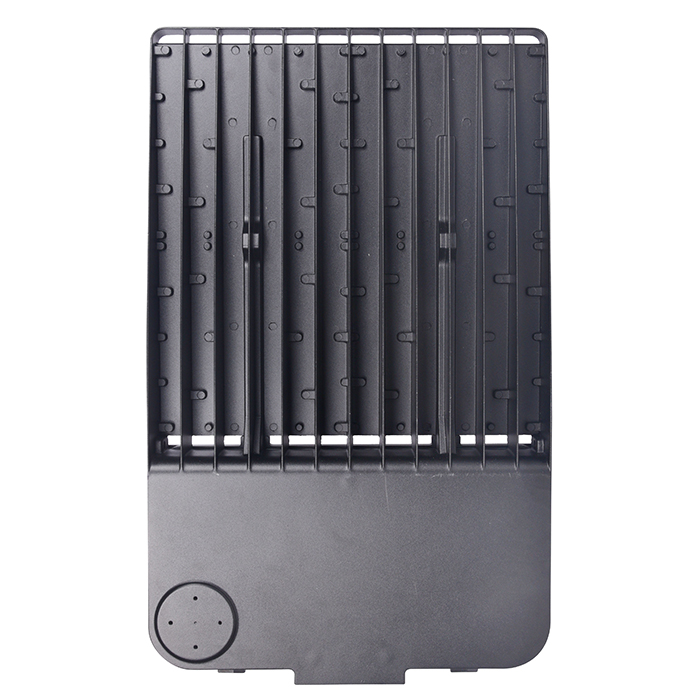

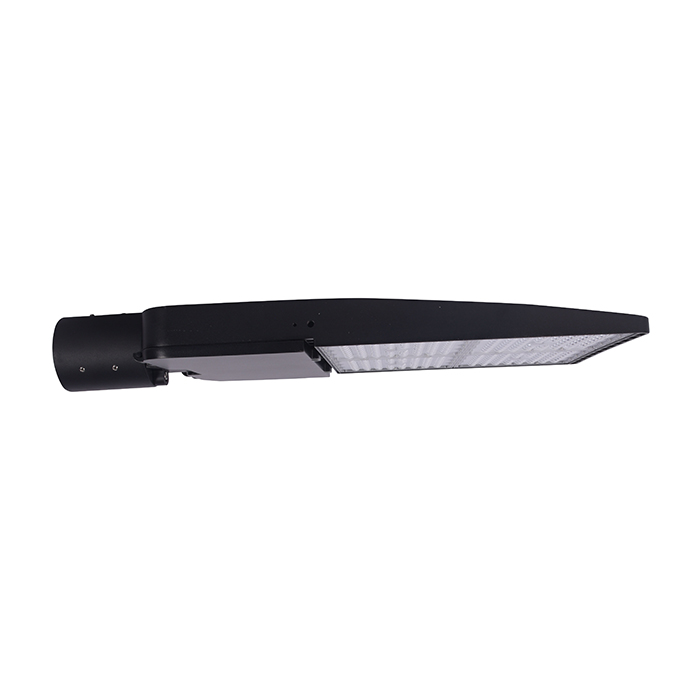

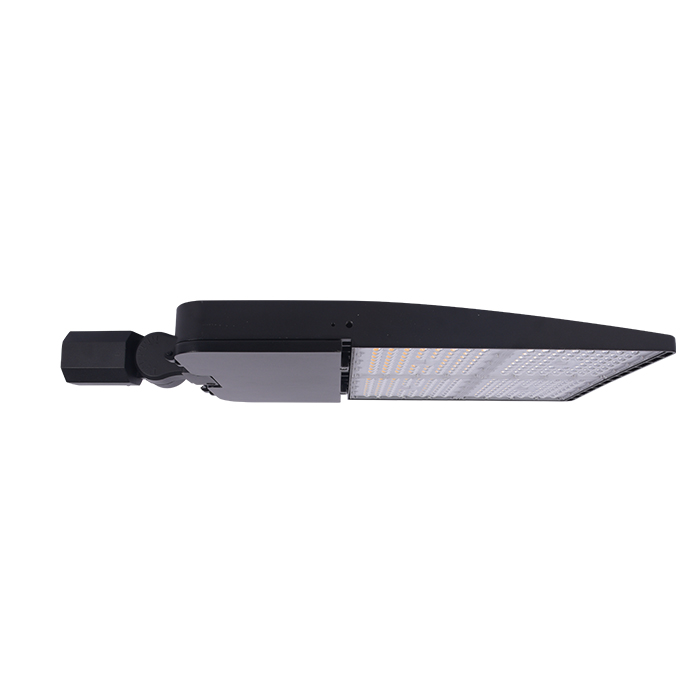

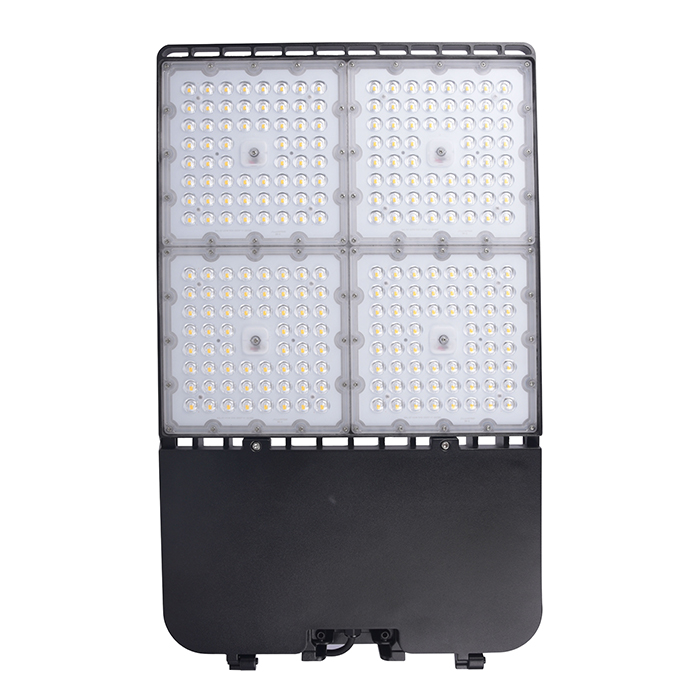

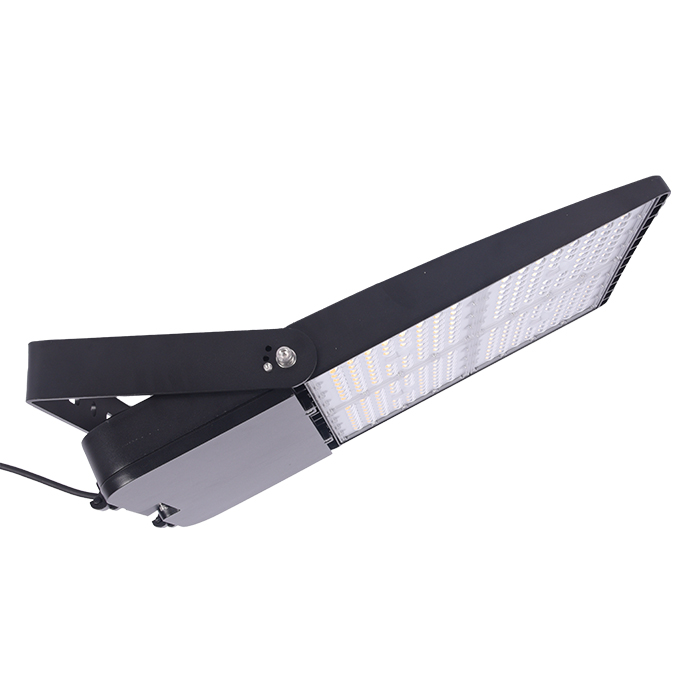

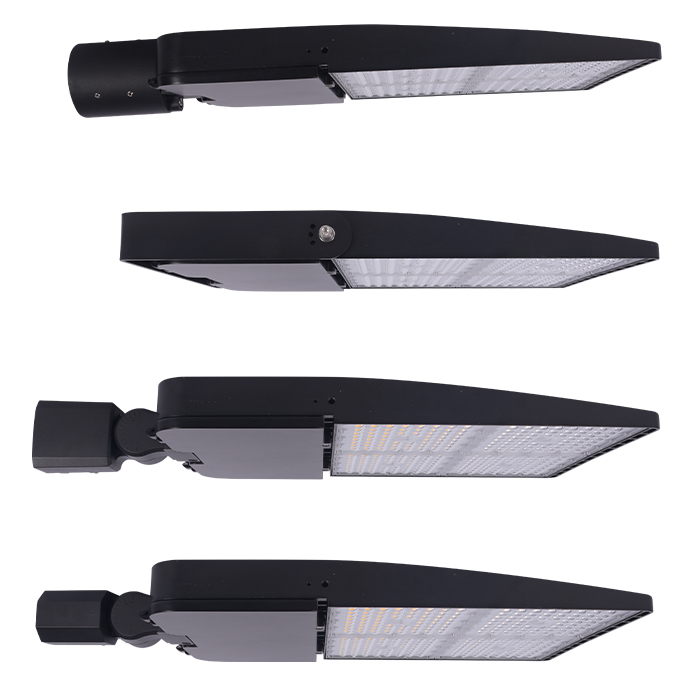

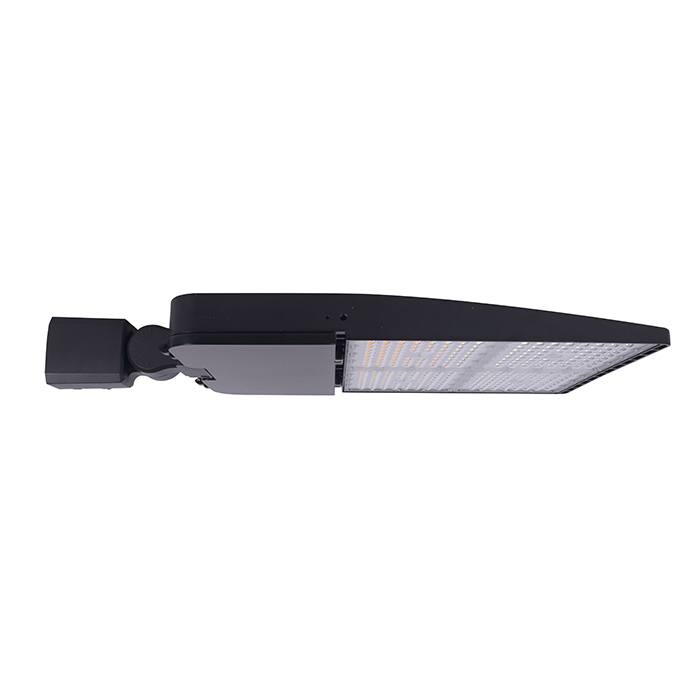

The naturaLED® Slim Area Light Tennis is built with a durable die-cast aluminum housing and features superior thermal design, making it an ideal lighting solution for tennis courts and walkways. It offers consistent, uniform color with a variety of wattage options to replace up to 1500W HID fixtures. Our lights are DLC Premium certified and IP66 rated, with four mounting options available: Pole Mount, Slip Fitter, Yoke Mount, and more. Integrated autonomous and photocell motion sensors are available as optional upgrades to meet your specific needs. This fixture can save up to 85% in energy costs while reducing maintenance expenses for labor, lamps, and ballast replacements.

Spec Sheet Installation Guide

Category Sports Court Lights
Wattage Selectable, 420W
CCT 4000K
Lumens 12,649~63,879
Voltage 120-277V

Categories: ,

Description

Item Code
Description
Wattage
CCT
Lumens
Equiv. Watt
Z10 Receptacle
Spec
IES
5209
FXSCL150SW/8CCT3/BK/TT-Z10
90W
120W
150W
3CCT
(30/40/50K)
12,600
18,000
21,000
400W
-
-
5210
FXSCL340SW/8CCT3/BK/TT-Z10
200W
270W
340W
3CCT
(30/40/50K)
28,000
37,800
47,600
1000-1500W
-
-
5211
FXSCL450SW/8CCT3/BK/TT-Z10
350W
400W
450W
3CCT
(30/40/50K)
50,750
58,000
65,250
1000-1500W
-
-
5204
FXSCL150SW/8CCT3/GN/TT-Z10
90W
120W
150W
3CCT
(30/40/50K)
12,600
18,000
21,000
400W
-
-
5205
FXSCL340SW/8CCT3/GN/TT-Z10
200W
270W
340W
3CCT
(30/40/50K)
28,000
37,800
47,600
1000-1500W
-
-
5206
FXSCL450SW/8CCT3/GN/TT-Z10
350W
400W
450W
3CCT
(30/40/50K)
50,750
58,000
65,250
1000-1500W
-
-
5207
FXSCL600SW/840/GN/TT-Z10
400W
500W
600W
4000K
60,000
75,000
90,000
1000-1500W
-
-
5208
FXSCL600SW/850/GN/TT-Z10
400W
500W
600W
5000K
60,000
75,000
90,000
1000-1500W
-
-
5200
FXSCL150SW/840/BK/TT
90W
120W
150W
4000K
12,649
16,800
21,118
250-400W
-
90W

120W

150W
5201
FXSCL320SW/840/BK/TT
180W
240W
320W
4000K
25,200
33,600
44,800
400-1000W
-
180W

240W

320W
5202
FXSCL400SW/840/BK/TT-Z10
240W
320W
400W
4000K
36,000
48,000
60,000
1000-1500W
-
240W

320W

400W
5203
FXSCL600SW/840/BK/TT
400W
500W
600W
4000K
60,000
75,000
89,834
1000-1500W
-
400W

500W

600W
9594
FXSAL400/840/BK/T4
420W
4000K
63,749
1000-1500W
-
9593
FXSAL400/840/BK/TT
420W
4000K
63,879
1000-1500W
-

Additional information

Wattage

, , , , ,

CCT

CRI

Color

Voltage

Dimmable

IP Rating

Photocell

Sensor

Listings

,

Warranty

Download

Spec Sheet Installation Guide

Video

Accessories

Item Code
Order Code
Description
Data Spec
K141030
REC3PLK/PHO
Twist Lock Photocell & Receptacle 120-277V 3 Prong
-
P10371
SEN-BRI619
PIR Motion/Photocell 0-10V Bi-Level
Control IP66 12-24V IR Sensor
-
P10316
SEN-BRI-RC100
Remote Programmer for P10371
-
P10472
MT-SAL/YK16/BK
Mount - SAL400 Yoke Mount 16" Black
-
P10468
MT-AL/PM6/BK
Mount - Area Light Pole Mount 6" Black
-
P10470
MT-AL/SF/BK
Mount - Area Light Slip Fitter Black
-
P10506
MT-AL/RSF/1.5x3.5/BK
Mount -Rectangle Slip Fitter 1.5"x3.5" for CAS and CAD
P10526
MT-TAS/5RT-5ft/BK
5' Single Arm for Court Lighting. Fit to 5" Round Pole Top - Black
P10527
MT-TAD70/5RT-5ft/BK
5' 70° Double Arms for Court Lighting. Fit to 5" Round Pole Top - Black
P10528
MT-TAD90/5RT-5ft/BK
5' 90° Double Arms for Court Lighting. Fit to 5" Round Pole Top - Black
P10529
MT-TAD180/5RT-5ft/BK
5' 180° Double Arms for Court Lighting. Fit to 5" Round Pole Top - Black
P10530
MT-TAQ90/5RT-5ft/BK
5' 90° Quad Arms for Court Lighting. Fit to 5" Round Pole Top - Black
P10509
MT-4SFA/BK
Mount - Area Light Slip Fitter Adaptor for 4" Diameter Single Davit Arm
P10510
MT-3.5RTDAV4/38in/BK
Mount - 4" Diameter Single Davit Arm (38") for 3.5" Pole Top
P10511
MT-4RTDAV3.5-2180/BK
Mount - Twin 4" Diameter Davit Arm Adaptor for 4" Pole Top
P10512
MT-4RTDAV3.5-490/BK
Mount - Quad 4"Diameter Davit Arm Adaptor for 4" Pole Top
P10450
LENS-SAL-L-TT
Type Tennis Lens for SAL400W (4 per fixture)
-
P10053
SEN-PHO-LK-MT-SRT
Twist Lock Photocell Shorting Cap 120-480V 3 Prong
-
P10450
LENS-SAL-L-TT
Type Tennis Lens for SAL400W
(4 per fixture)
-
P10451
LENS-SAL-L-T4
Type 4 Lens for SAL400W
(4 per fixture)
-
P10141
REC3PLK
Twist Lock Photocell & Receptacle
Mount 120-480V 3 Prong
-
P10142
REC7PLK
Twist Lock Photocell & Receptacle
Mount 120-480V 7 Prong
-
P10389
SPD-L-10KV-277
Surge Protection 10KV 120-277V
P10390
SPD-L-20KV-277
Surge Protection 20KV 120-277V
P10391
SPD-L-20KV-480
Surge Protection 20KV 347-480V
