CAL

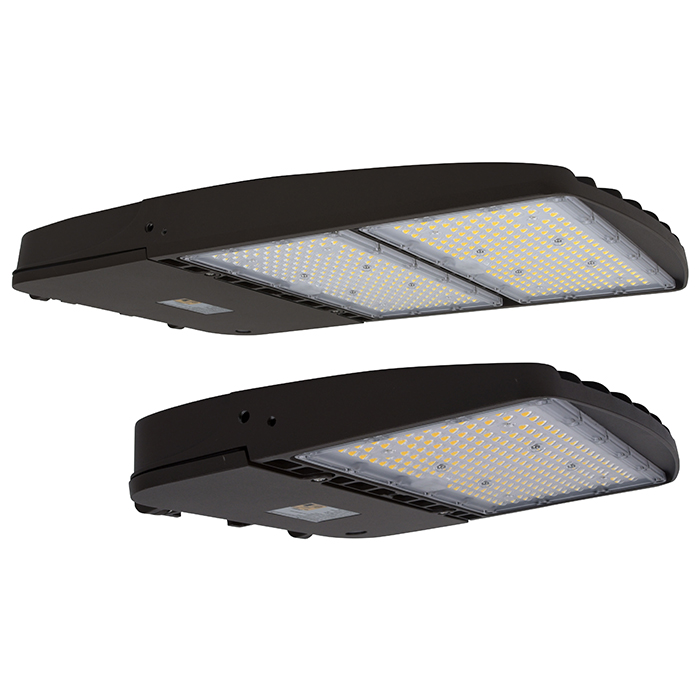

Compact Area Lights

The naturaLED® Compact Area Light features a durable die-cast aluminum housing and efficient thermal design, ideal for parking lots, streets, walkways, and signage. It replaces up to 1500W HID fixtures with uniform illumination. DLC Premium certified and IP65 rated, it offers three mounting options: Pole Mount, Slip Fitter, and Yoke Mount. Compatible with photocell sensors, receptacles, and optional IR motion sensors.

Spec Sheet Installation Guide

Category Area Wall Lights
Wattage Single
CCT 4000K,5000K
Lumens 14,000~42,300
Voltage 120-277V, 277-480V, 120-347V

Categories: ,

Description

Item Code
Description
Wattage
CCT
Lumens
Equiv. Watt
Size
Voltage
Photocell
Motion Sensor
Listing
Spec
IES
9492
FXCAL100/840/BZ/3S
100W
4000K
14,000
250-400W
12.4" x 13.14"
1-10V
K141030
P10387
9493
FXCAL100/850/BZ/3S
100W
5000K
14,100
250-400W
12.4" x 13.14"
1-10V
K141030
P10387
9494
FXCAL150/840/BZ/3S
150W
4000K
21,000
400-575W
12.4" x 13.14"
1-10V
K141030
P10387
9495
FXCAL150/850/BZ/3S
150W
5000K
21,150
400-575W
12.4" x 13.14"
1-10V
K141030
P10387
9496
FXCAL240/840/BZ/3S
240W
4000K
33,600
750-1000W
12.4" x 22.72"
1-10V
K141030
P10387
9497
FXCAL240/850/BZ/3S
240W
5000K
33,840
750-1000W
12.4" x 22.72"
1-10V
K141030
P10387
9498
FXCAL300/840/BZ/3S
300W
4000K
42,000
1000-1500W
12.4" x 22.72"
1-10V
K141030
P10387
9499
FXCAL300/850/BZ/3S
300W
5000K
42,300
1000-1500W
12.4" x 22.72"
1-10V
K141030
P10387
9528
FXCAL150/840/BZ/3S/480
150W
4000K
21,000
400-575W
12.4" x 13.14"
0-10V
K141223
P10371
9529
FXCAL150/850/BZ/3S/480
150W
5000K
21,000
400-575W
12.4" x 13.14"
0-10V
K141223
P10371
9518
FXCAL300/840/BZ/3S/480
300W
4000K
42,000
1000-1500W
12.4" x 22.72"
0-10V
K141223
P10371
-
9519
FXCAL300/850/BZ/3S/480
300W
5000K
42,000
1000-1500W
12.4" x 22.72"
0-10V
K141223
P10371
-
9512
FXCAL100/840/BZ/3S/347
100W
4000K
14,000
250-400W
12.5"x13.25"
0-10V
-
-
-
-
9513
FXCAL100/850/BZ/3S/347
100W
5000K
14,000
250-400W
12.5"x13.25"
0-10V
-
-
-
-
9514
FXCAL150/840/BZ/3S/347
150W
4000K
21,000
400-575W
12.5"x13.25"
0-10V
-
-
-
-
9515
FXCAL150/850/BZ/3S/347
150W
5000K
21,000
400-575W
12.5"x13.25"
0-10V
-
-
-
-
9516
FXCAL300/840/BZ/3S/347
300W
4000K
42,000
1000-1500W
12.5"x22.75"
0-10V
-
-
-
-
9517
FXCAL300/850/BZ/3S/347
300W
5000K
42,000
1000-1500W
12.5"x22.75"
0-10V
-
-
-
-

Additional information

Wattage

,

CCT

,

Color

Voltage

, ,

Dimmable

,

IP Rating

Photocell

Listings

,

Download

Spec Sheet Installation Guide

Video



Accessories

Item Code
Order Code
Description
Data Spec
P10365
MT-CAL/PM8/BZ
8” Pole Mount Arm for CAL
-
P10366
MT-CAL/SF/BZ
Slip Fitter Mount for CAL)
P10367
MT-CAL/YK13/BZ
13" Yoke Mount for Compact Area Light - Bronze
K473478
MT-AL/WM/BZ
Yoke Mount 13” for CAL)
-
P10053
SEN-PHO-LK-MT-SRT
Twist Lock Photocell Shorting Cap
120-480V 3 Prong
-
K141030
REC3PLK/PHO
Twist Lock Photocell & Receptacle
120-277V 3 Prong
-
P10405
GSFB-CAL/BZ
Requires 1pc for 100/150W,
Recommend 2 pcs for 240/300W
P10141
REC3PLK
Twist Lock Photocell & Receptacle
Mount 120-480V 3 Prong
-
P10142
REC7PLK
Twist Lock Photocell & Receptacle
Mount 120-480V 7 Prong
-
P10398
LENS-CAL-IV
Type 4 Lens for Compact Area Light 100W and 150W (240W and 300W requires 2 per fixture)
P10399
LENS-CAL-V
Type 5 Lens for Compact Area Light 100W and 150W (240W and 300W requires 2 per fixture)
P10391
SPD-L-20KV-480
Surge Protection 20KV 347-480V
P10387
SEN-BRI823-B-D
PIR Motion/ Photocell 0-10V Bi-Level
Control Internal 120-277V
P10371
SEN-BRI619
Sensor Motion 0-10V IP66 Internal
12-24V IR head. *Compatible with
347V & 480V models only.
P10316
SEN-BRI-RC100
Remote Programmer for
P10371, P10387
