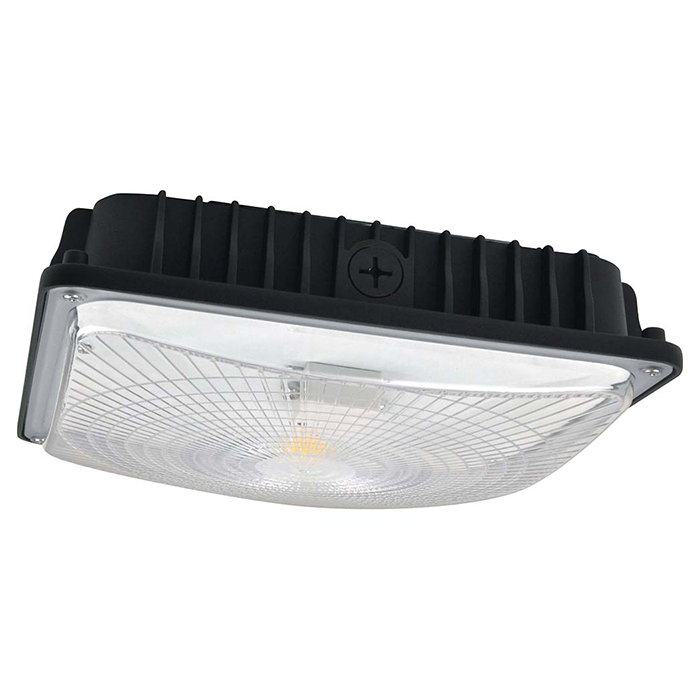

10″ Slim Canopy

naturaLED® SCM IP65-rated fixtures come in an aesthetically pleasing construction, low-profile design with die-cast aluminum housing, and shatter-resistant polycarbonate prismatic lens. In addition, they are dust-proof and include ½” threaded conduit entrances on each side.  The SCM supports both pendant mounting and direct surface mounting ceiling or wall. Pendant mounting accepts a 3/4” NPT thread and can be mounted to multiple types of J-boxes


CategoryCanopy
Wattage28W, 42W, 59W
Lumens3,640~7,695
Voltage120-277V
CCT4000K, 5000K

SPEC SHEET BROCHURE

Categories: , ,

Description

Item Code
Description
Watt
CCT
Lumens
Equiv. Wattage
Color
Spec
IES
9418
FX10SCM42/840/BK
42W
4000K
5,517
175W
Black
9419
FX10SCM42/850/BK
42W
5000K
5.638
175W
Black
9422
FX10SCM59/840/BK
59W
4000K
7,695
250W
Black
9423
FX10SCM59/850/BK
59W
5000K
7,845
250W
Black
9416
FX10SCM28/840/WH
28W
4000K
3,640
150W
White
9420
FX10SCM42/840/WH
42W
4000K
5,517
175W
White
9421
FX10SCM42/850/WH
42W
5000K
5,638
175W
White
9424
FX10SCM59/840/WH
59W
4000K
7,695
250W
White
9432
FX10SCM28/840/BK-SEN
28W
4000K
3,640
150W
Black
9433
FX10SCM28/850/BK-SEN
28W
5000K
3,640
150W
Black
9434
FX10SCM42/840/BK-SEN
42W
4000K
5,517
175W
Black
9436
FX10SCM59/840/BK-SEN
59W
4000K
7,695
250W
Black

Additional information

Weight 5.1 lbs
Dimensions 9.48 × 9.48 × 3.50 in
Wattage

,

CCT

,

Color

,

Voltage

Dimmable

IP Rating

Photocell

Listings

,

Warranty

Download

SPEC SHEET INSTALLATION BROCHURE

Video





Accessories

Item Code
Order Code
Description
P10234
SEN-MC605V-D
Motion Sensor
0-10V
-
7336
BAEM4-60BC/MV-A
4W CEC Compliant LED Emergency Driver
P10036
SEN-PHO-BT-MT/MV
Button Photocell
120-277V
-
P10195
PLT-SCM/14X14/WH
14"x14" Beauty Plate
P10196
PLT-SCM/24X24/WH
24"x24" Beauty Plate
P10125
LENS-SCM/FR9X9
Frosted Lens for 10"
-
P10126
LENS-SCM/DR9X9
Drop Lens for 10"
-
P10389
SPD-L-10KV-277
Surge Protection 10KV
120-277V
P10390
SPD-L-20KV-277
Surge Protection 20KV
120-277V
P10391
SPD-L-20KV-480
Surge Protection 20KV
347-480V
