Description
Item Number | Description | Watt | CCT | Lumens | Equiv. Watt. | Listings | Spec | IES |
---|---|---|---|---|---|---|---|---|
82W | 4000K | 10,062 | 400W | ![]() | ||||
82W | 5000K | 10,259 | 400W | ![]() | ||||
100W | 4000K | 12,795 | >400W | ![]() | ||||
100W | 5000K | 13,022 | >400W | ![]() |

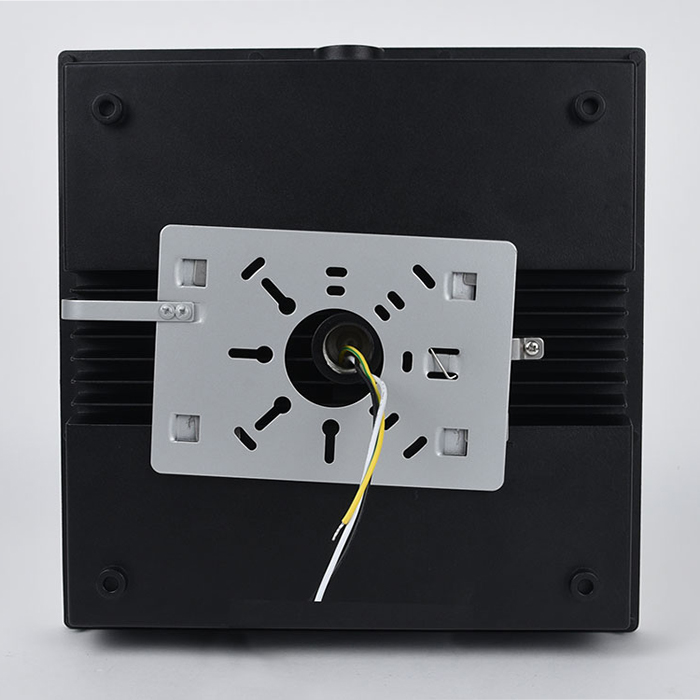

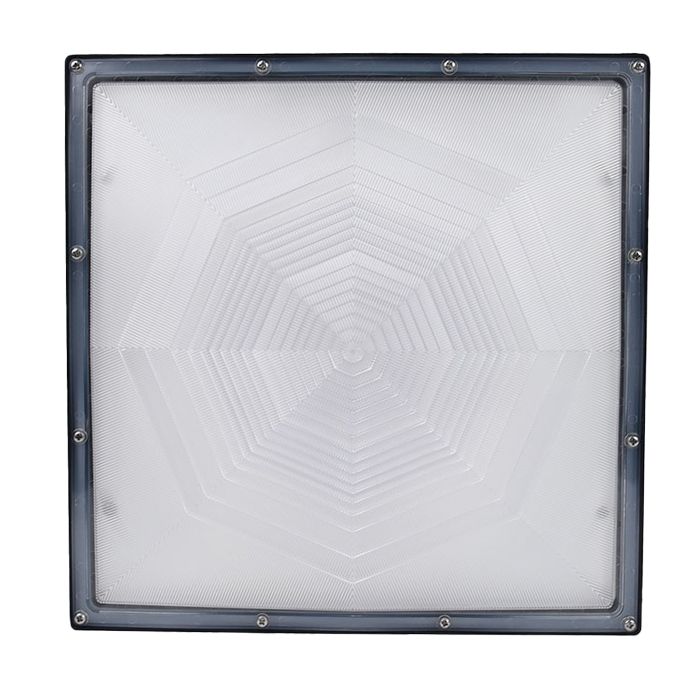

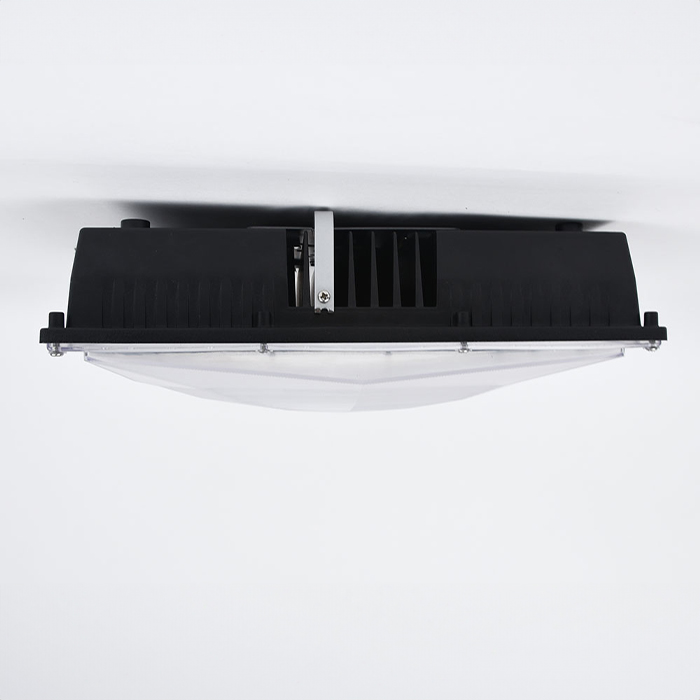

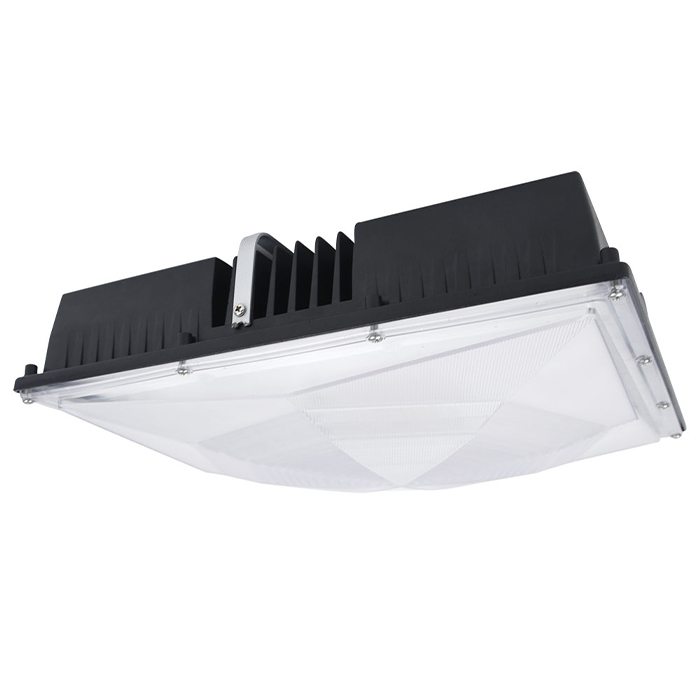

The 13″ naturaLED® Slim Canopy Large is DLC Premium listed and ETL certified with an IP65 rating. It features an aesthetically pleasing, low-profile design with die-cast aluminum housing and a shatter-resistant polycarbonate prismatic lens. The dustproof, sealed structure includes ½” NPT threaded conduit entrances on each side. Optional motion sensor capabilities offer features like step dimming, area sensitivity, standby time, and on/off control. The fixture supports both pendant and surface mounting on ceilings or walls, with pendant mounting accommodating a ¾” NPT thread for compatibility with various J-boxes.
Category | Slim Canopy |
Wattage | 82W,100W |
CCT | 4000K,5000K |
Lumens | 10,062~13,022 |
Voltage | 120-277V |
Item Number | Description | Watt | CCT | Lumens | Equiv. Watt. | Listings | Spec | IES |
---|---|---|---|---|---|---|---|---|
82W | 4000K | 10,062 | 400W | ![]() | ||||
82W | 5000K | 10,259 | 400W | ![]() | ||||
100W | 4000K | 12,795 | >400W | ![]() | ||||
100W | 5000K | 13,022 | >400W | ![]() |
Weight | 10 lbs |
---|---|
Dimensions | 13 × 13 × 4.49 in |
Wattage | |
CCT | |
CRI | |
Color | |
Voltage | |
Dimmable | |
Beam Angle | |
IP Rating | |
Photocell | |
Warranty | |
Listings |
Image | Item Code | Order Code | Description | Data Spec |
---|---|---|---|---|
![]() | P10234 | SEN-MC605V-D | Motion Sensor 0-10V | - |
![]() | 7334 | BAEM15-48BC/MV-A | 15W CEC Compliant LED Emergency Driver | |
![]() | P10195 | PLT-SCM/14X14/WH | 14"x14" Beauty Plate | |
![]() | P10196 | PLT-SCM/24X24/WH | 24"x24" Beauty Plate | |
![]() | P10389 | SPD-L-10KV-277 | Surge Protection 10KV 120-277V | |
![]() | P10390 | SPD-L-20KV-277 | Surge Protection 20KV 120-277V |
