9683 HBR10/150S/110/8C2/BK-Z10 naturaLED Round High Bay LED Fixture Z10 Control Ready
9683 HBR10/150S/110/8C2/BK-Z10 naturaLED Round High Bay LED Fixture Z10 Control Ready
video-thumb-0

HBR

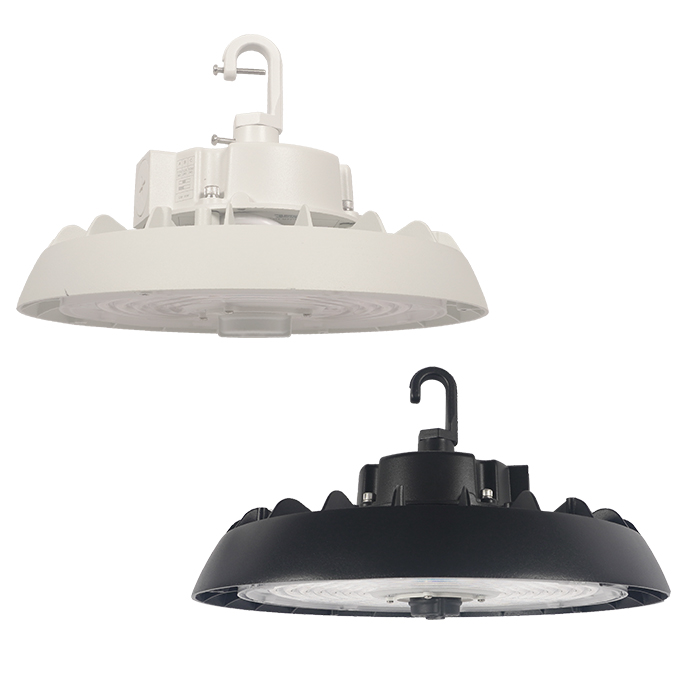

Round High Bay Z10 Control Ready

The naturaLED® Round High Bay is IP66-rated for water and dust resistance, making it ideal for warehouses, retail stores, gyms, factories, and more. Its compact, lightweight design features a pre-installed hook for easy installation, replacing traditional HID fixtures up to 1000W or linear 4 & 6 tube fluorescent high bays. Available accessories include a PIR motion sensor, polycarbonate reflector, and emergency battery backup inverter. The preinstalled Z10 Receptacle enables seamless plug-and-play control upgrades during or after installation.

Spec Sheet Installation Guide

Category High Bay Round
Wattage Selectable
CCT CCT2(40/50K)
Lumens 14,000~33,987
Voltage 120-277V

Category:

Description

Item Code
Description
Wattage
CCT
Lumens
Equiv. Watt
Size
IP Ratings
Color
Spec
IES
9683
HBR10/150S/110/8C2/BK-Z10HBR10/150S/110/8C2/BK-Z10
100W
125W
150W
2CCT
(40/50K)
14,000
18,513
20,830
250-575W
10" / 110°
IP66
Black
9684
HBR10/150S/110/8C2/WH-Z10HBR10/150S/110/8C2/WH-Z10
100W
125W
150W
2CCT
(40/50K)
14,000
18,513
20,830
250-575W
10" / 110°
IP66
White
9685
HBR13/240S/110/8C2/BK-Z10HBR13/240S/110/8C2/BK-Z10
150W
200W
240W
2CCT
(40/50K)
21,000
28,742
33,987
575-1000W
13" / 110°
IP66
Black
9705
HBR13/240S/110/8C2/WH-Z10HBR13/240S/110/8C2/WH-Z10
150W
200W
240W
2CCT
(40/50K)
21,000
28,742
33,987
575-1000W
13" / 110°
IP66
White
9686
HBR12/200S/110/8C2/BK/347-Z10HBR12/200S/110/8C2/BK/347-Z10
100W
150W
200W
2CCT
(40/50K)
14,000
22,202
27,453
575-1000W
12" / 110°
IP66
Black
-

Additional information

Wattage

, ,

CCT

Color

,

Voltage

Dimmable

IP Rating

Photocell

Listings

,

Download

<a class=”button” style=”margin-bottom: 5px;” href=”https://naturaled.com/assets-led/flyer/HBR_IP66_Z10_9683_9684_9685_9705.pdf” target=”_blank” rel=”noopener”>Spec Sheet</a> <a class=”button” style=”margin-bottom: 5px;” href=”https://naturaled.com/assets-led/installation/9683%209684%209685%209686%20HBR%20UFO.pdf” target=”_blank” rel=”noopener”>Installation Guide</a>



Video





Accessories

Item Code
Order Code
Description
Data Spec
P10376
CVR-11HBR100-PC
(Refractor for 9683 &9684)
(1/2” to 3/4” NPT Adaptor for Pendant Mount)
P10377
CVR-13HBR150-PC
(Refractor for 9685 & 9705)
P10569
SEN-ANT-6-Z10-EM
Remote Programmable PIR Motion Sensor 0-10V
-
P10316
SEN-BRI-RC100
(Remote Programmer for P10371)
-
P10488
CTL-MW-PSC-ZKV-WCM-100-BLE-SR
Bluetooth controller, 0-10V, 12-24Vdc, Z10 Brown *See Accessories for Motion/Photocell Sensors with Bluetooth*
-
7344
BAEM40-HBR-170BC/347
40W 120-347V Emergency Battery Back Up Inverter for Round High Bay
-
P10594
BAEM-RT-EMHBR
Emergency Test Remote for 7344
P10191
ADP-1/2-3/4NPT
1/2" to 3/4" NPT Adaptor for Pendant Mount
-
