    • HBR Round High Bay
    Industrial Hi-Bay IP66

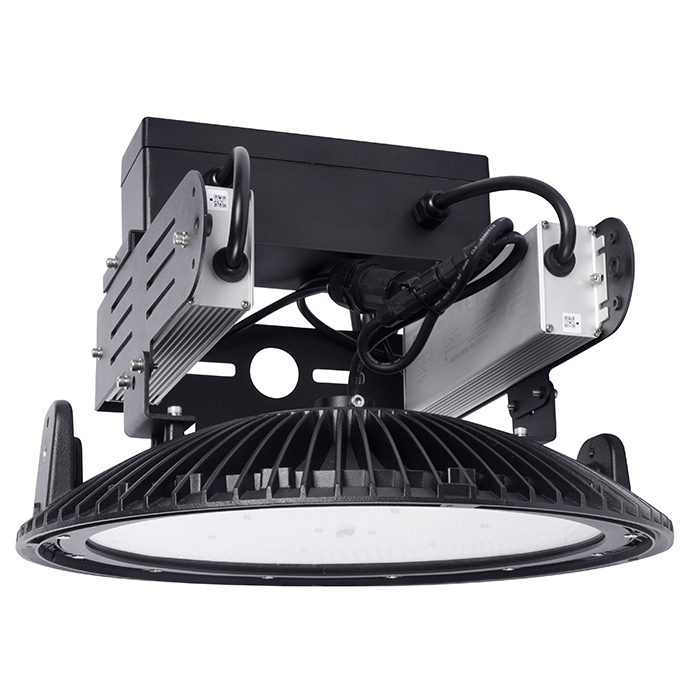

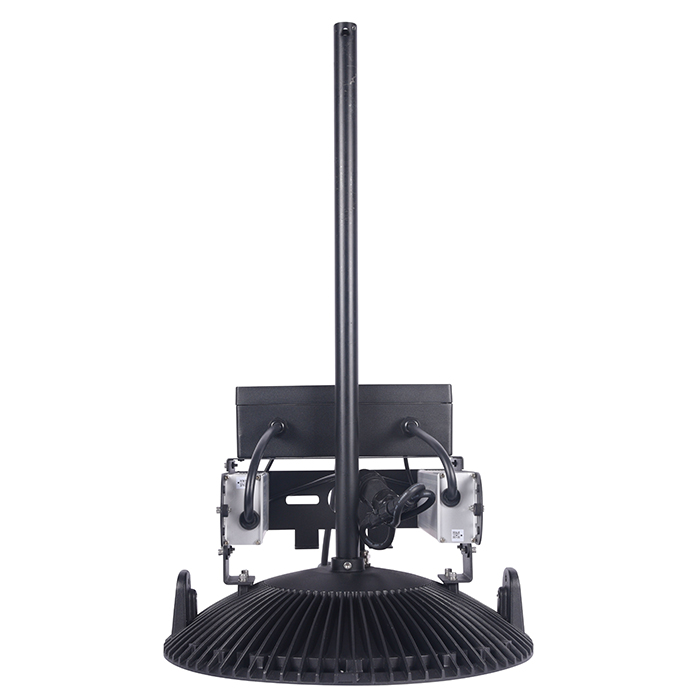

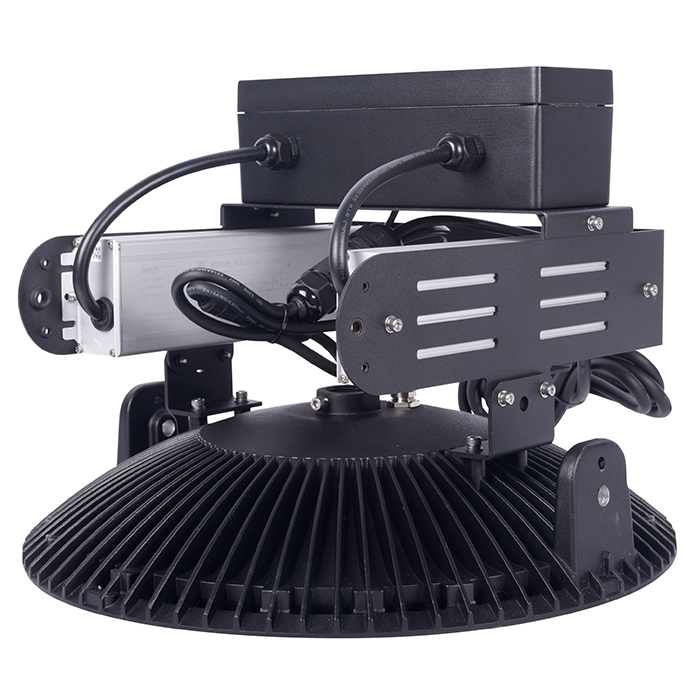

    The naturaLED® Industrial Round High Bay is the ideal lighting solution for demanding industrial environments. Designed for durability and high performance, it thrives in harsh conditions such as dusty, wet, and high-vibration areas. Engineered with a lightweight yet robust build and excellent thermal management, this fixture ensures long-lasting reliability. Available in 200W and 340W with a 110° medium beam pattern, it delivers powerful illumination while operating at full lumen output in temperatures up to 158°F (70°C).

    Spec Sheet Installation Guide

    Category Industrial High Bay
    Wattage 100W,200W,340W
    CCT 5000K
    Lumens 17,872~57,826
    Voltage 120-277V,277-480V

    Categories: ,

    Description

    Item Number
    Description
    Watt
    CCT
    Lumens
    Voltage
    Weight
    IP Rating
    Listings
    Spec
    IES
    7523
    FX16HBR100/110/850/IP66/MV *FE*
    100W
    5000K
    17,872
    120-277V
    19.95
    IP66
    -
    7524
    FX16HBR100/110/850/IP66/480 *FE*
    100W
    5000K
    17,892
    277-480V
    19.95
    IP66
    -
    9576
    FX16HBR200/110/850/IP66/MV *FE*
    200W
    5000K
    35,472
    120-277V
    20.95
    IP66
    -
    9573
    FX16HBR200/110/850/IP66/480 *FE*
    200W
    5000K
    36,281
    277-480V
    20.95
    IP66
    -
    9599
    FX16HBR340/110/850/IP66/MV *FE*
    340W
    5000K
    57,532
    120-277V
    24.25
    IP66
    -
    9574
    FX16HBR340/110/850/IP66/480 *FE*
    340W
    5000K
    57,826
    277-480V
    24.25
    IP66
    -

    Additional information

    Weight 12.38 lbs
    Dimensions 15.75 × 15.75 in
    Wattage

    ,

    CCT

    Color

    CRI

    Voltage

    ,

    Dimmable

    Beam Angle

    ,

    IP Rating

    Photocell

    Listings

    ,

    Warranty

    Download

    Spec Sheet Installation Guide

    Video

    Accessories

    Item Code
    Order Code
    Description
    Data Spec
    P10440
    CVR-16HBR-80-AL
    80° Aluminum Reflector 23.2"Diameter x 9.84" Height
    P10233
    MT-PIPE075-MPT-18IN/BK
    3/4" NPT 18" Black Steel Pendant Rod (Threaded)
    -
    P10439
    MT-YK-HBR16-BK
    Yoke Mount for 16" Industrial High Bay Round - Black
    P10230
    PWC-300V2-30ft-QC
    30ft-300V 2-Conductor w/connector)
    -
    P10390
    SPD-L-20KV-277
    Long (Parallel) Type 20KV 120-277V
    P10391
    SPD-L-20KV-480
    Long (Parallel) Type 20KV 347-480V
    P10431
    SPD-R-20KV-277
    Round Type 20KV 120-277V
    -
    P10432
    SPD-R-20KV-480
    Round Type 20KV 347-480V
    -
