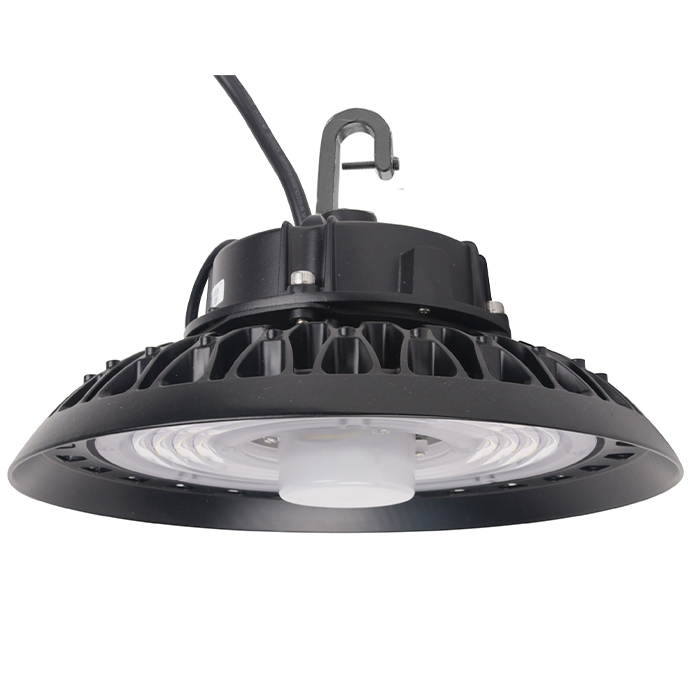

The naturaLED® Round High Bay is IP66-rated for water and dust resistance, making it ideal for various applications, including warehouses, retail stores, gyms, and factories. Designed for versatility, it features a compact, lightweight build with an adjustable pre-installed hook for easy installation, replacing traditional HID fixtures up to 1000W or linear 4 & 6 tube fluorescent high bays. Available accessories include a 120-degree lens, an 11” polycarbonate refractor for retail applications, and a programmable motion sensor with a remote controller.
| Category | High Bay Round |
| Wattage | Selectable/Single |
| CCT | 5000K |
| Lumens | 15,321~30,000 |
| Voltage | 120-277V,277-480V |
Item Code | Description | Wattage | CCT | Lumens | Equiv. Watt | Size | IP Ratings | Color | Spec | IES |
|---|---|---|---|---|---|---|---|---|---|---|
100W | 5000K | 15,321 | 400W | 11" / 90° | IP66 | White |  |  |
||
150W | 5000K | 23,097 | 400-575W | 13" / 90° | IP66 | White | | |
||
200W | 5000K | 32,985 | 575-1000W | 15" / 90° | IP66 | White | | |
||
120W 160W 200W | 5000K | 18,000 24,000 30,000 | 575-1000W | 15" / 90° | IP66 | Black | | - |
| Wattage | |
|---|---|
| CCT | |
| Color | |
| Voltage | |
| Dimmable | |
| IP Rating | |
| Photocell | |
| Listings |
<a class=”button” style=”margin-bottom: 5px;” href=”https://naturaled.com/assets-led/flyer/HBR_IP66_9469_7165.pdf” target=”_blank” rel=”noopener”>Spec Sheet</a> <a class=”button” style=”margin-bottom: 5px;” href=”https://naturaled.com/assets-led/installation/9469%209470%209555%20HBR%20installation-v3.pdf” target=”_blank” rel=”noopener”>Installation Guide</a>
Image | Item Code | Order Code | Description | Data Spec |
|---|---|---|---|---|
 | P10320 | LENS-11HBR-120D-IP66 | 120° Lens for 9469 | - |
| P10321 | LENS-13HBR-120D-IP66 | 120° Lens for 9470 | - |
| P10433 | LENS-15HBR-120D-IP66 | 120° Lens for 9555 & 7165 | - |
 | P10376 | CVR-11HBR100-PC | High Bay PC Reflector for 9469 | |
| P10377 | CVR-13HBR150-PC | High Bay PC Reflector for 9470 | |
| P10434 | CVR-15HBR200-PC | High Bay PC Reflector for 9555 & 7165 | |
 | P10319 | SEN-HD06VCRH | Remote Programmable Microwave Motion Sensor 0-10V | - |
 | P10323 | SEN-HD05R | Remote Programmer for P10319 | - |
 | P10191 | ADP-1/2-3/4NPT | 1/2" to 3/4" NPT Adaptor for Pendant Mount | - |
 | P10371 | SEN-BRI619 | (Recommended Height up to 40-ft) Remote/Dipswitch Programmable PIR Motion Sensor 0-10V Bi-Level Internal 12V-24V 2X Area Lens | - |
 | P10316 | SEN-BRI-RC100 | Remote Programmer for P10371 | - |
