VTL
11″ Vapor Tight Linear with Selectable Wattages and CCT3

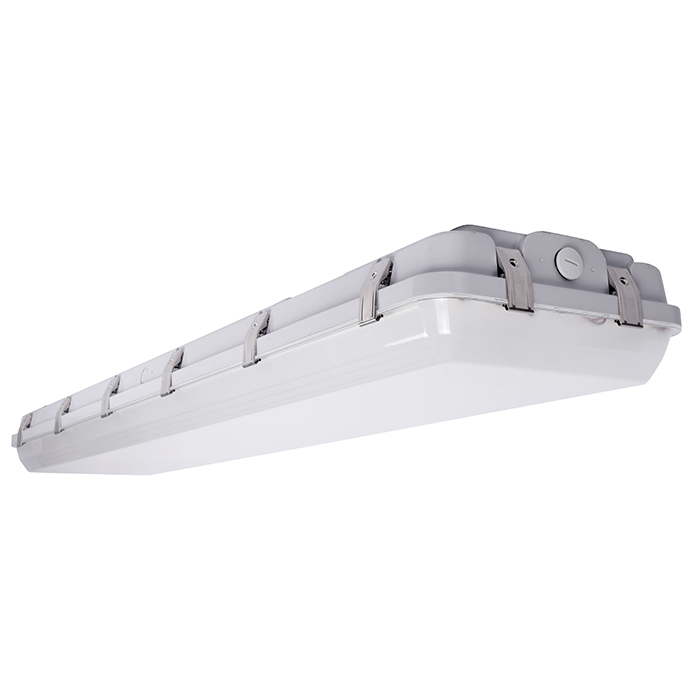

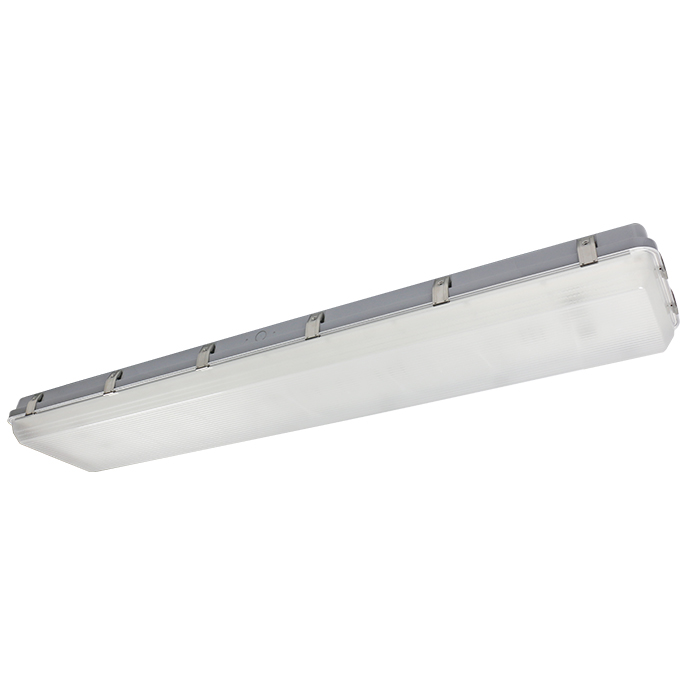

The naturaLED® 11-inch Linear Vapor Tight is constructed with a polycarbonate housing and a silicon perimeter gasket, complete with mounting brackets. These IP66-rated LED fixtures are engineered to replace traditional fluorescent strip lights and provide efficient lighting for applications such as parking garages, corporate campuses, educational facilities, storage areas, car washes, tunnels, and stairwells. Offering up to 65% energy savings and a lifespan of up to 50,000 hours, our fixtures feature selectable wattages and color temperatures to meet various lighting needs.


Spec Sheet Installation Guide


Category Vapor Tights Linear
Wattage Selectable
CCT CCT3(35/40/50K)
Lumens 19,200~32,000
Voltage 120-347V

Description

Item Code
Description
Wattage
CCT
Lumens
Equiv. Watt
Size
IP Rating
Motion Sensor
Emergency Driver
Listing
Spec
IES
120W
160W
200W
3CCT
(30/40/50K)
19,200
25,600
32,000
100-400W
12"x48"
IP65
P10438
K7334412
-

Additional information

Weight 13.9 lbs
Dimensions 49 × 10.5 × 4.50 in
Wattage

CCT

CRI

Color

,

Voltage

Dimmable

Beam Angle

Length

IP Rating

Photocell

Sensor

Listings

, ,

Warranty

Download

Spec Sheet Installation Guide

Video

Accessories

Item Code
Order Code
Description
Data Spec
7341
BAEM20-260BC/347-A
20W 90-260Vdc Ballast Emergency Battery 120-347V
7337
BAEM25-170BC/347-C
25W Micro Inverter 120-347V with 12” Conduit)
P10438
SEN-HB001VCR-1
Remote Programmable Microwave
Motion Sensor 0-10V Bi-Level Internal 12V Low Voltage
-
P10323
SEN-HD05R
Remote Programmer)
-
P10389
SPD-L-10KV-277
10KV Single Phase Surge Protection
120-277V
P10390
SPD-L-20KV-277
20KV Single Phase Surge Protection
120-277V
P10391
SPD-L-20KV-480
20KV Single Phase Surge Protection
277-480V
