12″ Vapor Tight Linear High Output (VTL)
120/160/200W – CCT3 – [12″X48″]

Item Code 9676
Code VTL11/200S/48FR/8C3/347
Wattages 120/160/200W
Lumens 19,200
25,600
32,000
CCT CCT3 (35/40/50K)
Equiv.Wattages 100-400W



SKU: VTL11/200S/48FR/8C3/347 Categories: ,

Description

Features:

• DLC Premium Qualified
• IP66 Rated
• ETL / ETL Sanitation Rated
• NEMA 4X
• Wattage & Color Selectable

• Wattages: 120/160/200W
• Color Temp: 3CCT (35/40/50K)
• Voltage: 120-347V
• Surge Protection: 6KV
• Dimmable: 0-10V
• CRI>80
• Operating Temperature: -40°F – 122°F
• Color: Grey/White
• Warranty: 5 Year
• Designed for maximum operation in commercial environments
• Lighter weight housing for easy installation
• Stainless steel hasps and clips
• Optional for Purchase: Microwave Motion Sensor, Emergency Driver, Remote Programmer

Additional information

Weight 13.9 lbs
Dimensions 49 × 10.50 × 4.50 in
Wattage

,

CCT

CRI

Voltage

Color

,

Dimmable

Beam Angle

Length

IP Rating

Photocell

Sensor

Listings

, ,

Warranty

Stock

Download

TECH SHEET SPEC SHEET  INSTALLATION .IES FILE BROCHURE

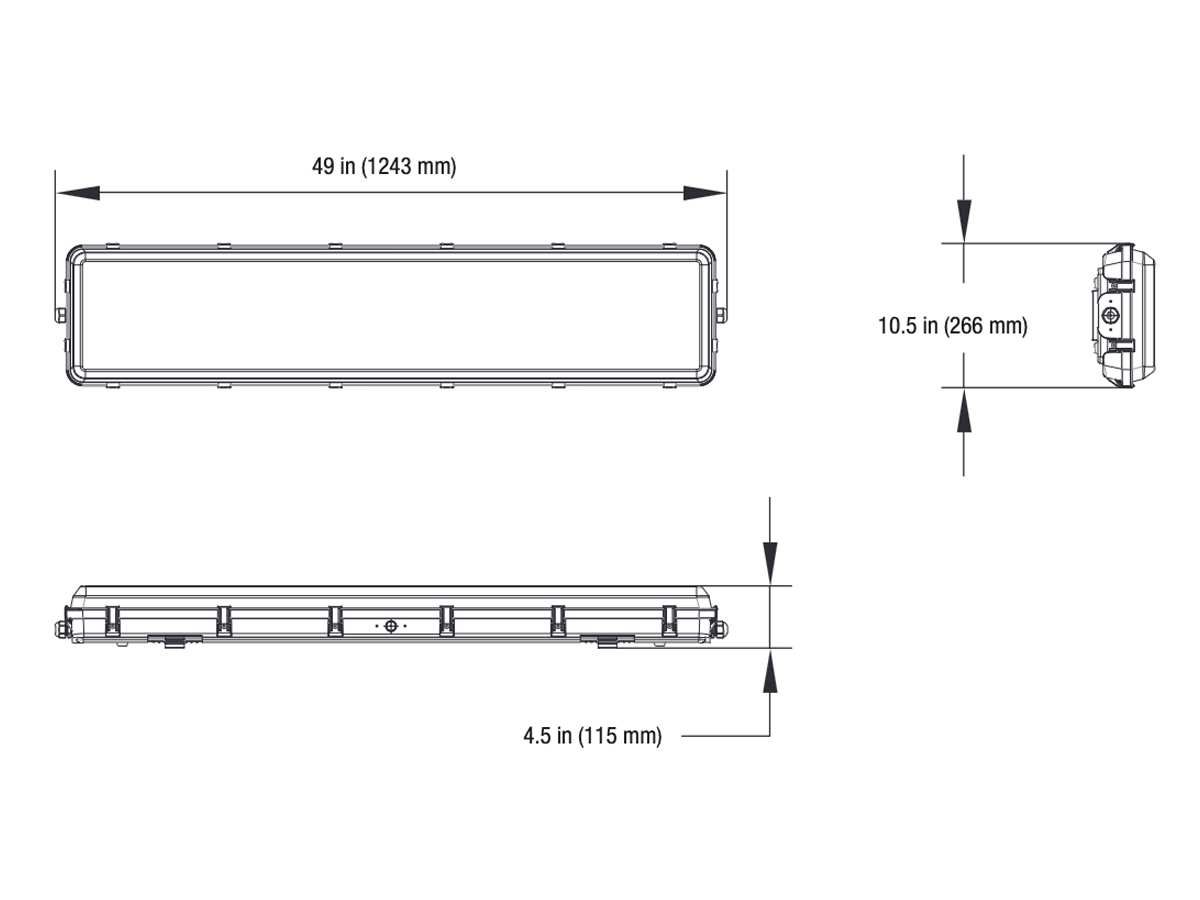

Dimensions

Weight:13.90-lbs

Accessories

Item Code
Order Code
Description
Data Spec
7341
BAEM20-260BC/347-A
20W 90-260Vdc Ballast Emergency Battery 120-347V
7337
BAEM25-170BC/347-C
25W Micro Inverter 120-347V with 12” Conduit)
P10438
SEN-HB001VCR-1
Remote Programmable Microwave
Motion Sensor 0-10V Bi-Level Internal 12V Low Voltage
-
P10323
SEN-HD05R
Remote Programmer)
-
P10389
SPD-L-10KV-277
10KV Single Phase Surge Protection
120-277V
P10390
SPD-L-20KV-277
20KV Single Phase Surge Protection
120-277V
P10391
SPD-L-20KV-480
20KV Single Phase Surge Protection
277-480V
