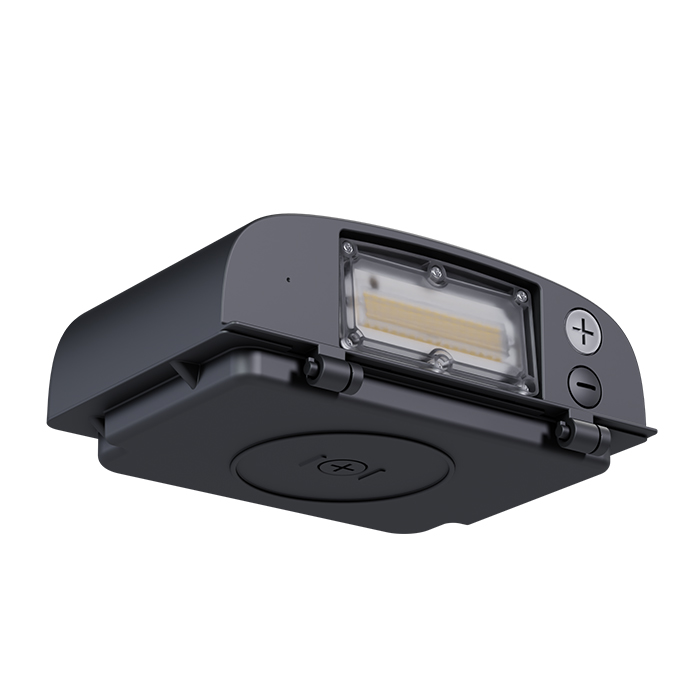

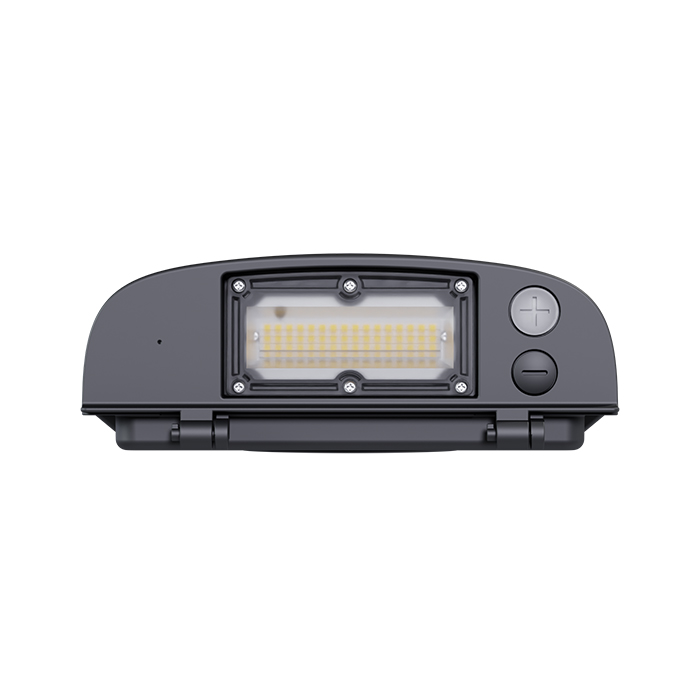

Full Cutoff Compact Wall Packs (CWX)
15/28/40 Wattages – CCT3 – [Photocell Included]

Item Code 9707
Code CWX40S/8C3/BK-PHO
Wattages 15/28/40W
Lumens 2,600
3,640
5,200
CCT 3CCT (30/40/50K)
Equiv.Wattages 175-250W
Color Black



SKU: CWX40S/8C3/BK-PHO Categories: ,

Description

Features:


• DLC Premium Qualified
• IP65 Rated
• ADA Compliant
• ETL, cETL Listed
• Wattage & Color Selectable
• Photocell Included


• Wattages: 15/28/40W
• Color Temp: 3CCT (30/40/50K)
• Voltage: 120-277V
• Surge Protection: 4KV
• Dimmable: 0-10V
• CRI>80
• Operating Temperature: -40°F – 122°F
• Beam Angle: Cutoff
• Lens: Borosilicate Glass Lens
• Material: Die Cast Aluminum
• Finish: Corrosion-resistant powder coating
• Color: Black
• Warranty: 5 Year
• Built In Photocell Sensor Included
• Optional for Purchase: Microwave Sensor, Emergency Drivers, Remote Control

Additional information

Weight 4.63 lbs
Dimensions 9.40 × 3.50 × 6.20 in
Wattage

,

CCT

CRI

Voltage

Color

Dimmable

IP Rating

Photocell

Sensor

Listings

, ,

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION For Sensor & EM .IES FILE BROCHURE



Dimensions

Weight: 4.63-lbs

Accessories

Item Code
Order Code
Description
Data Spec
7336
BAEM4-60BC/MV-A
4W CEC Compliant LED Emergency Driver for 60-Watt
P10540
SEN-ANT-11WH
Remote Programmable Microwave Motion Sensor 0-10V Bi-Level Internal 12V Low Voltage
P10518
REC-Z10-WH
Z10 Receptacle Base with the White Cap
P10519
REC-Z10-BK
Z10 Receptacle Base with the Black Cap
P10521
SEN-ANT-5-Z10
Z10 Twist-Lock Microwave Motion & Photocell Sensor, 0-10V,12-24Vdc White
P10522
SEN-ANT-6-Z10
Z10 Twist-Lock PIR Motion & Photocell Sensor, 0-10V,12-24Vdc White
P10316
SEN-BRI-RC100
Remote Programmer for P10540
