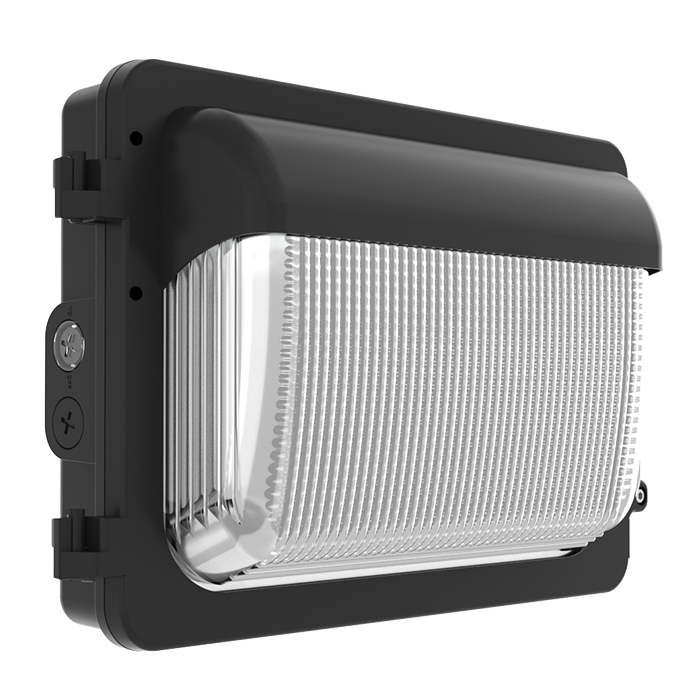

Compact Traditional Wall Pack (TWX)
25/40/60W – CCT3 – [Photocell]

Item Code 9672
Code FXTWX60SW/8CCT3/BK-PHO
Wattages 25/40/60
Lumens 3,729
5,000
7,538
CCT 3CCT (30/40/50K)
Equiv.Wattages 175-400W
Color Black



SKU: FXTWX60SW/8CCT3/BK-PHO Categories: ,

Description

Features:


• DLC Premium Qualified
• IP65 Rated
• ETL, cETL Listed
• Wattage & Color Selectable
• Photocell Included


• Wattages: 25/40/60W
• Color Temp: 3CCT (30/40/50K)
• Voltage: 120-277V
• Surge Protection: 4KV
• Dimmable: 0-10V
• CRI>80
• Operating Temperature: -40°F – 122°F
• Beam Angle: Forward Throw
• Lens: Borosilicate Glass Lens
• Material: Die Cast Aluminum
• Finish: Corrosion-resistant powder coating
• Color: Black
• Warranty: 5 Year
• Built In Photocell Sensor Included (Easy ON/OFF Switch)
• Optional for Purchase: Microwave Sensor, Emergency Drivers, Remote Control

Additional information

Weight 9.26 lbs
Dimensions 15.55 × 4.21 × 9.76 in
Wattage

, ,

CCT

CRI

Voltage

Color

Dimmable

IP Rating

Photocell

Sensor

Listings

,

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILE BROCHURE

Dimensions

Weight: 9.26-lbs

Accessories

Item Code
Order Code
Description
Data Spec
7336
BAEM4-60BC/MV-A
4W CEC Compliant LED Emergency Driver
(for 60-Watt only)
P10540
SEN-ANT-11WH
Remote Programmable Microwave Motion Sensor 0-10V Bi-Level Internal 12V Low Voltage
-
P10316
SEN-BRI-RC100
Remote Programmer for P10540
-
