CAL
Compact Area Lights w/Z10 Receptacle

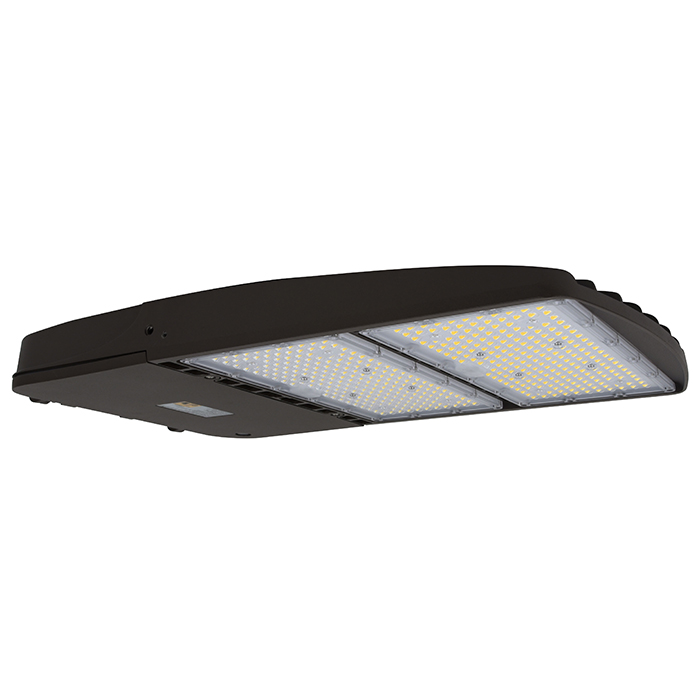

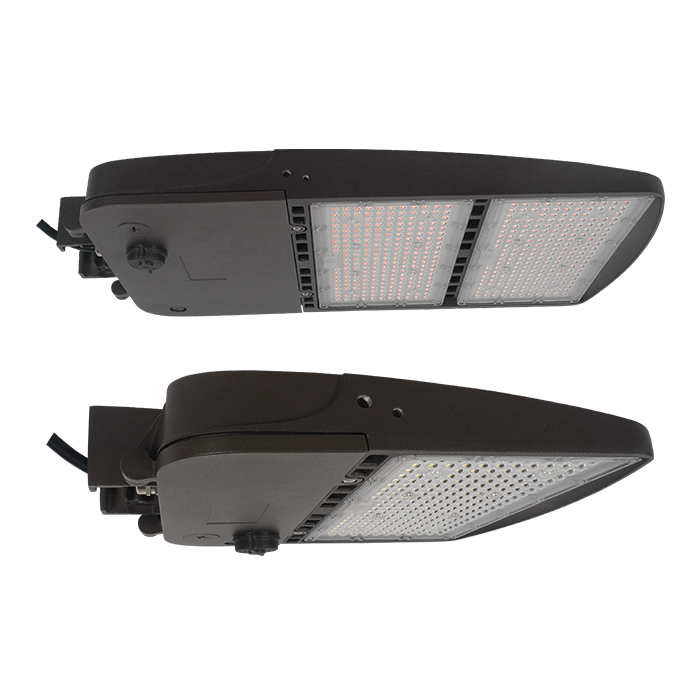

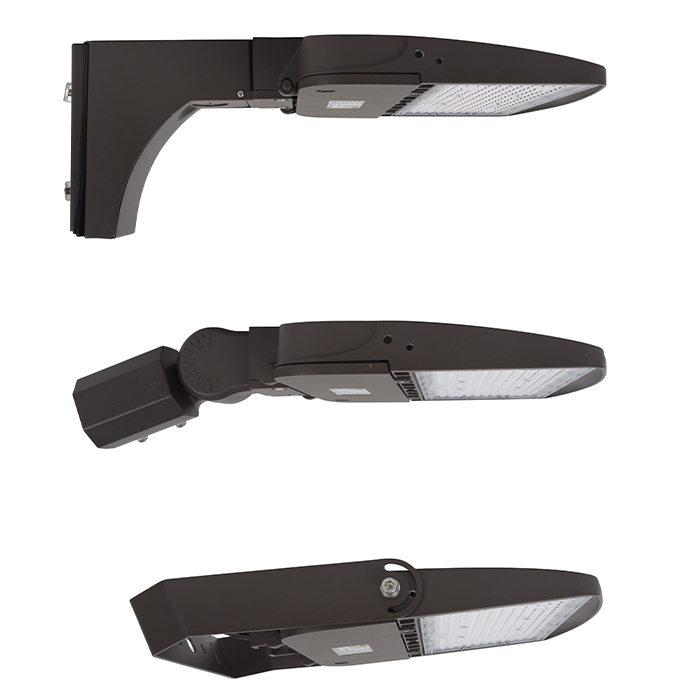

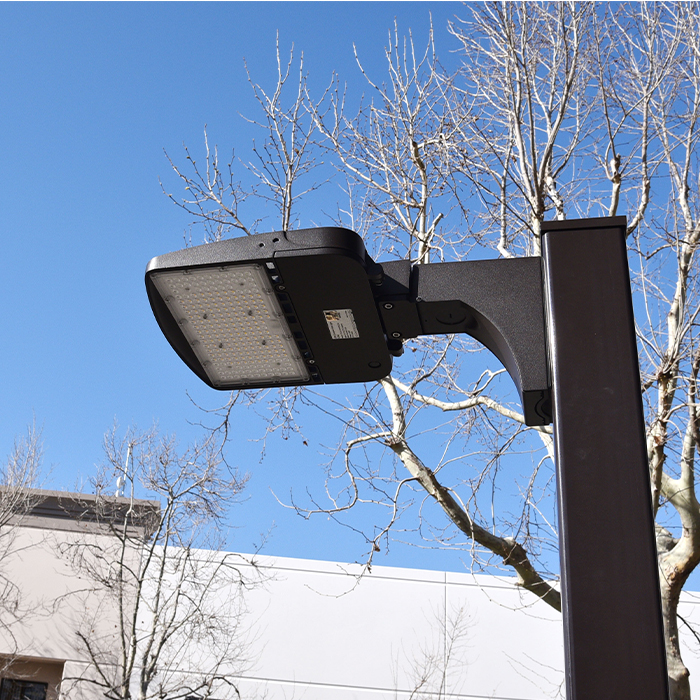

The naturaLED® Compact Area Light features a durable die-cast aluminum housing and advanced thermal design, making it an ideal solution for parking lots, streets, walkways, and flood or wall lighting. It delivers uniform, consistent illumination with a wide range of wattage options to replace up to 1500W HID fixtures. DLC Premium certified, IK10 and IP65 rated, it offers five mounting options: Pole Mount, Adjustable Pole, Slip Fitter, Yoke Mount, and Wall Mount. The preinstalled Z10 Receptacle enables easy plug-and-play control upgrades during installation or later.

Spec Sheet Installation Guide

Category Area Lights
Wattage Selectable
CCT CCT3(30/40/50K)
Lumens 9,100~40,397
Voltage 120-277V, 120-347V

Categories: ,

Description

Item Code
Description
Wattage
CCT
Lumens
Equiv. Watt
Size
Voltage
Photocell
Motion Sensor
Spec
IES
9530
CAL150S/T3/C3/BZ-Z10
70
100
150
CCT3
(30/40/50K)
9,100
13,527
19,842
400-575
12.5" x 13.14"
0-10V
P10520
P10522
9531
CAL300S/T3/C3/BZ-Z10
200
240
300
CCT3
(30/40/50K)
26,000
32,491
40,397
1000-1500W
12.4" x 22.72"
0-10V
P10520
P10522
9604
CAL150S/T3/C3/BZ/347-Z10
70
100
150
CCT3
(30/40/50K)
9,100
13,527
19,842
400-575
12.5" x 13.14"
0-10V
-
-
-
-
9713
CAL300S/T3/C3/BZ/347-Z10
200
240
300
CCT3
(30/40/50K)
26,000
32,491
40,397
1000-1500W
12.4" x 22.72"
0-10V
-
-
-
-

Additional information

Wattage

, , ,

CCT

CRI

Color

Voltage

,

Dimmable

Beam Angle

IP Rating

Photocell

Sensor

Listings

,

Warranty

Download

Spec Sheet Installation Guide

Video



Accessories

Item Code
Order Code
Description
P10572
BALED-N6H-150M260A12H
240-480V Driver for CAL 150W 9530
P10573
BALED-N6H-320M260A12H
240-480V Driver for CAL 300W 9531
P10167
PWC-600V3-6FT
Black SO Cord 6ft for 600V 3 Conductor
P10522
SEN-ANT-6-Z10
Z10 Twist-Lock PIR Motion and Photocell Sensor, 0-10V, 12-24Vdc - White
P10520
SEN-ANT-5-Z10-PC
Z10 Twist-Lock Photocell 12-24Vdc - White
P10316
SEN-BRI-RC100
Remote Programmer for P10520 and P10522
P10488
CTL-MW-PSC-ZKV-WCM-100-BLE-SR
Bluetooth controller, 0-10V, 12-24Vdc, Z10 Brown *See Accessories for additional Sensors with Bluetooth*
P10517
CTL-MW-PSC-ZKV-WCM-110-BLE-SR-BN
Bluetooth controller w/ Photocell, 0-10V, 12-24Vdc, Z10 Brown
P10523
MT-AL/PMA8/BZ
Mount - Area Light Adjustable Pole Mount 8" Bronze
P10365
MT-CAL/PM8/BZ
8" Inch Pole Mount Arm for Compact Area Light - Bronze
P10366
MT-CAL/SF/BZ
Slip Fitter Mount for Compact Area Light - Bronze
P10367
MT-CAL/YK13/BZ
13" Yoke Mount for Compact Area Light - Bronze
K473478
MT-CAL/WM/BZ

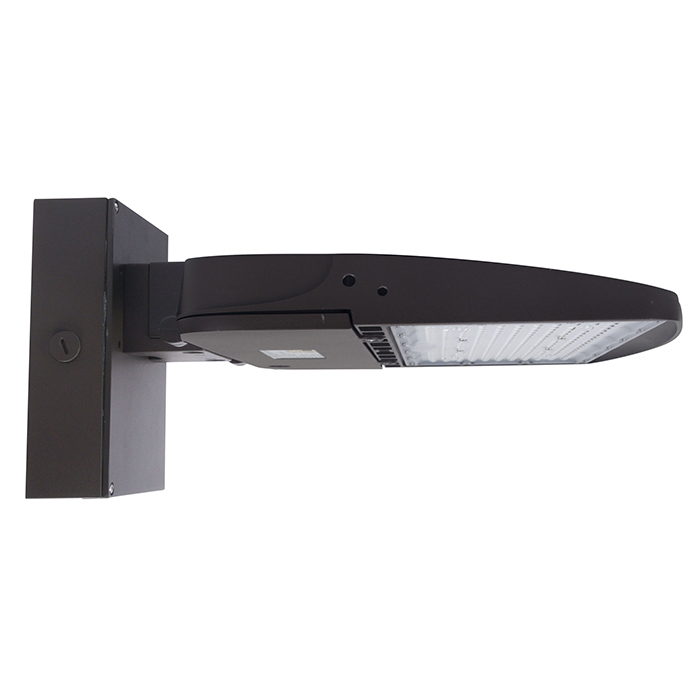

Wall Mount Compact Area Light - Bronze (Replaces K379200)
P10405
GSFB-CAL/BZ

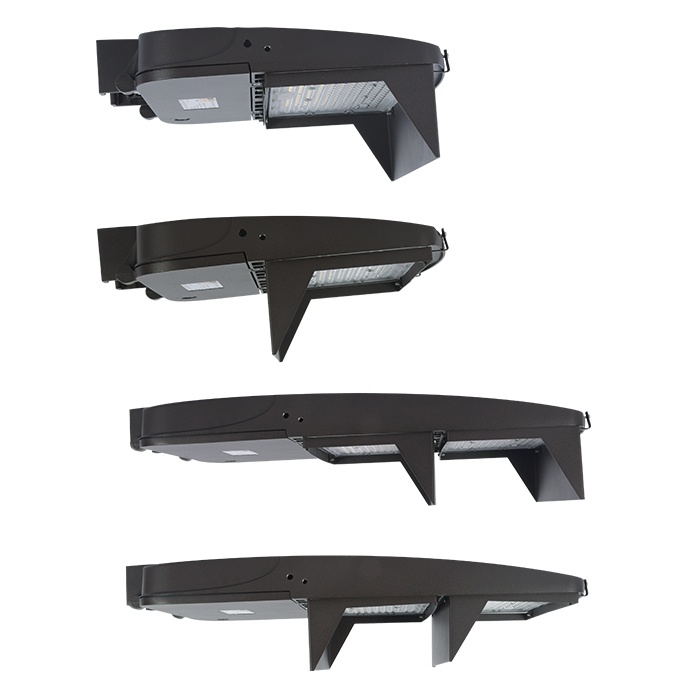

Glare Shields for Compact Area Light 150W (300W requires 2 per fixture)
P10398
LENS-CAL-IV
Type 4 Lens for Compact Area Light 150W (300W requires 2 per fixture)
P10399
LENS-CAL-V
Type 5 Lens for Compact Area Light 150W (300W requires 2 per fixture)
