Ultra Slim Ceiling Disk Lights (DLS)
12Watt – CCT3 – [6″ Square]

Item Code 9371
Code LED6DLS-80L9CCT3
Wattages 12W
Lumens 800
CCT CCT3 (30/40/50K)
Equiv.Wattages 90W



SKU: LED6DLS-80L9CCT3 Categories: ,

Description

Features:


• Energy Star Qualified
• Damp Location
• ETL  Listed
• IC Rated
• JA9/Title 24


• Wattages: 12W
• Color Temp: 3CCT (3000K, 4000K, 5000K)
• Voltage: 120V
• Surge Protection: 1KV
• Dimmable
• CRI>90
• Operating Temperature: -4°F – 113°F
• Beam Angle: Flood
• Color: White
• Warranty: 5 Year
• Ultra slim design for drywall (no recessed can be needed)
• 6” Square Design
• Recommended ceiling height at 8-10ft
• Optional for Purchase: Pre-Mounting Plate, Emergency Driver

Additional information

Weight 1.28 lbs
Dimensions 6.88 × 6.88 × 0.88 in
Wattage

CCT

CRI

Voltage

Color

Dimmable

Beam Angle

Diameter

6-inch

Shape

Square

IP Rating

Photocell

Sensor

Listings

, ,

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILEBROCHURE

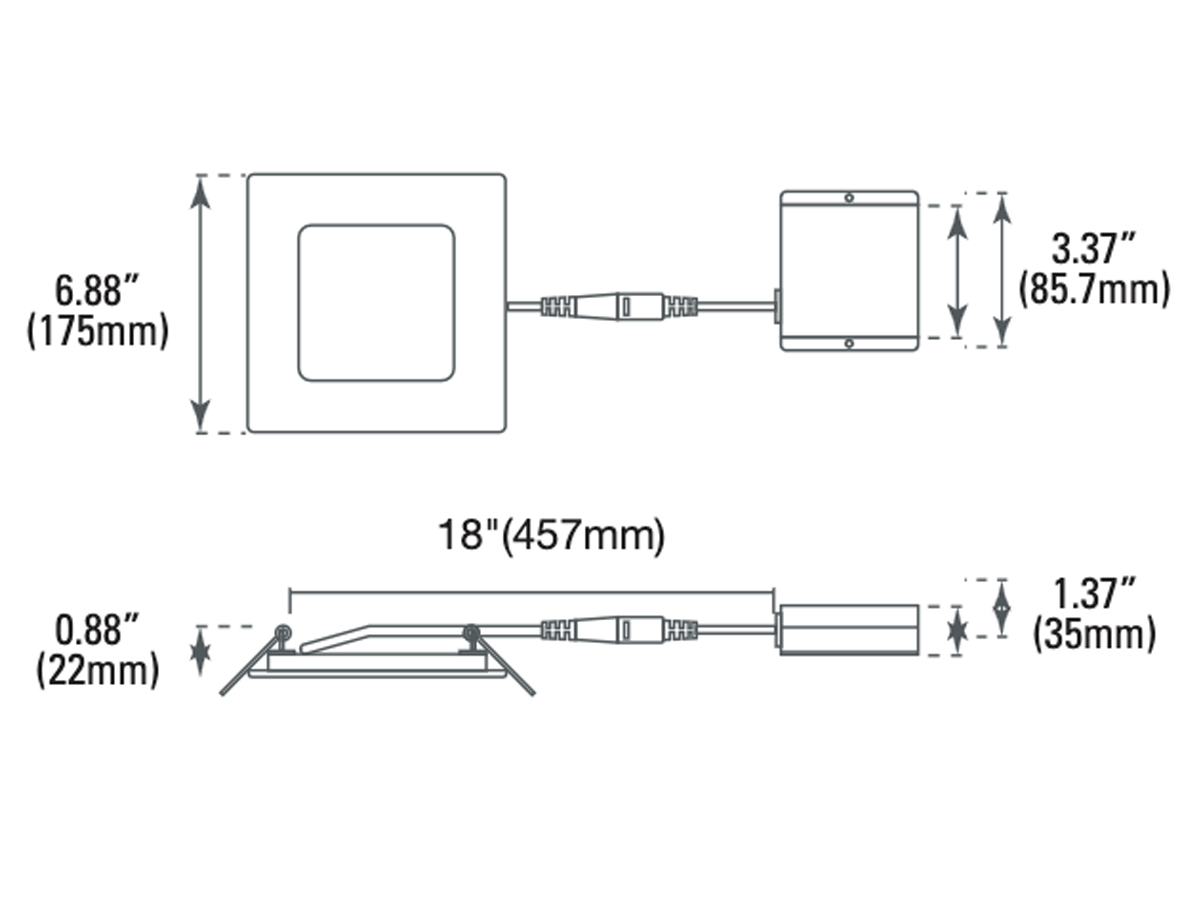

Dimensions

Weight:1.28-lbs

Accessories

Item Code
Order Code
Description
Data Spec
7337
BAEM25-170BC/347-C
25W Micro Inverter 120-347V with 12" Conduit
P10308
PLT-NC/4DL
4" Round Pre-Mounting Plate
P10309
PLT-NC/6DL
6" Round Pre-Mounting Plate
P10375
PLT-NC/DL/3-4-6-8
3/4/6/8” Disk Light Universal Plate
