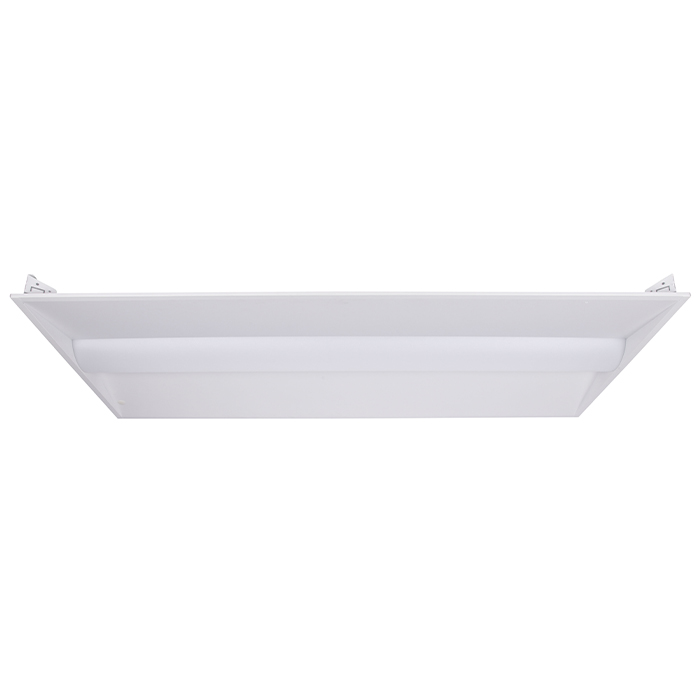

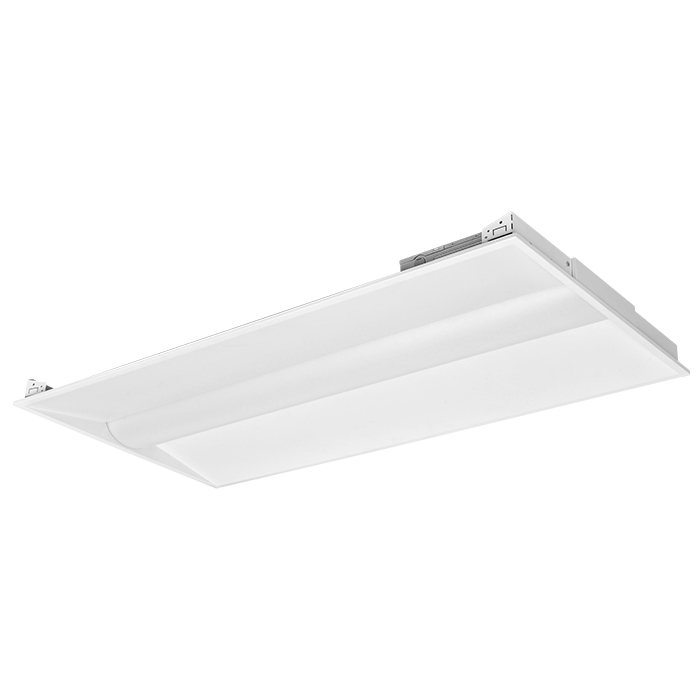

TF Center Basket Troffer (2′ x 4′)
Selectable Wattages & CCT3 / 0-10V / 120-277V

Item Code 9587
Code FXTF45SW/2X4/8CCT3G1
Wattages 30/40/45W
Lumens 4,050
5,200
5,850
CCT CCT3 (35/40/50K)
Equiv.Wattages 90-130W



SKU: FXTF45SW/2X4/8CCT3G1 Categories: ,

Description

Features:

• DLC Standard
• Damp Location
• ETL Listed
• Selectable Wattages (30/40/45W)
• Selectable Color Temp: 3CCT (3500K/4000K/5000K)
• Voltage: 120-277V
• Power Factor: >0.9
• Surge Protection: 2KV
• Beam Angle: 115°
• Dimmable: 0-10V
• CRI: 80
• Operating temperature: – 4°F – 104°F
• Easy installation for retrofit replacement
• Size: 4-ft
• Material: Steel and PC lens
• 5 Year Warranty
• Optional for Purchase: Emergency Driver, Motion Sensor, Flange Mount Kit

Additional information

Weight 15.00 lbs
Dimensions 47.70 × 23.7 × 1.97 in
Wattage

,

CCT

CRI

Voltage

Color

Dimmable

IP Rating

Photocell

Sensor

Listings

,

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILE BROCHURE

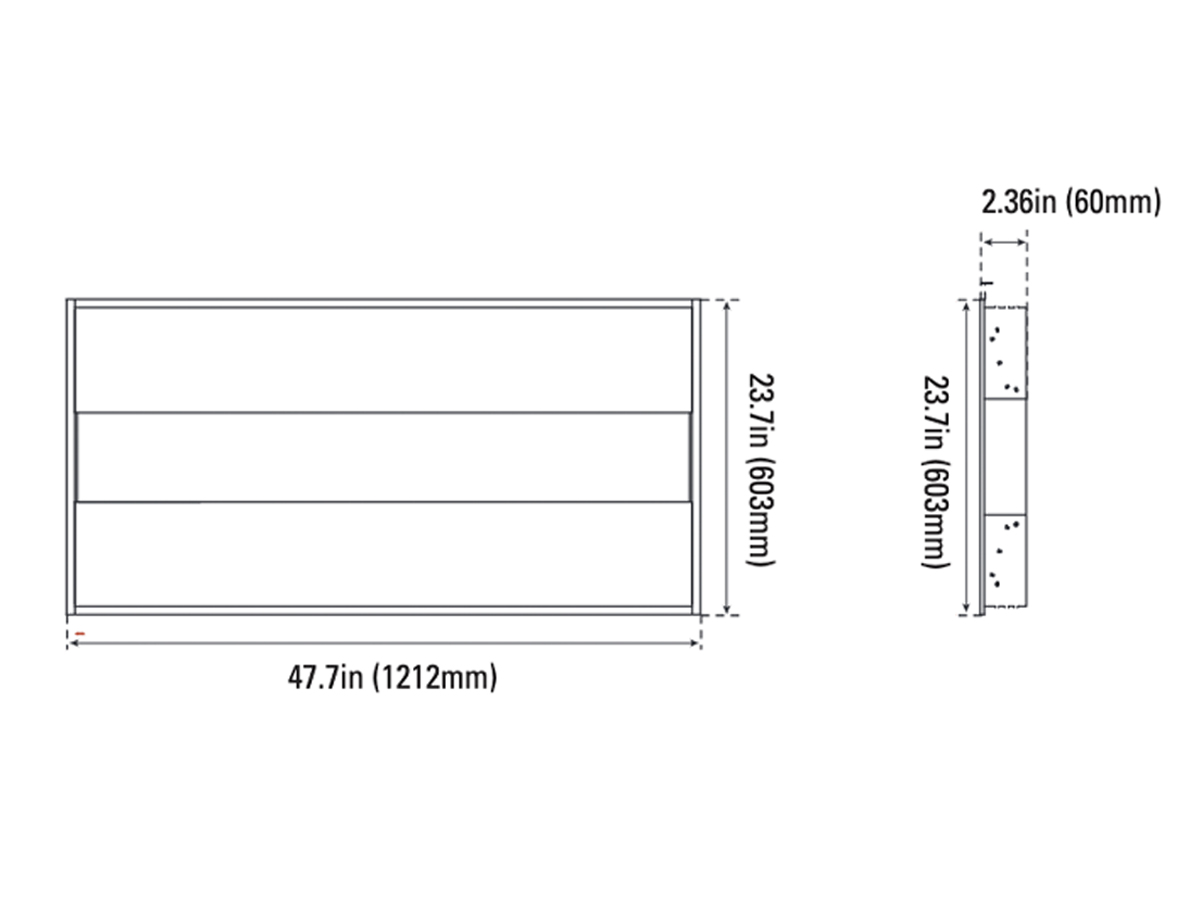

Dimensions

Weight:15.00-lbs

Accessories

Item Code
Order Code
Description
Data Spec
K7336593
FXTFSW-BAEM-MT-G1
LED Emergency Driver for 100-277V with a mounting plate for Troffer #9586 & #9587
-
K7336427
FXTFSW-BAEM-MT
LED Emergency Driver for 100-277V with a mounting plate for Troffer #9595 & #9596
-
7338
BAEM8L-60BC/347-A
8W CEC-Compliant LED Linear Emergency Driver 120-347V with 24'' Conduit
-
K438380
SEN-HB001VCR/BA12V
Remote Programmable Microwave Motion Sensor 0-10V Bi-Level Internal 120-277V
-
P10323
SEN-HD06R
Remote Programmer for K438380
-
P10417
MT-2X2BOX-3.0IN
3.0" Height 2x2 Surface Mount Kit for Back-Lit Panel / Troffer
-
P10418
MT-2X4BOX-3.0IN
3.0" Height 2x4 Surface Mount Kit for Back-Lit Panel / Troffer
-
P10335
MT-2x2BOX-4.5in
4.5" Height 2x2 Surface Mount Kit for Back-Lit Panel / Troffer
-
P10336
MT-2x4BOX-4.5in
4.5" Height 2x4 Surface Mount Kit for Back-Lit Panel / Troffer
-
P10228
MT-2X2FMBOX
2x2 Flange Mount Kit for Back-Lit Panel / Troffer
-
P10229
MT-2X4FMBOX
2x4 Flange Mount Kit for Back-Lit Panel / Troffer
-
