A & B Universal Design

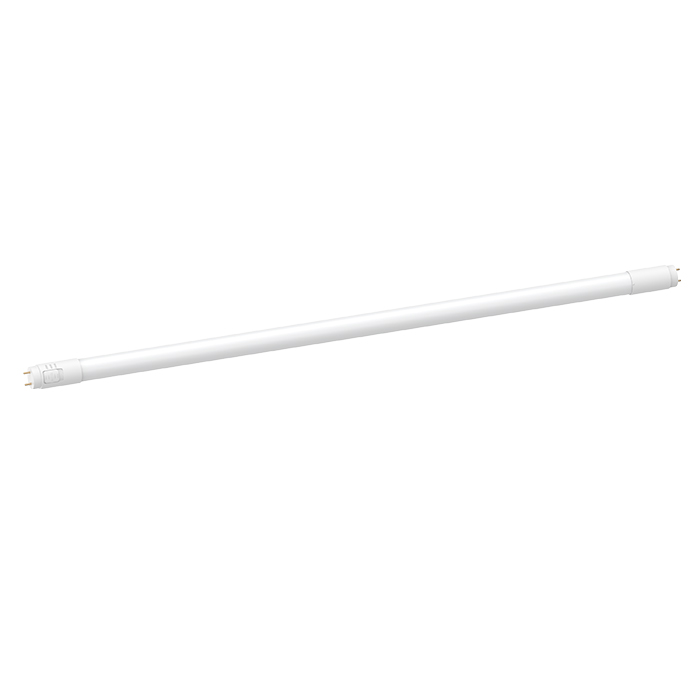

T8 LED Tubes with CCT3

naturaLED® T8 Tubes type A + B fitting into an existing 4’ fluorescent fixture. Simply plug-and-play with Type A compatibility, or bypass the ballast for Type B luminaries. Replaces 32-watt fluorescent tubes according to the existing system. Frosted lens distributes diffused, efficient task light for offices, schools, retail, or any commercial usage. Our Type A + B Universal Design works with Shunted and Non-Shunted Sockets


CategoryT8 A&B Universal Tube
Wattage17W
Lumens2,050
Voltage120-277V

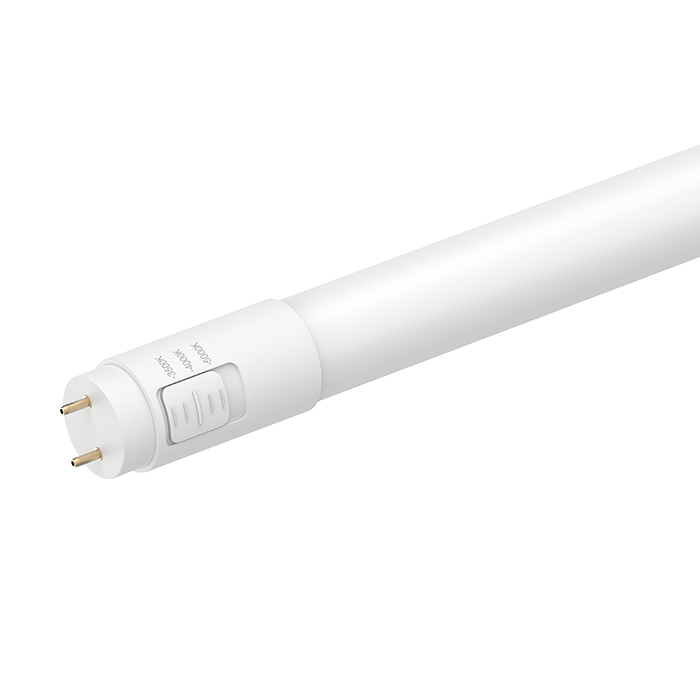

CCTCCT3 (35/40/50K)




Download Flyer BROCHURE



Description

Item Code
Description
Wattage
CCT
Lumens
Equiv. Watt
Length/Base
Wet/Damp
Listing
Spec
IES
4658
LED8T8/24FR10/8CCT5/AB/UNV
8W
5CCT
(27/30/35/40/50K)
1,000
17W
2' /Bi-Pin
IP20
4659
LED12T8/36FR15/8CCT5/AB/UNV
12W
5CCT
(27/30/35/40/50K)
1,500
25W
3' /Bi-Pin
IP20
4660
LED15T8/FR20/8CCT5/AB/UNV
15W
5CCT
(27/30/35/40/50K)
2,000
32W
4' /Bi-Pin
IP20
15W
3CCT
(35/40/50K)
2,050
32W
4' /Bi-Pin
Damp

Additional information

Weight 0.55 lbs
Dimensions 47.72 × 1.00 in
Wattage

CCT

CRI

Color

Voltage

Dimmable

Beam Angle

Photocell

Listings

,

Warranty

Download

SPEC SHEET BROCHURE

Accessories

Item Code
Order Code
Description
Data Spec
7337
BAEM25-170BC/347-C
25W Micro Inverter 120-347V with 12" Conduit
P10568
BALED-100W-T8AB-DIM
Dimming Module for 4616
