T8 LED Tubes (Type A & B Universal Design)
Selectable CCT3  / Bi-Pin Base / 4-ft

Item Code 4616
Code LED15T8/FR20/8CCT3/AB/UNV
Wattages 17W
Lumens 2,050
CCT CCT3 (35/40/50K)
Equiv.Wattages 32W



SKU: LED15T8/FR20/8CCT3/AB/UNV Categories: ,

Description

Features:


• DLC Standard
• UL/cUL
• NSF/ANSI Standard 2: Food Equipment and Splash Zone (Not for Direct Food Zone)
• Color Temperature: 3CCT(3500/4000/5000K)
• Voltage: 120-277V or FL Ballast*
• Input Current: 0.128A
• Power Factor: >0.9
• Beam Angle: 325°
• Dimmable with special dimming module
• CRI: >80
• Operating Temperature: – 4˚F – 113˚F
• Instant On
• Base: G13 Socket (Single+Double ended)
• Shatter-Proof Type: PET Coated
• Length: 4-ft
• 5 Year Warranty
• 50,000 hrs rated average life

Additional information

Weight 0.55 lbs
Dimensions 47.72 × 1.00 in
Tube Type

Shape

Base

Length

Wattage

CCT

CRI

Voltage

Beam Angle

Color

Dimmable

IP Rating

Photocell

Listings

, ,

Warranty

Stock

Download

TECH SHEET SPEC SHEET BROCHURE

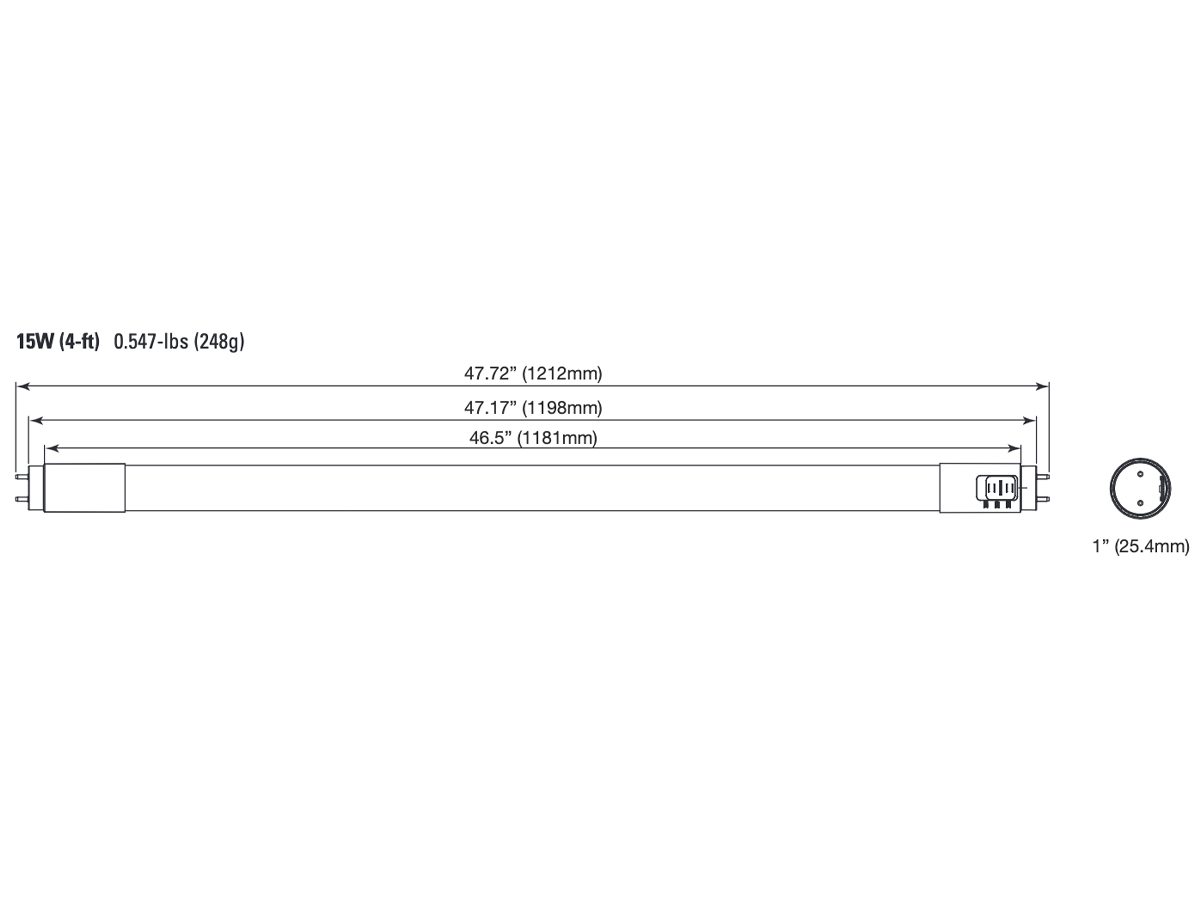

Dimensions

Weight: 0.55-lbs

Accessories

Item Code
Order Code
Description
Data Spec
7337
BAEM25-170BC/347-C
25W Micro Inverter 120-347V with 12" Conduit
P10568
BALED-100W-T8AB-DIM
Dimming Module for 4616
