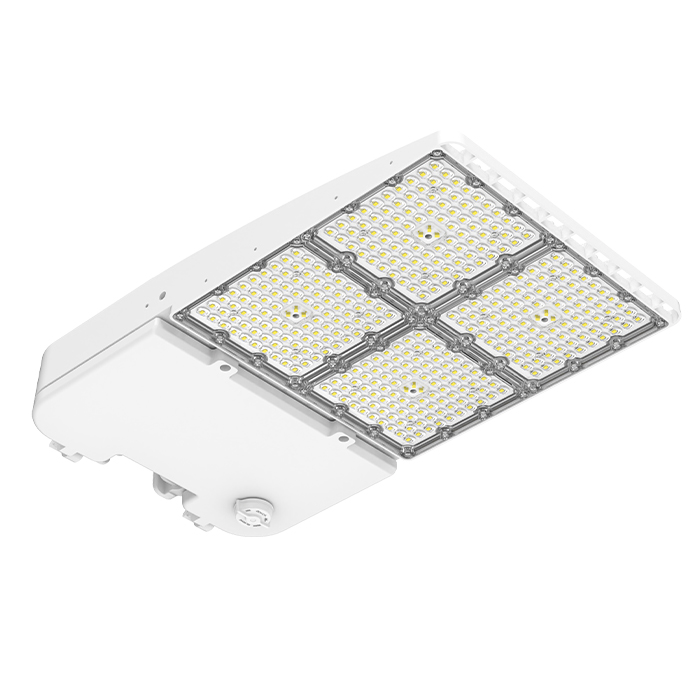

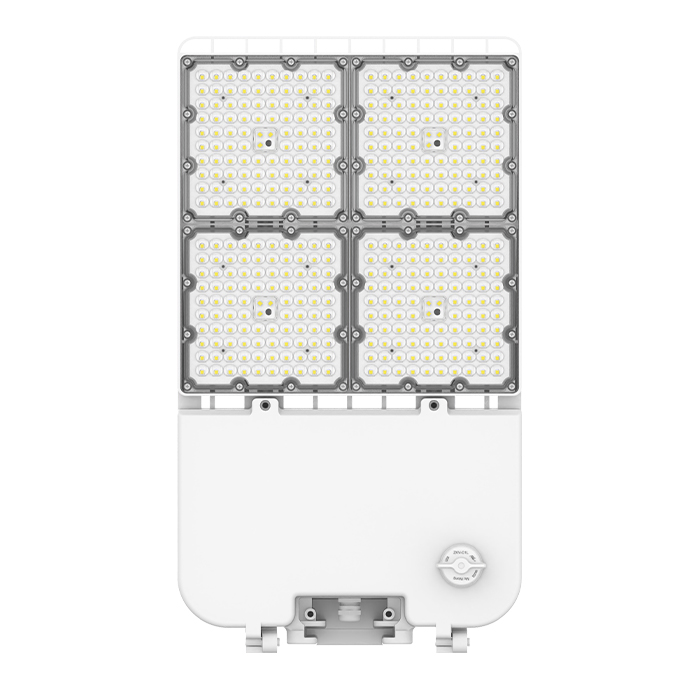

Slim Area Light w/Z10 Receptacle
IP66 Rated / CCT3 / Type 3 Lens

Item Code 9725
Code SAL340S/T3/8C3/WH/480-Z10
Wattages 200/270/340W
Lumens 28,000
37,800
47,600
CCT CCT3 (30/40/50K)
Equiv.Wattages 1000-1500W
Color White



SKU: SAL/340S/T3/8C3/WH/480-Z10 Categories: ,

Description

Features:


• DLC Premium
• IP65 Rated
• ETL/cETL Listed
• Wattage & Color Selectable
• Z10 Remote Ready


• Wattage: 200-340W
• Color Temp: CCT3 (30/40/50K)
• Voltage: 277-480V
• Surge Protection: 20KV
• Dimmable: 0-10V
• CRI >80
• Operating temperature: – 40°F – 122°F
• Beam: Distribution :Type 3 (Optional purchase available for Type 4, Type 5 Lens)
• Material: Die Cast Aluminum
• Finish: Epoxy Powder Coat
• Color: White
• 7 Year Warranty

Additional information

Weight 15.5 lbs
Dimensions 21.65 × 12.01 × 2.67 in
Wattage

, ,

CCT

CRI

Voltage

Color

Dimmable

IP Rating

Photocell

Sensor

Listings

,

Warranty

,

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILE BROCHURE

Dimensions

Weight:15.50-lbs

Accessories

Item Code
Order Code
Description
Data Spec
P10520
P10520 SEN-ANT-5-Z10-PC
Z10 Twist-Lock Photocell 12-24Vdc
- White
-
P10522
SEN-ANT-6-Z10
Z10 Twist-Lock PIR Motion
and Photocell Sensor, 0-10V,
12-24Vdc - White
-
P10316
P10316 SEN-BRI-RC100
Remote Programmer
-
P10523
MT-AL/PMA8/BZ
Mount - Area Light Adjustable Pole Mount 8" Bronze
P10525
MT-AL/PMA8/BK
Mount - Area Light Adjustable Pole Mount 8" Black
P10524
MT-AL/PMA8/WH
Mount - Area Light Adjustable Pole Mount 8" White
P10453
MT-AL/PM6/BZ
Mount - Area Light Pole Mount 6" Bronze
P10458
MT-AL/PM6/WH
Mount - Area Light Pole Mount 6" White
P10468
MT-AL/PM6/BK
Mount - Area Light Pole Mount 6" Black
P10455
MT-AL/SF/BZ
Mount - Area Light Slip Fitter Bronze
P10460
MT-AL/SF/WH
Mount - Area Light Slip Fitter White
P10470
MT-AL/SF/BK
Mount - Area Light Slip Fitter Black
P10473
MT-AL/WM/BZ
Mount - Slim Area Light Wall Mount Bronze
P10474
MT-AL/WM/WH
Mount - Slim Area Light Wall Mount White
P10475
MT-AL/WM/BK
Mount - Slim Area Light Wall Mount Black
P10456
MT-SAL/YK12/BZ
Mount - SAL Yoke Mount 12" Bronze
P10461
MT-SAL/YK12/WH
Mount - SAL Yoke Mount 12" White
P10471
MT-SAL/YK12/BK
Mount - SAL Yoke Mount 12" Black
P10481
GSFB-SAL/BZ
Glare Shield - SAL Bronze 75W-150W (240W-320W requires 2 per fixture)
-
P10482
GSFB-SAL/WH
Glare Shield - SAL White 75W-150W (240W-320W requires 2 per fixture)
-
P10483
GSFB-SAL/BK
Glare Shield - SAL Black 75W-150W (240W-320W requires 2 per fixture)
-
P10466
LENS-SAL-T3-G1
Type 3 Lens for SAL 25W-150W requires 2 per fixture (240W-320W requires 4 per fixture)
-
P10467
LENS-SAL-T4-G1
Type 4 Lens for SAL 75W-150W requires 2 per fixture (240W-320W requires 4 per fixture)
-
P10499
LENS-SAL-T5-G1
Type 5 Lens for SAL 75W-150W requires 2 per fixture (240W-320W requires 4 per fixture)
-
P10500
LENS-SAL-T3-BLC-G1
Type 3 Back Light Cut Lens for SAL 75W-150W requires 2 per fixture (240W-320W requires 4 per fixture)
-
P10053
SEN-PHO-LK-MT-SRT
Twist Lock Photocell Shorting Cap 120-480V 3 Prong
-
P10389
SPD-L-10KV-277
Surge Protection 10KV 120-277V
P10390
SPD-L-20KV-277
Surge Protection 20KV 120-277V
P10391
SPD-L-20KV-480
Surge Protection 20KV 347-480V
