BLD

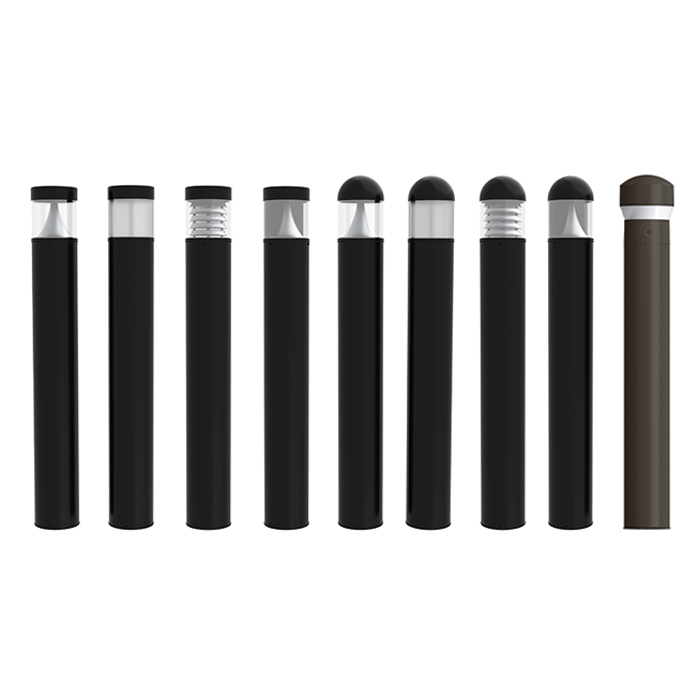

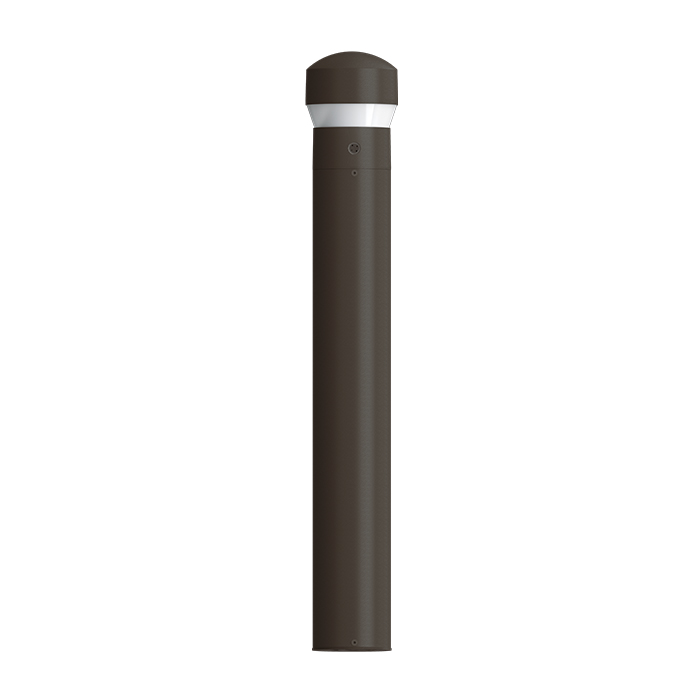

5.5 Bollard with CCT3 and Selectable Wattages

The naturaLED® 5.5″ BLD bollard light is an essential solution for bright pathway lighting, enhancing pedestrian safety by ensuring well-lit sidewalks and pavement, reducing the risk of trips and falls. This high-quality DLC-certified bollard fixture delivers glare-free illumination and offers selectable wattages and color temperatures, replacing up to 2,100 lumens.

Spec Sheet Installation Guide

Category Bollards
Wattage Selectable
CCT CCT3(30/40/50K)
Lumens 600~1,260
Voltage 120-277V

Categories: ,

Description

Item Code
Description
Wattage
CCT
Lumens
Size
Color
Photocell
Listing
Spec
IES
7742
FX5.5BLD18SW/42RDM/8CCT3/BK-PH
10W
15W
18W
3CCT
(30/40/50K)
700
1,050
1,260
6.5"x42"
Black
-
-
7745
FX5.5BLD18SW/32RDM/8CCT3/BK-PH
10W
15W
18W
3CCT
(30/40/50K)
700
1,050
1,260
6.5"x32"
Black
-
-
7669
FX5.5BLD18SW/42RDM/8CCT3/BZ-PH
10W
15W
18W
3CCT
(30/40/50K)
700
1,050
1,260
6.5"x42"
Bronze
-
-
7740
FX5.5BLD18SW/42RLO/8CCT3/BK
10W
15W
18W
3CCT
(30/40/50K)
600
900
1,080
5.5"x42"
Black
-
-
-
7741
FX5.5BLD18SW/42RLF/8CCT3/BK
10W
15W
18W
3CCT
(30/40/50K)
500
750
900
5.5"x42"
Black
-
-
-
7667
FX5.5BLD18SW/42RLO/8CCT3/BZ
10W
15W
18W
3CCT
(30/40/50K)
600
900
1,080
5.5"x42"
Bronze
-
-
-
7668
FX5.5BLD18SW/42RLF/8CCT3/BZ
10W
15W
18W
3CCT
(30/40/50K)
600
900
1,080
5.5"x42"
Bronze
-
-
-
9643
FX5.5BLD18SW/41FCN/8CCT3/BK
10W
15W
18W
3CCT
(30/40/50K)
1,228
1,875
2,251
5.5"x41"
Black
-
9644
FX5.5BLD18SW/41FLV/8CCT3/BK
10W
15W
18W
3CCT
(30/40/50K)
1,200
1,800
2,160
5.5"x41"
Black
-
-
9645
FX5.5BLD18SW/42RCN/8CCT3/BK
10W
15W
18W
3CCT
(30/40/50K)
1,228
1,875
2,251
5.5"x42"
Black
-
9646
FX5.5BLD18SW/42RLV/8CCT3/BK
10W
15W
18W
3CCT
(30/40/50K)
1,200
1,800
2,160
5.5"x42"
Black
-
-
7743
FX5.5BLD18SW/32RLO/8CCT3/BK
10W
15W
18W
3CCT
(30/40/50K)
600
900
1,080
5.5"x32"
Black
-
-
-
7744
FX5.5BLD18SW/32RLF/8CCT3/BK
10W
15W
18W
3CCT
(30/40/50K)
500
750
900
5.5"x32"
Black
-
-
-
9699
FX5.5BLD18SW/32RCN/8CCT3/BK
10W
15W
18W
3CCT
(30/40/50K)
1,228
1,875
2,251
5.5"x 32"
Black
-
-
9700
FX5.5BLD18SW/32RLV/8CCT3/BK
10W
15W
18W
3CCT
(30/40/50K)
1,200
1,800
2,160
5.5"x 32"
Black
-
-
-
9697
FX5.5BLD18SW/31FCN/8CCT3/BK
10W
15W
18W
3CCT
(30/40/50K)
1,228
1,875
2,251
5.5"x 31"
Black
-
-
9698
FX5.5BLD18SW/31FLV/8CCT3/BK
10W
15W
18W
3CCT
(30/40/50K)
1,200
1,800
2,160
5.5"x 31"
Black
-
-
-

Additional information

Weight 11 lbs
Dimensions 55-6.4 × 5.5 × 32-42 in
Wattage

,

CCT

Color

,

Voltage

Dimmable

Beam Angle

IP Rating

Photocell

,

Sensor

Listings

,

Warranty

Download

Spec Sheet Installation Guide

Video



Accessories

Item Code
Order Code
Description
Data Spec
P10068
PLT-5.5BLD/T3/BK
Plate - Type 3 plate
-
P10533
FX5.5BLD18SW/RLO/8CCT3/BK

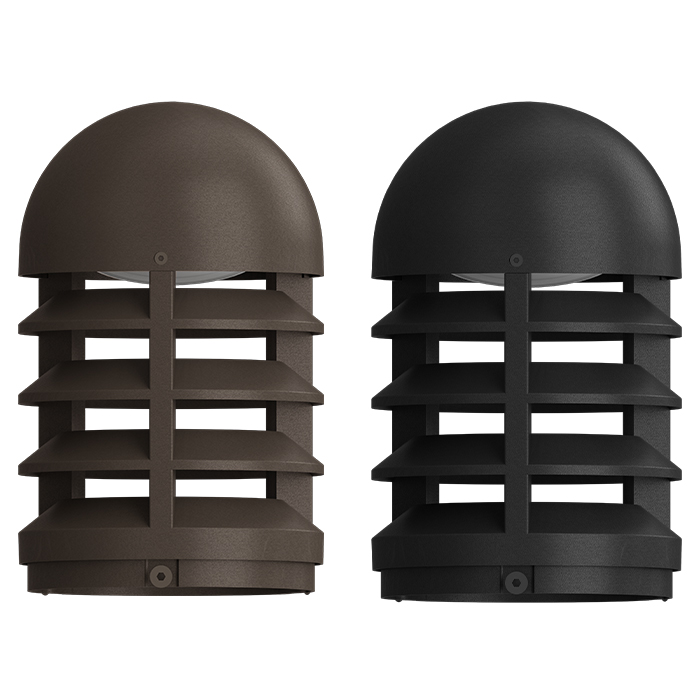

Round Louver Open Lens Black
P10536
FX5.5BLD18SW/RLO/8CCT3/BZ
Round Louver Open Lens Bronze
P10534
FX5.5BLD18SW/RLF/8CCT3/BK
Round Louver Frosted Lens Black
P10537
FX5.5BLD18SW/RLF/8CCT3/BZ
Round Louver Frosted Lens Bronze
P10535
FX5.5BLD18SW/RDM/8CCT3/BK-PHO
Round Dome Black with Photocell
P10538
FX5.5BLD18SW/RDM/8CCT3/BZ-PHO
Round Dome Bronze with Photocell
