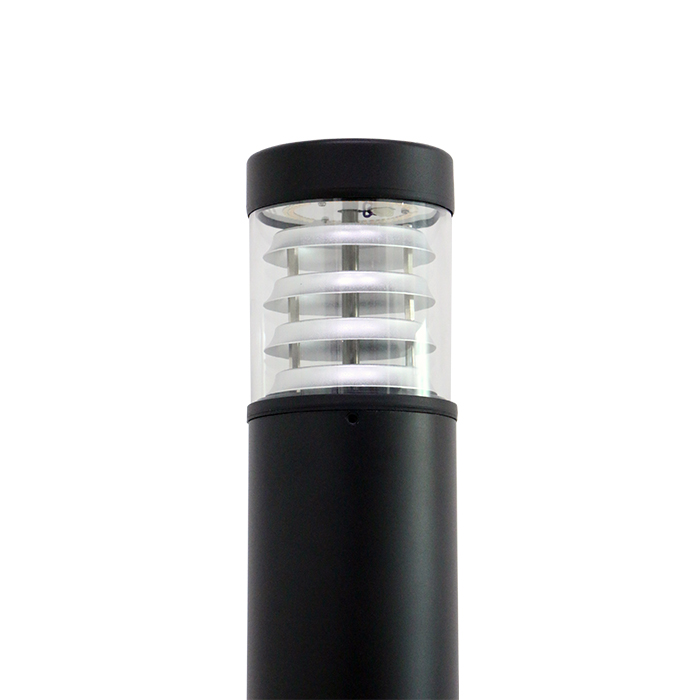

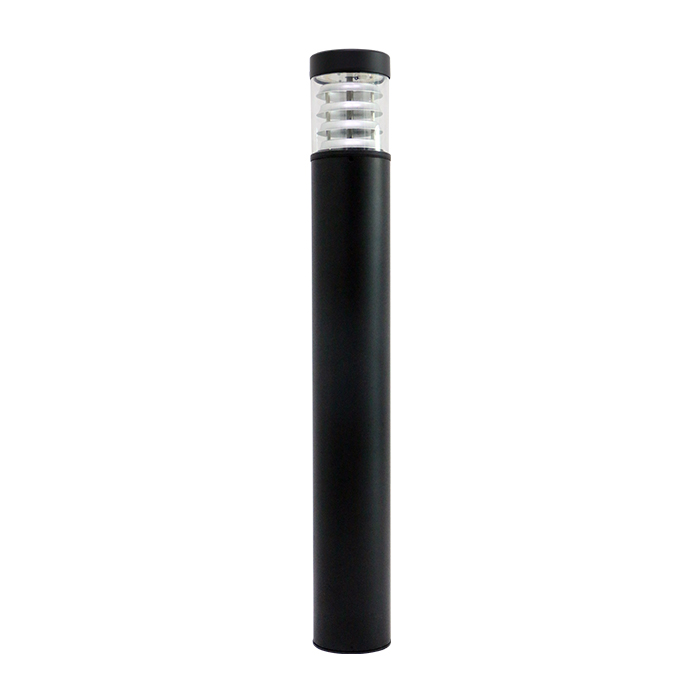

Flat Louver Bollard (BLD)
10/15/18W – CCT3 – [5.5″x41″]

Item Code 9644
Code FX5.5BLD18SW/41FLV/8CCT3/BK
Wattages 10/15/18W
Lumens 1,200
1,800
2,160
CCT 3CCT (30/40/50K)
Equiv.Wattages 100W
Color Black



SKU: FX5.5BLD18SW/41FLV/8CCT3/BK Categories: ,

Description

Features:


• IP65 Rated
• ETL, cETL Listed
• Wattage & Color Selectable


• Wattages: 10/15/18W
• Color Temp: 3CCT (30/40/50K)
• Voltage: 120-277V
• Surge Protection: 10KV
• Dimmable: 0-10V
• CRI>80
• Operating Temperature: -40°F – 122°F
• Beam Angle: 360°
• Material: Die Cast Aluminum
• Finish: Corrosion-resistant powder coating
• Color: Black (RAL#9005)
• Energy savings up to 80% compared to metal halide bollards
• 5.5″ Diameter x 41″ Height
• Warranty: 5 Year
• Built In Photocell Sensor Included
• Optional for Purchase: Type 3 Plate, Bollard Body

Additional information

Weight 11.0 lbs
Dimensions 5.5 × 5.5 × 40.30 in
Wattage

,

CCT

CRI

Voltage

Color

Dimmable

Beam Angle

IP Rating

Photocell

Sensor

Listings

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILE

Dimensions

Weight: 11-lbs

Accessories

Item Code
Order Code
Description
Data Spec
P10068
PLT-5.5BLD/T3/BK
Plate - Type 3 plate
-
P10533
FX5.5BLD18SW/RLO/8CCT3/BK
Round Louver Open Lens Black
P10536
FX5.5BLD18SW/RLO/8CCT3/BZ
Round Louver Open Lens Bronze
P10534
FX5.5BLD18SW/RLF/8CCT3/BK
Round Louver Frosted Lens Black
P10537
FX5.5BLD18SW/RLF/8CCT3/BZ
Round Louver Frosted Lens Bronze
P10535
FX5.5BLD18SW/RDM/8CCT3/BK-PHO
Round Dome Black with Photocell
P10538
FX5.5BLD18SW/RDM/8CCT3/BZ-PHO
Round Dome Bronze with Photocell
