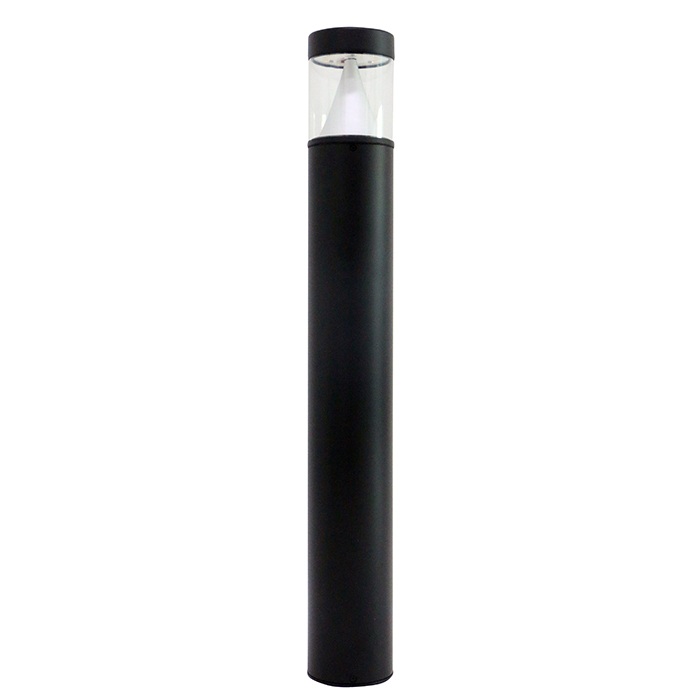

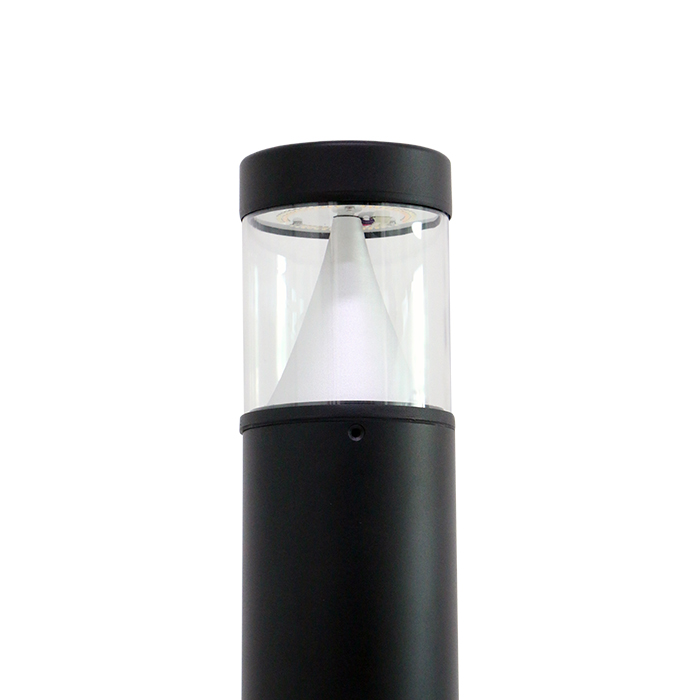

Flat Cone Bollard (BLD)
10/15/18W – CCT3 – [5.5″x31″]

Item Code 9697
Code FX5.5BLD18SW/31FCN/8CCT3/BK
Wattages 10/15/18W
Lumens 1,228
1,875
2,251
CCT 3CCT (30/40/50K)
Equiv.Wattages 100W
Color Black



SKU: FX5.5BLD18SW/31FCN/8CCT3/BK Categories: ,

Description

Features:


• DLC Premium
• IP65 Rated
• ETL/cETL Listed


• Wattage & Color Selectable
• Wattage: 10-18W
• Color Temp: CCT3 (30/40/50K)
• Voltage: 120-277V
• Surge Protection: 10KV
• Dimmable: 0-10V
• CRI >80
• Operating temperature: – 40°F – 122°F
• Beam Angle: 360°
• Energy savings up to 80% compared to metal halide bollards
• 5.5” diameter makes easy replacement for traditional bollards
• Material: Die Cast Aluminum
• Color: Black (RAL#9005), Bronze
• Warranty: 5-Year
• Optional Accessories for Purchase: Type 3 Plate, Bollard Body

Additional information

Weight 11.0 lbs
Dimensions 5.4 × 5.4 × 31 in
Wattage

,

CCT

CRI

Voltage

Color

Dimmable

Beam Angle

IP Rating

Photocell

Sensor

Listings

,

Warranty

Stock

Download

SPEC SHEET INSTALLATION .IES FILE

Dimensions

Weight: 11-lbs

Accessories

Item Code
Order Code
Description
Data Spec
P10068
PLT-5.5BLD/T3/BK
Plate - Type 3 plate
-
P10533
FX5.5BLD18SW/RLO/8CCT3/BK
Round Louver Open Lens Black
P10536
FX5.5BLD18SW/RLO/8CCT3/BZ
Round Louver Open Lens Bronze
P10534
FX5.5BLD18SW/RLF/8CCT3/BK
Round Louver Frosted Lens Black
P10537
FX5.5BLD18SW/RLF/8CCT3/BZ
Round Louver Frosted Lens Bronze
P10535
FX5.5BLD18SW/RDM/8CCT3/BK-PHO
Round Dome Black with Photocell
P10538
FX5.5BLD18SW/RDM/8CCT3/BZ-PHO
Round Dome Bronze with Photocell
