Retrofit Recessed Ceiling Downlights (RL)
10Watt – CCT5 – [4-inch]

Item Code 9526
Code LED4RL10-75L9CCT5
Wattages 10W
Lumens 750
CCT CCT5 (27/30/35/40/50K)
Equiv.Wattages 80W



SKU: LED4RL10-75L9CCT5 Categories: ,

Description

Features:


• Energy Star Qualified
• Wet Location
• ETL  Listed
• IC Rated
• JA8/Title 24


• Wattages: 10W
• Color Temp: CCT5 (27/30/35/40/50K)
• Voltage: 120V
• Surge Protection: 1.5KV
• Dimmable
• CRI>90
• Operating Temperature: 5°F – 104°F
• Beam Angle: Flood
• Color: White
• Warranty: 5 Year /50,000 average life hours
• Diameter: 4-inch
• Recommended ceiling height at 8-10ft
• Optional for Purchase: Emergency Driver

Additional information

Weight 0.60 lbs
Dimensions 5.09 × 5.09 × 3.11 in
Wattage

CCT

CRI

Voltage

Color

Dimmable

Beam Angle

Diameter

4-inch

Shape

Round

IP Rating

Photocell

Sensor

Listings

, ,

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILE BROCHURE

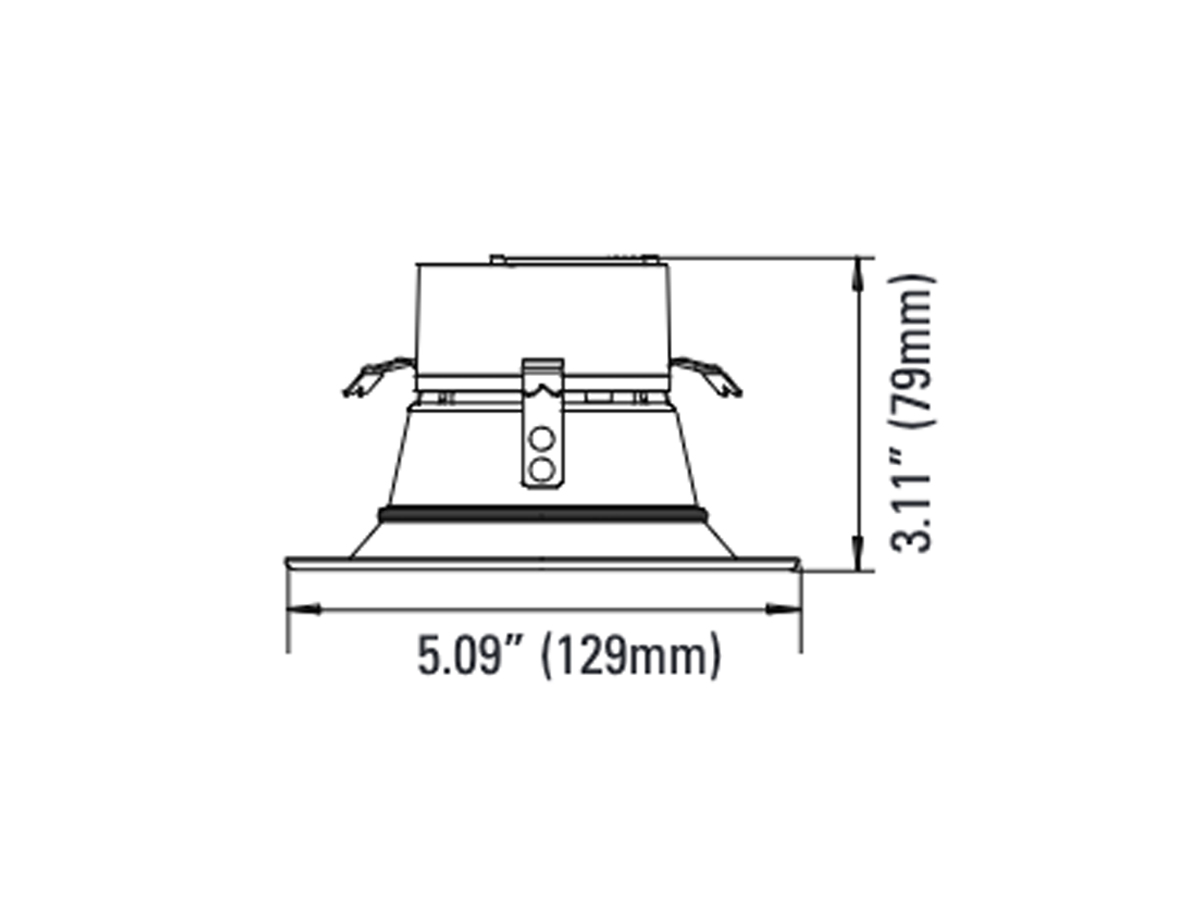

Dimensions

Weight:0.60-lbs

Accessories

Item Code
Order Code
Description
Data Spec
7337
BAEM25-170BC/347-C
25W Micro Inverter 120-347V with 12" Conduit
P10404
RT-6RL15-BZ
Bronze Recessed Trim 5"/6" for 9527
-
P10170
RT-4RL9-BK
Black Recessed Trim 4" for 9526, 7688, 7689, 7690
-
P10173
RT-6RL15-BK
Black Recessed Trim 5"/6" for 9527, 7691, 7692, 7693
-
P10171
RT-4RL9-CH
Chrome Recessed Trim 4" for 9526, 7688, 7689, 7690
-
P10174
RT-6RL15-CH
Chrome Recessed Trim 5"/6" for 9527, 7691, 7692, 7693
-
P10172
RT-4RL9-CH-WH
Chrome White Recessed Trim 4" for 9526, 7688, 7689, 7690
-
P10175
RT-6RL15-CH-WH
Chrome White Recessed Trim 5"/6" for 9527, 7691, 7692, 7693
-
P10176
RTS-4RL9-WH
White Square 4" Recessed Trim for 9526, 7688, 7689, 7690
-
P10177
RTS-6RL15-WH
White Square 5"/6" Recessed Trim for 9527, 7691, 7692, 7693
-
