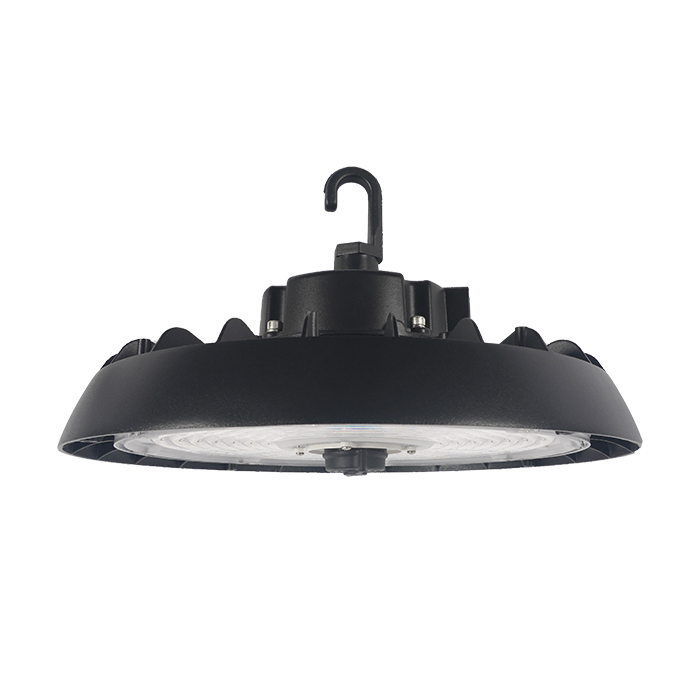

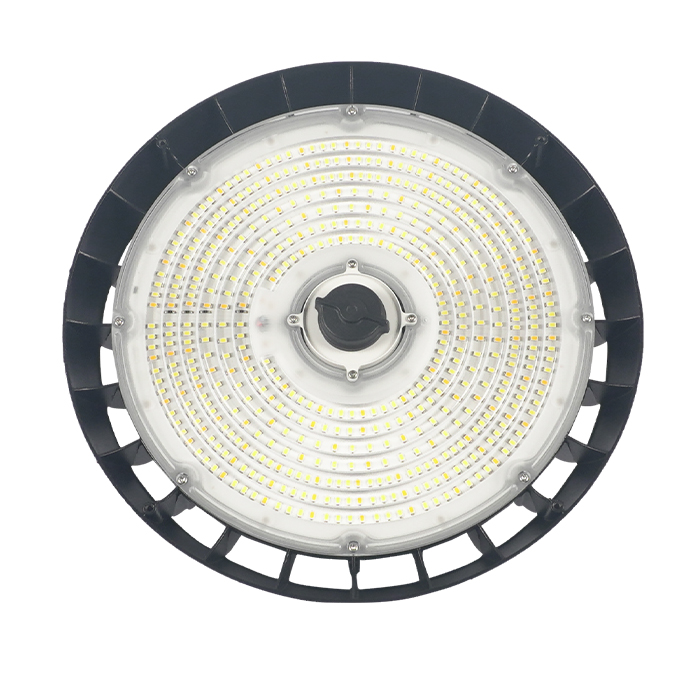

HBR Round High Bay 13-inch
150/200/240W – 2CCT [Z10 Ready]

Item Code 9685
Code HBR13/240S/110/8C2/BK-Z10
Wattages 150/200/240W
Lumens 21,000
28,742
33,987
CCT CCT2 (40/50K)
Equiv.Wattages 575-1000W



SKU: HBR13/240S/110/8C2/BK-Z10 Categories: ,

Description

Features:


• DLC Premium
• IP66 Rated
• ETL / ETL Sanitation Listed
• Wattage & Color Selectable
• Z10 Receptacle Pre-installed


• Wattages: 150/200/240W
• Color Temp: 2CCT (4000/5000K)
• Voltage: 120-277V
• Power Factor: >0.9
• Surge Protection: 6KV
• Beam Angle: 110°
• Dimmable: 0-10V
• CRI: >80
• Operating temperature: – 40°F – 122°F
• Diameter: 13″
• Material: Die-cast aluminum
• Finish: Corrosion-resistant powder coating
• Color: Black
• Power Cable Length: 6-ft, Hook Included
• Warranty: 5 Year
• Optional for Purchase: Reflector, Motion Controls, Pendant Mount Adapter, Emergency Battery Back Up Inverter100

Additional information

Weight 5.82 lbs
Dimensions 12.8 × 12.8 × 7.30 in
Wattage

, ,

CCT

CRI

Voltage

Beam Angle

Color

Dimmable

IP Rating

Photocell

Sensor

Listings

, ,

Warranty

Stock

Download

TECH SHEET SPEC SHEET  INSTALLATION .IES FILE BROCHURE

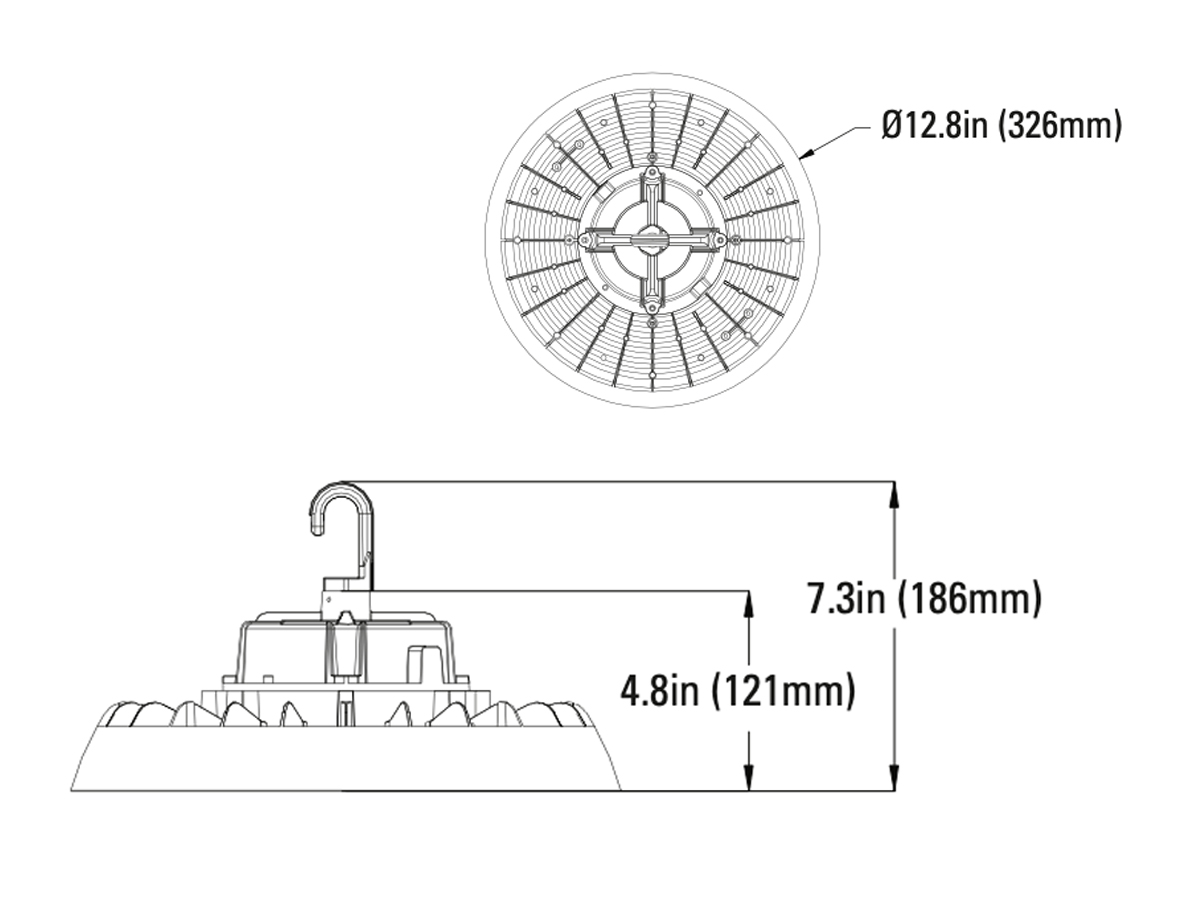

Dimensions

Weight:5.82-lbs

Accessories

Item Code
Order Code
Description
Data Spec
P10376
CVR-11HBR100-PC
(Refractor for 9683 &9684)
(1/2” to 3/4” NPT Adaptor for Pendant Mount)
P10377
CVR-13HBR150-PC
(Refractor for 9685 & 9705)
7344
BAEM40-HBR-170BC/347
(40W 120-347V Emergency Battery Back Up Inverter)
-
P10594
BAEM-RT-EMHBR
(Emergency Test Remote for 7344)
-
P10316
SEN-BRI-RC100
(Remote Programmer for P10371)
-
P10569
SEN-ANT-6-Z10-EM
(Remote Programmable PIR Motion
Sensor 0-10V)
-
P10191
ADP-1/2-3/4NPT
(1/2” to 3/4” NPT Adaptor for Pendant Mount)
-
