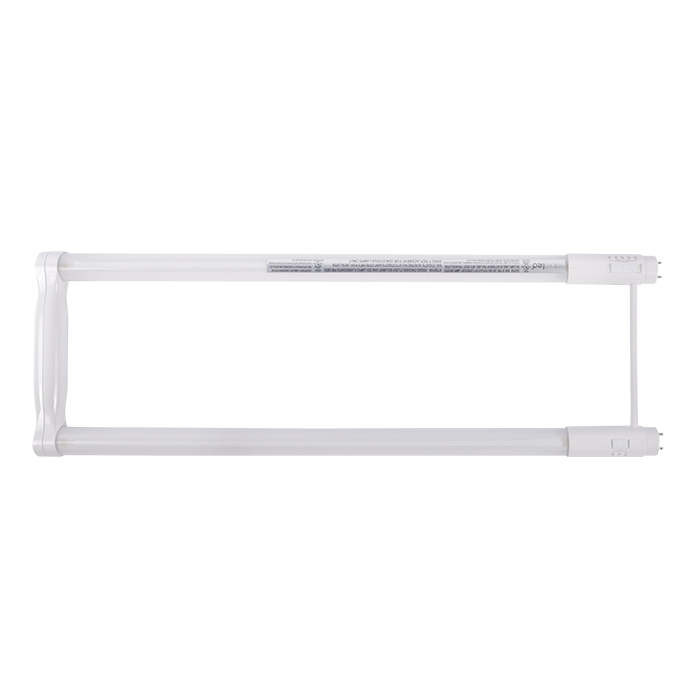

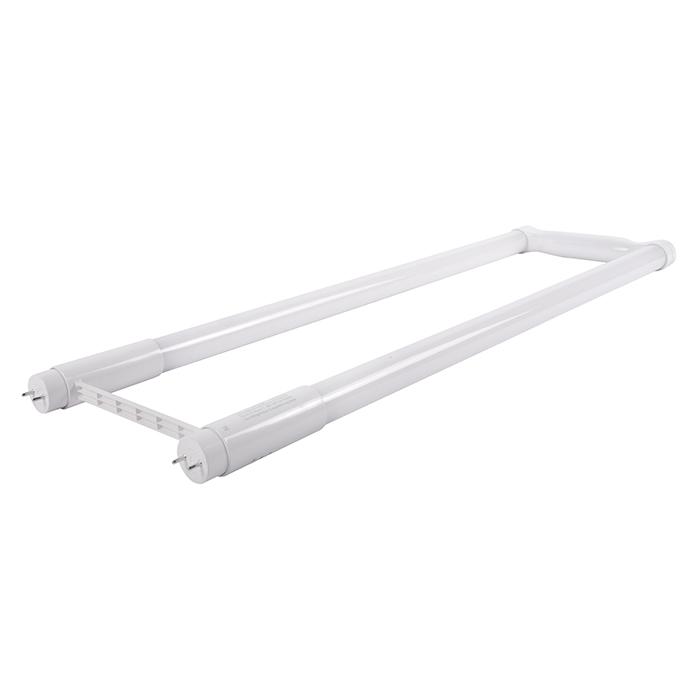

T8 U-Bend LED Tubes (Type A & B Universal Design)
Selectable CCT5  / Bi-Pin Base / U-Bend

Item Code 4614
Code LED15SWT8U/24FR22/8CCT5AB/UNV
Wattages 11.5W
13W
15W
Lumens 1,800
2,000
2,200
CCT CCT5 (30/35/40/50/65K)
Equiv.Wattages 32W



SKU: LED15SWT8U/24FR22/8CCT5AB/UNV Categories: , ,

Description

Features:


• DLC Standard
• UL/cUL Listed
• NSF Certified

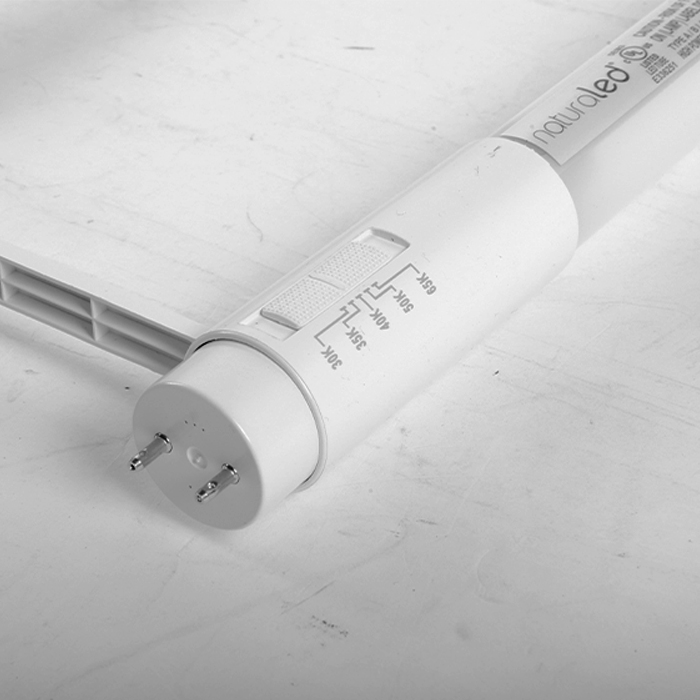

• Color Temperature: 5CCT(3000/3500/4000/5000/6500K)
• Voltage: 120-277V or FL Ballast*
• Input Current: 0.1A
• Power Factor: >0.9
• Beam Angle: 210°
• CRI: >80
• Operating Temperature: – 4˚F – 113˚F
• Instant On
• Base: G13
• Length: 2-ft
• 5 Year Warranty
• 50,000 hrs rated average life

Additional information

Weight 0.54 lbs
Dimensions 22.40 × 1.25 in
Tube Type

,

Shape

T8 U-Bend

Base

Length

Wattage

CCT

CRI

Voltage

Beam Angle

Color

Dimmable

IP Rating

Photocell

Listings

, ,

Warranty

Download

TECH SHEET SPEC SHEET BROCHURE

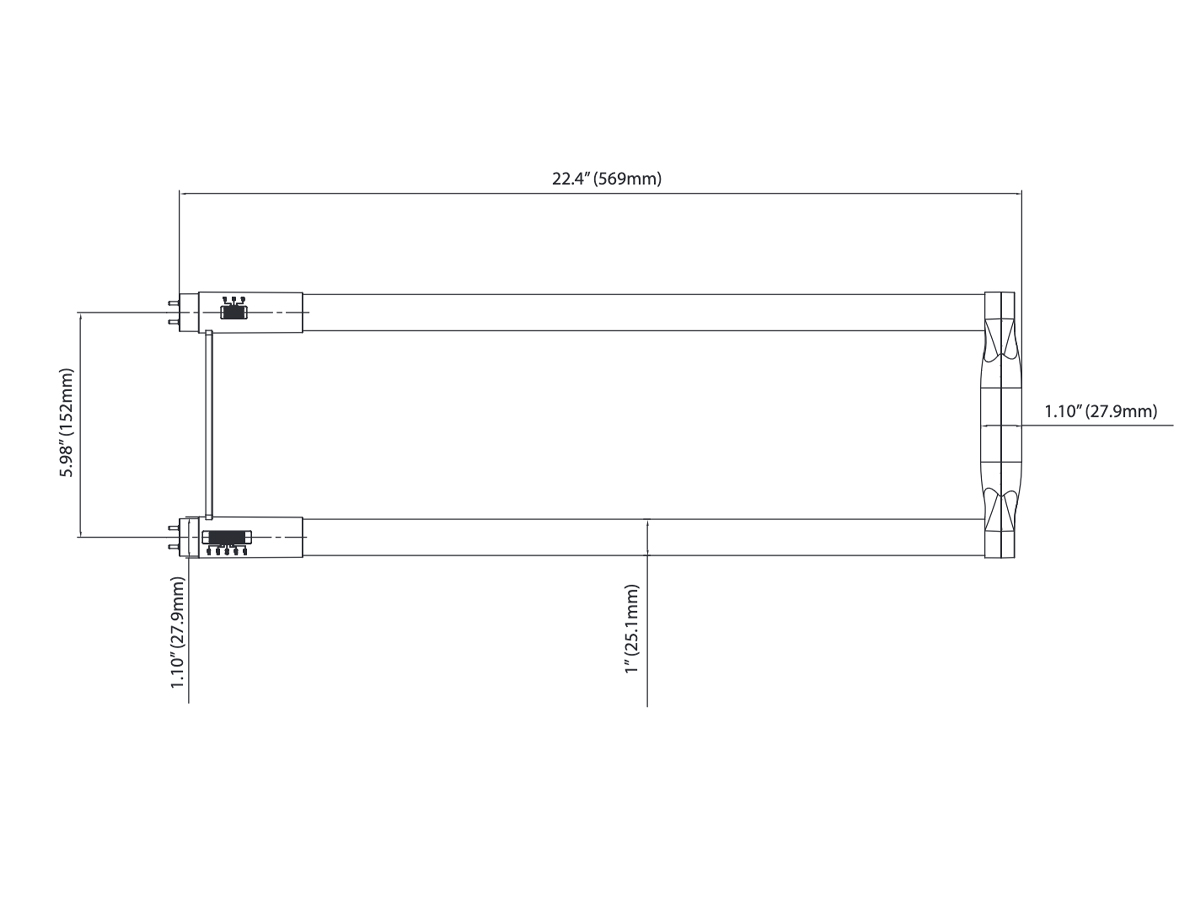

Dimensions

Weight:0.54-lbs
