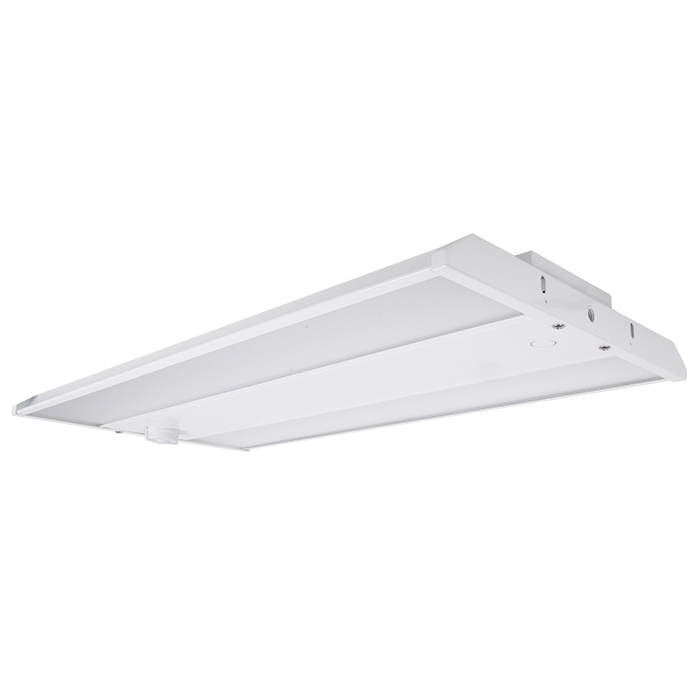

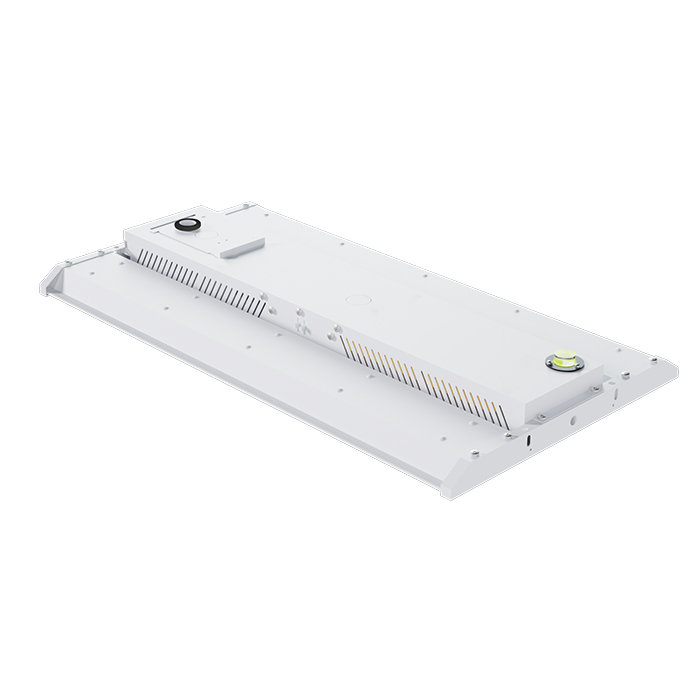

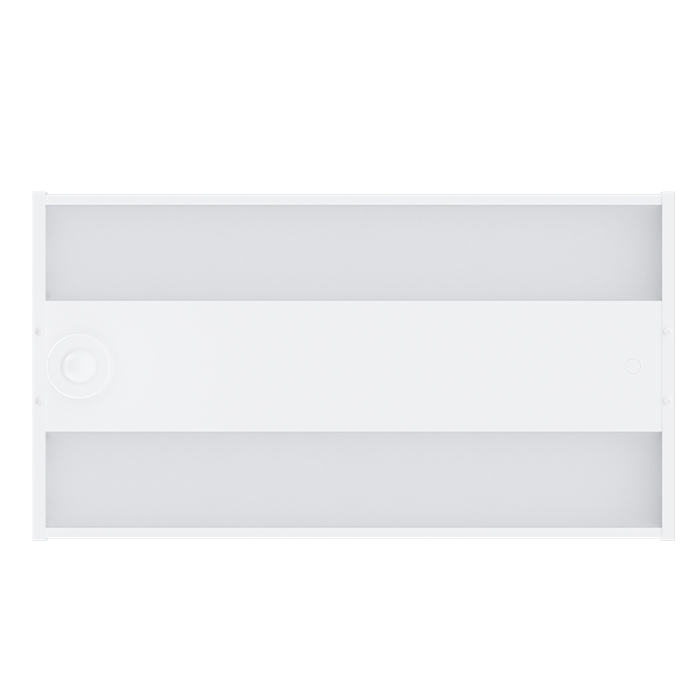

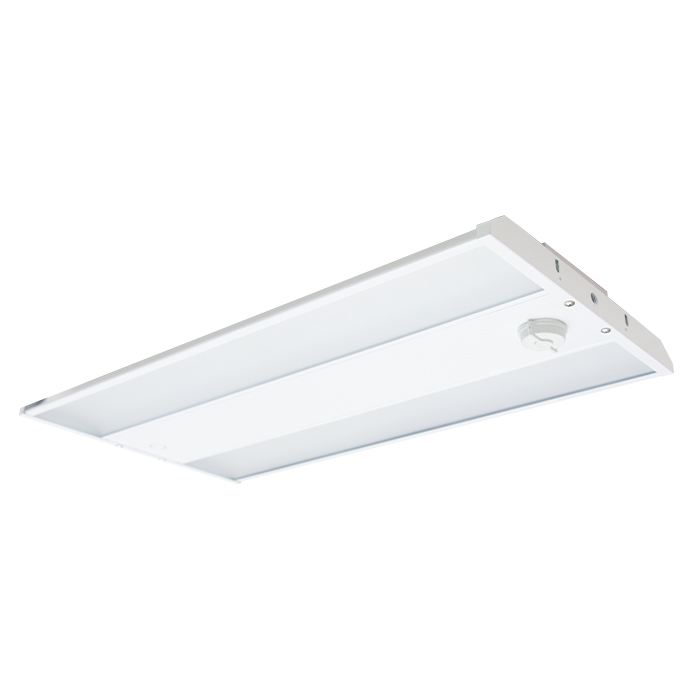

HBL Linear High Bay Z10 Control-Ready (12″x22″)
Selectable Wattage & CCT3 / 0-10V / Damp Location

Item Code9687
CodeHBL150S/22FR/8C3-Z10
Wattages90/120/50W
Lumens12,150
16,200
20,250
CCTCCT3 (35/40/50K)
Equiv.Wattages400-575W



SKU: HBL150S/22FR/8C3-Z10 Categories: ,

Description

Features:


• DLC Premium
• Damp Location
• ETL/cETL Listed
• Selectable Wattages (90/120/150W)
• Color Temp: 3CCT (35/40/50K)
• Voltage: 120-277V
• Powerfactor >0.9
• Beam Angle: 100°
• Dimmable: 0-10V
• CRI: 80
• Operating Temperature: – 40˚F – 122˚F
• Z10 Receptacle included
• Excellent thermal design / Select binning for consistent color
• Minimum glare with diffused polycarbonate lens
• Available in 12”x22” configurations
• Material: extruded aluminum housing and epoxy powder coat
• 5 Year Warranty
• Optional for purchase: yoke mount, motion sensor, photocell, emergency driver

Additional information

Weight5.51 lbs

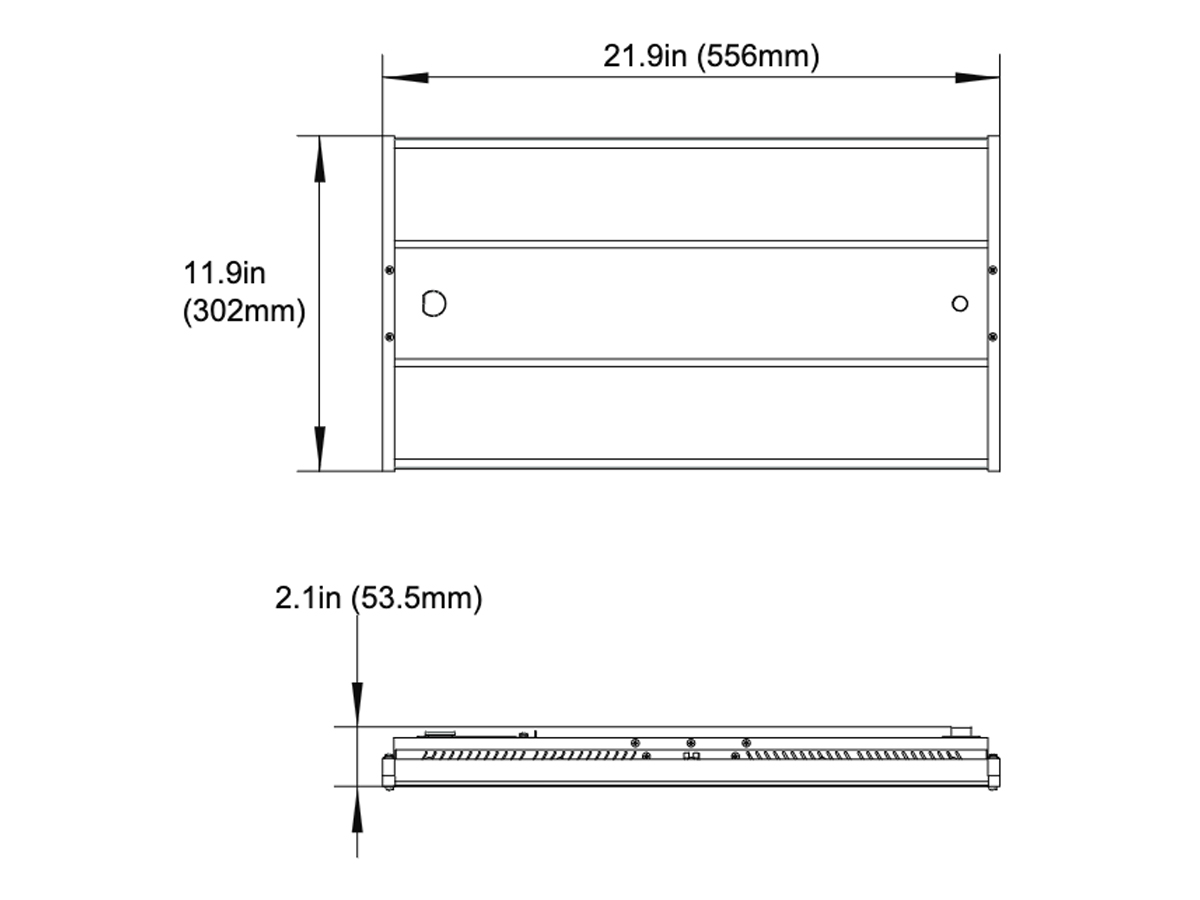

Dimensions21.90 × 11.90 × 2.10 in
Wattage

, ,

CCT

CRI

Voltage

Beam Angle

Color

Dimmable

Sensor

IP Rating

Photocell

Listings

,

Warranty

Stock
