Retrofit Recessed Ceiling Downlights (RL)
9Watt -5000K – [4-inch]

Item Code 7690
Code LED4RL9-54L950
Wattages 9W
Lumens 540
CCT 5000K
Equiv.Wattages 60W



SKU: LED4RL9-54L950 Categories: ,

Description

Features:


• Energy Star Qualified
• Damp Location
• UL  Listed
• JA8/Title 24
• Certified Air-Tight per ASTM E283-04


• Wattages: 9W
• Color Temp: 5000K
• Voltage: 120V
• Dimmable
• CRI>90
• Operating Temperature: -4°F – 104°F
• Beam Angle: Flood
• Color: White
• Warranty: 5 Year
• Diameter: 4-inch
• Uniform light distribution and consistent color
• Built-in power connector with adjustable torsion clips
• Recommended ceiling height at 8-10ft
• Optional for Purchase: GU24 Base, Trims

Additional information

Weight 0.93 lbs
Dimensions 5.00 × 5.00 × 3.50 in
Wattage

CCT

CRI

Voltage

Color

Dimmable

Beam Angle

Diameter

4-inch

Shape

Round

IP Rating

Photocell

Sensor

Listings

,

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILE BROCHURE

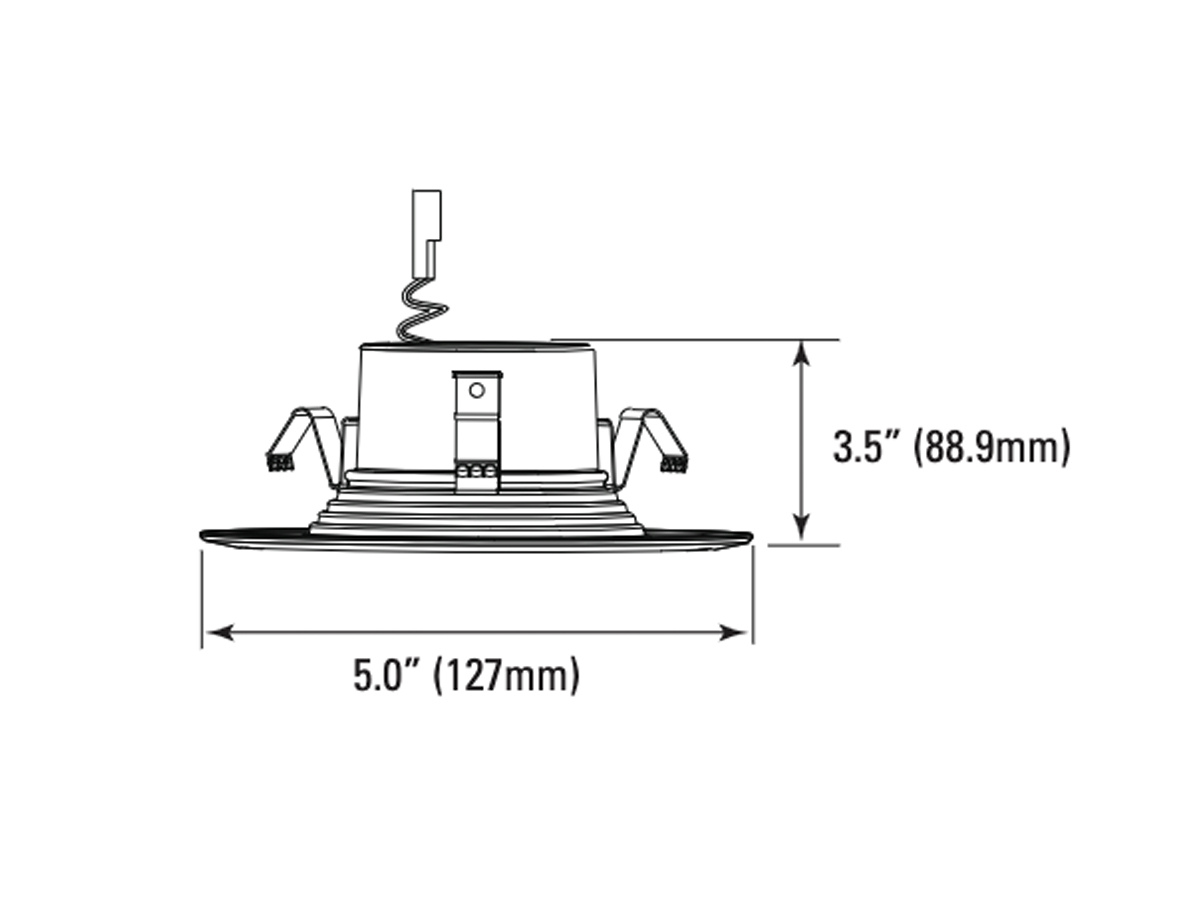

Dimensions

Weight:0.93-lbs

Accessories

Item Code
Order Code
Description
Data Spec
7337
BAEM25-170BC/347-C
25W Micro Inverter 120-347V with 12" Conduit
P10029
ADP-RLGU24-N
GU24 Socket Adaptor
-
P10057
RT-4RL-BK
Black 4" Recessed Trim Fits 7567, 7578, 7580, 7198, 7093
-
P10060
RT-6RL-BK
Black 5"/6" Recessed Trim Fits 7199
-
P10058
RT-4RL-CH
Chrome 4" Recessed Trim Fits 7567, 7578, 7580, 7198, 7093
-
P10061
RT-6RL-CH
Chrome 5"/6" Recessed Trim Fits 7199
-
P10082
RT-4RL-CH-WH
Chrome & White 4" Recessed Trim Fits 7567, 7578, 7580, 7198, 7093
-
P10083
RT-6RL-CH-WH
Chrome & White 5"/6" Recessed Trim Fits 7199
-
P10059
RT-4RL-BZ
Bronze 4" Recessed Trim Fits 7198
-
P10062
RT-6RL-BZ
Bronze 5"/6" Recessed Trim Fits 7199
-
P10084
RTS-4RL-WH
White Square 4" Recessed Trim Fits 7567, 7578, 7580, 7198, 7093
-
P10085
RTS-6RL-WH
White Square 5"/6" Recessed Trim Fits 7199
-
