• DLC Standard
• Damp Location
• ETL Listed
• Selectable Wattages (20/30/36W)
• Selectable Color Temp: 3CCT (3500K/4000K/5000K)
• Voltage: 120-277V
• Power Factor: >0.9
• Surge Protection: 2KV
• Beam Angle: 115°
• Dimmable: 0-10V
• CRI: 80
• Operating temperature: – 4°F – 104°F
• Easy installation for retrofit replacement
• Size: 2-ft
• Material: Steel and PC lens
• 5 Year Warranty
• Optional for Purchase: Emergency Driver, Motion Sensor, Flange Mount Kit
| Weight | 8.00 lbs |
|---|---|

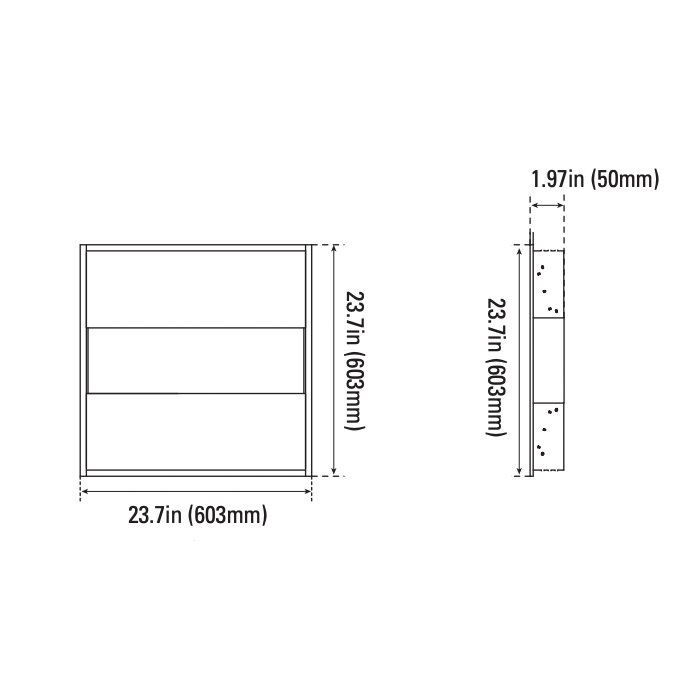

| Dimensions | 23.7 × 23.7 × 1.97 in |
| Wattage | |
| CCT | |
| CRI | |
| Voltage | |
| Color | |
| Dimmable | |
| IP Rating | |
| Photocell | |
| Sensor | |
| Listings | |
| Warranty | |
| Stock |
Weight:8.00-lbs
Image | Item Code | Order Code | Description | Data Spec |
|---|---|---|---|---|
K7336593 | FXTFSW-BAEM-MT-G1 | LED Emergency Driver for 100-277V with a mounting plate for Troffer | - |
|
K438380 | SEN-HB001VCR/BA12V | Remote Programmable Microwave Motion Sensor 0-10V Bi-Level Internal 120-277V | - |
|
 | P10417 | MT-2X2BOX-3.0IN | 3.0" Height 2x2 Surface Mount Kit for Back-Lit Panel / Troffer | - |
 | P10418 | MT-2X4BOX-3.0IN | 3.0" Height 2x4 Surface Mount Kit for Back-Lit Panel / Troffer | - |
 | P10335 | MT-2x2BOX-4.5in | 4.5" Height 2x2 Surface Mount Kit for Back-Lit Panel / Troffer | - |
| P10336 | MT-2x4BOX-4.5in | 4.5" Height 2x4 Surface Mount Kit for Back-Lit Panel / Troffer | - |
 | P10228 | MT-2X2FMBOX | 2x2 Flange Mount Kit for Back-Lit Panel / Troffer | - |
| P10229 | MT-2X4FMBOX | 2x4 Flange Mount Kit for Back-Lit Panel / Troffer | - |
