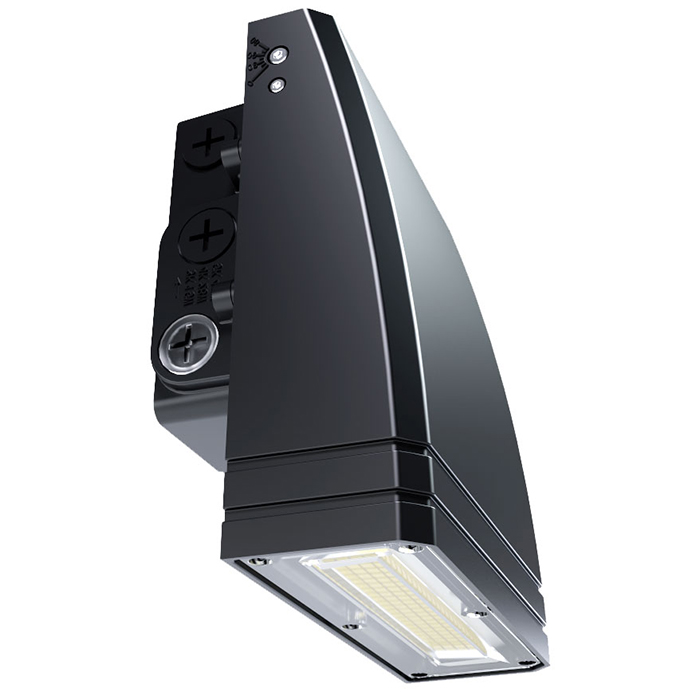

Slim Wall Pack (SWP)
15/28/45 Wattages – CCT3 – [Photocell]

Item Code 9590
Code FXSWP45SW/8CCT3/BK/347-PHO
Wattages 15/28/45W
Lumens 1,800
3,360
5,400
CCT CCT3 (30/40/50K)
Equiv.Wattages 100-250W
Color Black



SKU: FXSWP45SW/8CCT3/BK/347-PHO Categories: ,

Description

Features:


• DLC Premium Qualified
• IP65 Rated
• ETL, cETL Listed
• ADA Compliance (4” Depth)
• Wattage & Color Selectable
• Photocell Included


• Wattages Selectable: 15/28/45W
• Color Temp: 3CCT (30/40/50K)
• Voltage: 120-347V
• Surge Protection: 4KV
• Dimmable: 0-10V
• CRI>80
• Operating Temperature: -40°F – 122°F
• Beam Angle: 140°
• Material: Die Cast Aluminum
• Finish: Corrosion-resistant powder coating
• Adjustable Fixture Angle
• 1/2“ NPT Knockout
• Color: Black
• Warranty: 5 Year
• Built In Photocell Sensor Included
• Optional for Purchase: Mounting: Slip Fitter, Swivel Bracket, 3/4” NPT Knuckle Mount

Additional information

Weight 4.40 lbs
Dimensions 3.94 × 6.57 × 7.87 in
Wattage

,

CCT

CRI

Voltage

Color

Dimmable

Beam Angle

IP Rating

Photocell

Sensor

Listings

, ,

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILE BROCHURE

Dimensions

Weight:4.40-lbs

Accessories

Item Code
Order Code
Description
Data Spec
P10254
MT-KNC-SWP/BZ
3/4” NPT Knuckle - Bronze
-
P10006
MT-KNC-SWP/BK
3/4” NPT Knuckle - Black
-
P10255
MT-SF-SWP/BZ
Slip Fitter - Bronze
-
P10007
MT-SF-SWP/BK
Slip Fitter - Black
-
P10253
MT-SB-SWP/BZ
Swivel Bracket - Bronze
-
P10005
MT-SB-SWP/BK
Swivel Bracket - Black
-
