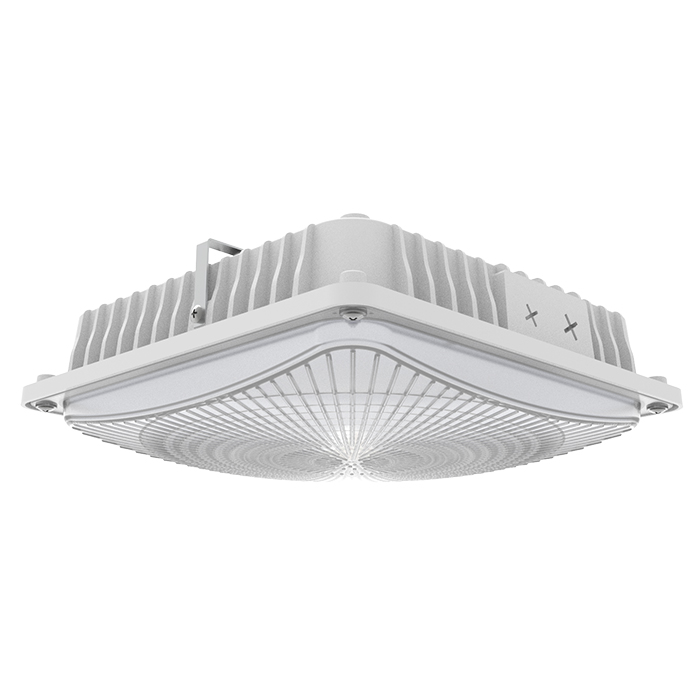

10″ Slim Canopy (SCM)
60 Selectable Wattages / Selectable CCT3 (30/40/50K)

Item Code 9547
Code FX10SCM60SW/8CCT3/WH
Wattages 28/45/57W
Lumens 3,584
5,760
7,318
CCT CCT3 (30/40/50K)
Equiv.Wattages 100-250W
Color White



SKU: FX10SCM60SW/8CCT3/WH Categories: ,

Description

Features:


• DLC Premium Qualified
• IP65 Rated
• ETL, cETL Listed
• Wattage & Color Selectable


• Wattages: 28/45/57W
• Color Temp: 3CCT (30/40/50K)
• Voltage: 120-277V
• Surge Protection: 4KV
• Dimmable: 0-10V
• CRI>80
• Operating Temperature: -40°F – 122°F
• Beam Angle: 160°
• 1/2” Conduit on 3-sides
• Material: Die Cast Aluminum
• Finish: Corrosion-resistant powder coating
• Color: White
• Warranty: 5 Year
• Optional for Purchase: Microwave Motion Sensor, Frosted & Drop Lens, Photocell, Emergency Driver, Beauty Plate, Wire Guard

Additional information

Weight 5.51 lbs
Dimensions 9.60 × 9.60 × 3.20 in
Wattage

, ,

CCT

CRI

Voltage

Color

Dimmable

Beam Angle

IP Rating

Photocell

Sensor

Listings

,

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILE IES DROP LENS IES FROSTED LENS BROCHURE

Dimensions

Weight:5.51-lbs

Accessories

Item Code
Order Code
Description
P10438
SEN-HB001VCD-1
Motion Sensor
-
7336
BAEM4-60BC/MV-A
4W CEC Compliant LED Emergency Driver
7334
BAEM15-48BC/MV-A
15W CEC Compliant LED Emergency Driver
P10036
SEN-PHO-BT-MT/MV
Button Photocell
120-277V
-
P10574
WG-SCM10
Wire Guard for 10" SCM
-
P10575
WG-SCM13
Wire Guard for 13" SCM
-
P10195
PLT-SCM/14X14/WH
14"x14" Beauty Plate
P10196
PLT-SCM/24X24/WH
24"x24" Beauty Plate
P10125
LENS-SCM/FR9X9
Frosted Lens for 10"
-
P10126
LENS-SCM/DR9X9
Drop Lens for 10"
-
P10389
SPD-L-10KV-277
Surge Protection 10KV
120-277V
P10390
SPD-L-20KV-277
Surge Protection 20KV
120-277V
P10391
SPD-L-20KV-480
Surge Protection 20KV
347-480V
