PL Plug-in
Type A + B

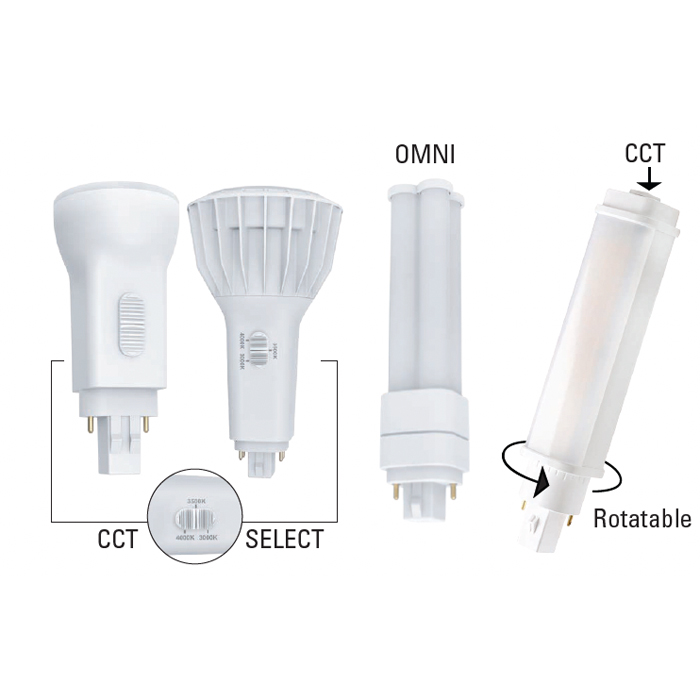

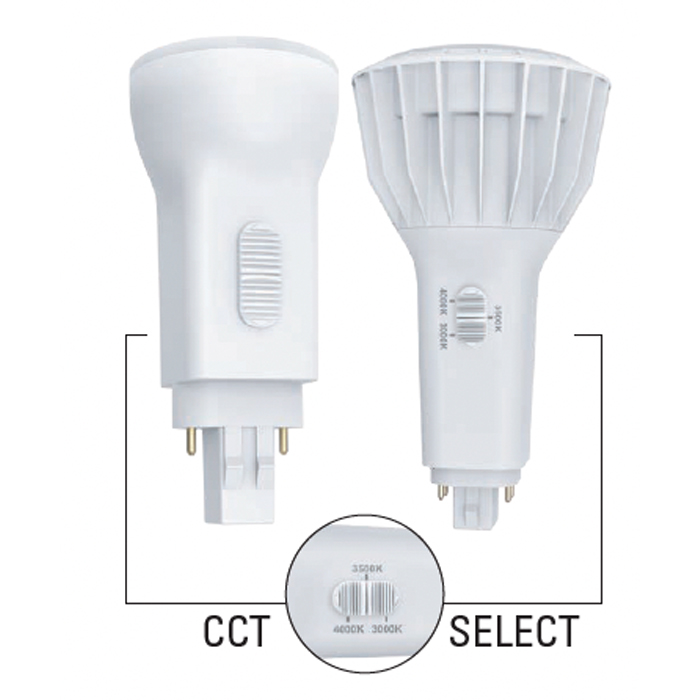

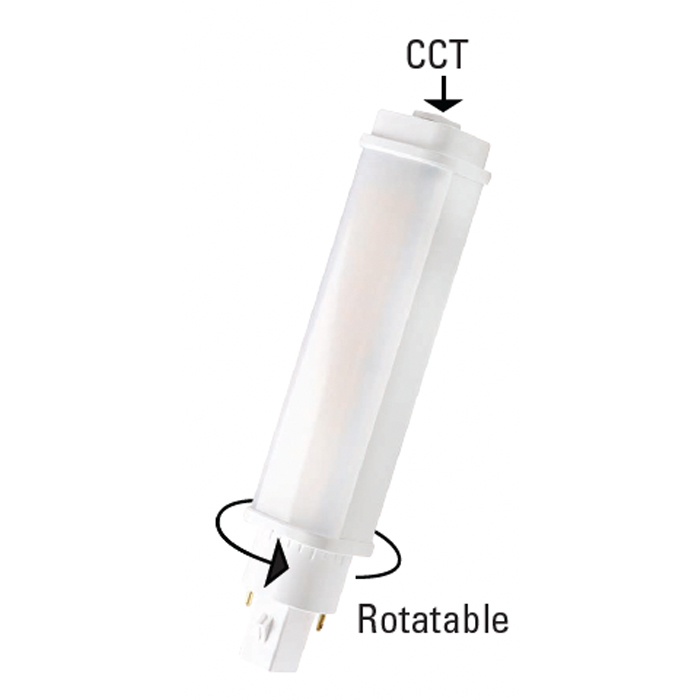

naturaLED® Plug-In LED Lamps offer a simple and smart upgrade for compact fluorescent fixtures. Built with A+B hybrid technology, they are compatible with existing ballasts or can be wired directly to a 120 to 277V line. This makes installation flexible and inventory management easy. Available for both 2-pin and 4-pin configurations with GX23, G24 and GX24 base types. Models are offered in directional for optimal light output and omnidirectional to replicate the light distribution of traditional CFLs. Color temperature can be adjusted in the field to 3000K, 3500K or 4000K, meeting the needs of both commercial and residential applications. Backed by a 5-year warranty, they deliver energy savings, long life and reliable performance in a compact form.


Spec Sheet


Category Plug-In
Wattage 6W~16W
CCT CCT3(30/35/40K), 3000K,3500K, 4000K
Lumens 650~1,750
Voltage 120-277V, PL Ballast*

Category:

Description

Item Code
Description
Wattage
CCT
Lumens
Equiv. Watt
Position
Beam
Angle
Spec
Installation
4669
LED6PL/H/65L/2P/GX23/8C3/AB
6W
CCT3
(30/35/40K)
650
11W
Hor.
120°
4673
LED6PL/V/65L/2P/GX23/8C3/AB
6W
CCT3
(30/35/40K)
650
11W
Vert.
110°
4661
LED8PL/O/95L/2P/G24d/830/AB
8W
3000K
950
18W
Omni
280°
4662
LED8PL/O/95L/2P/G24d/835/AB
8W
3500K
950
18W
Omni
280°
4663
LED8PL/O/95L/2P/G24d/840/AB
8W
4000K
950
18W
Omni
280°
4664
LED9.5PL/O/120L/2P/G24d/8C3/AB
9.5W
CCT3
(30/35/40K)
1,150
26W
Omni
280°
-
4665
LED8PL/O/95L/4P/G24q/830/AB
8W
3000K
950
18W
Omni
280°
-
4666
LED8PL/O/95L/4P/G24q/835/AB
8W
3500K
950
18W
Omni
280°
-
4667
LED8PL/O/95L/4P/G24q/840/AB
8W
4000K
950
18W
Omni
280°
-
4668
LED9.5PL/O/120L/4P/G24q/8C3/AB
9.5W
CCT3
(30/35/40K)
1,150
26W
Omni
280°
-
4670
LED9.5PL/H/110L/2P/G24d/8C3/AB
9.5W
CCT3
(30/35/40K)
1,100
26W
Hor.
(Rotatable)
120°
4671
LED9.5PL/H/110L/4P/G24q/8C3/AB
9.5W
CCT3
(30/35/40K)
1,100
26W
Hor.
(Rotatable)
120°
4672
LED16PL/H/175L/4P/G24q/8C3/AB
16W
CCT3
(30/35/40K)
1,850
32W
Hor.
(Rotatable)
120°
-
4674
LED9.5PL/V/110L/2P/G24d/8C3/AB
9.5W
CCT3
(30/35/40K)
1,100
26W
Vert.
110°
4675
LED9.5PL/V/110L/4P/G24q/8C3/AB
9.5W
CCT3
(30/35/40K)
1,100
26W
Vert.
110°
4676
LED16PL/V/175L/4P/G24q/8C3/AB
16W
CCT3
(30/35/40K)
1,750
32W
Vert.
120°

Additional information

Wattage

CCT

, , ,

CRI

Color

Voltage

Dimmable

Beam Angle

, ,

IP Rating

,

Photocell

Listings

Warranty

Download

Spec Sheet
