Floodlight 7×7 Knuckle Mount FDL
9/12/15 Watt – CCT3 [Photocell]

Item Code 9734
Code FXFDL15SW/77/CCT3/BK-KNC
Wattages 9/12/15W
Lumens 1,260
1,680
2,100
CCT CCT3 (30/40/50K)
Equiv.Wattages 100W
Color Black



SKU: FXFDL15SW/77/CCT3/BK-KNC Categories: ,

Description

Features:


• DLC Standard Qualified
• IP65 Rated
• UL Listed
• Wattage & Color Selectable
• Photocell Included


• Wattages: 9/12/15W
• Color Temp: 3CCT (30/40/50K)
• Voltage: 120-277V
• Surge Protection: 4KV
• Dimmable: 0-10V
• CRI>70
• Operating Temperature: -40°F – 113°F
• Beam Angle: NEMA 7×7
• Pre-installed 1/2″ Knuckle Mount
• 16-inch SO Cord for Easy Installation
• Recommended Mounting Height: 10~25ft
• Lens: PC Lens
• Material: Die Cast Aluminum
• Finish: Corrosion-resistant powder coating
• Color: Bronze
• Warranty: 5 Year
• Built In Photocell Sensor Included

Additional information

Weight 1.25 lbs
Dimensions 5.24 × 1.81 × 7.20 in
Wattage

,

CCT

CRI

Voltage

Color

Dimmable

Beam Angle

IP Rating

Photocell

Sensor

Listings

,

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILE

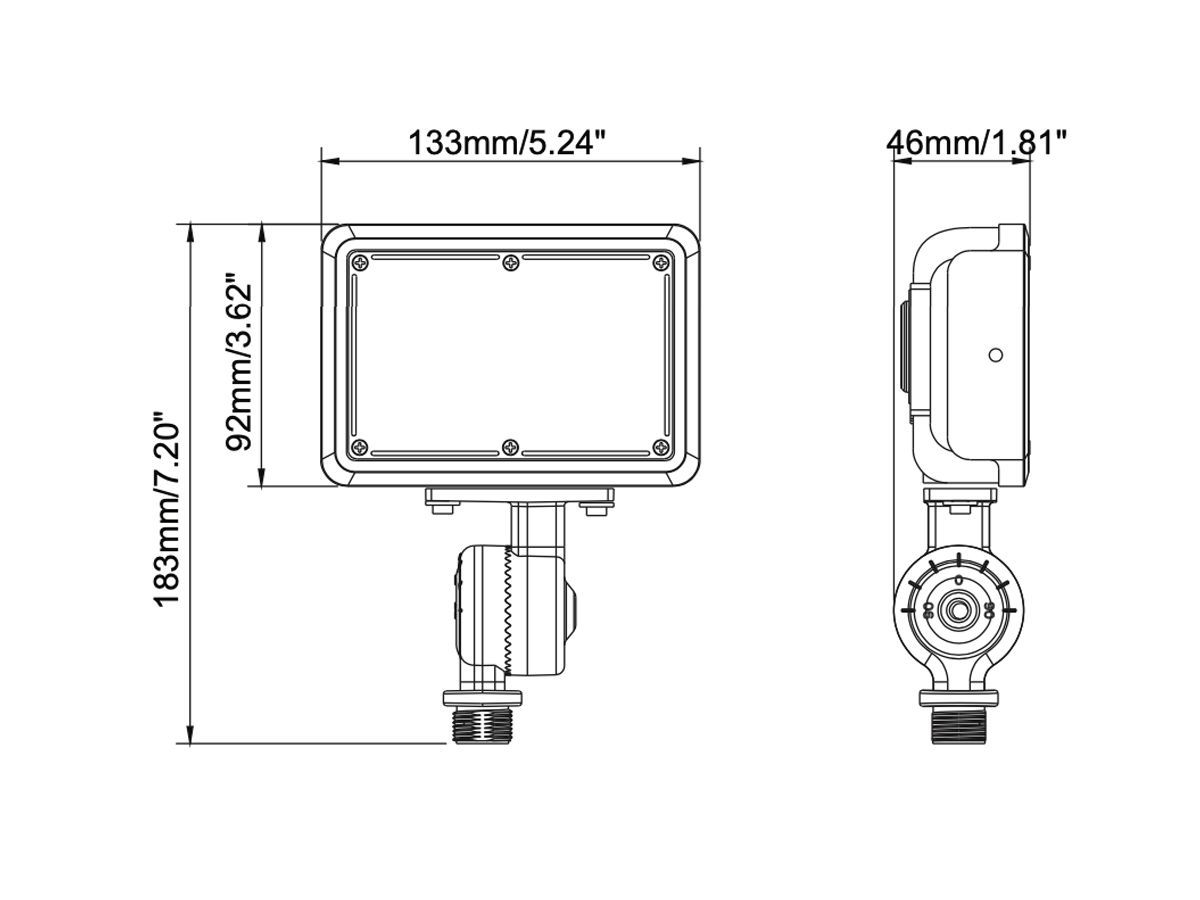

Dimensions

Weight:1.25-lbs
