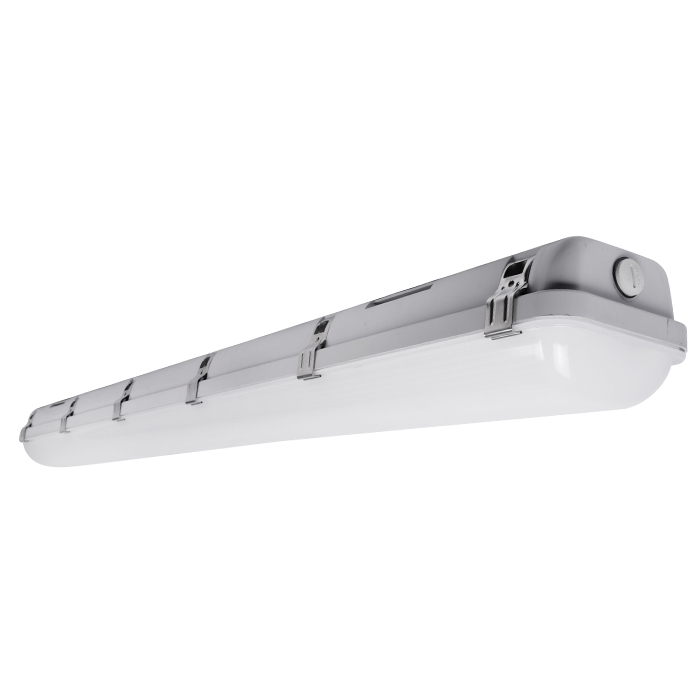

    • VTL Vapor Tight Linear
    Selectable CCT3 / IP66 Rated / 5″x 48″ / 120-277V

    Item Code 9562
    Code FXVTL60SW/48FR/8CCT3
    Wattages 30/45/60W
    Lumens 4,188
    5,850
    8,010
    CCT CCT3 (35/40/50K)
    Equiv.Wattages 3 x 32W T8



    SKU: FXVTL60SW/48FR/8CCT3 Categories: ,

    Description

    Features:

    • DLC Standard
    • IP65 Rated
    • ETL / ETL Sanitation Rated
    • NEMA 4X
    • Selectable Wattages (30/45/60W)
    • Color Temp: CCT3 (35/40/50K)
    • Voltage: 120-277V
    • Power Factor: >0.9
    • Surge Protection: 4KV
    • Beam Angle: 110°
    • Dimmable: 0-10V
    • CRI: 80
    • Operating temperature: – 40°F – 122°F
    • Designed for maximum operation in commercial environments
    • Lighter weight housing for easy installation
    • Stainless steel hasps and clips
    • 5-Year Warranty
    • Optional for purchase: Microwave Motion Sensor, Mounting Bracket, Emergency Driver, Surge Protector

    Additional information

    Weight 5.51 lbs
    Dimensions 47.25 × 5.00 × 3.70 in
    Wattage

    , ,

    CCT

    CRI

    Voltage

    Color

    Dimmable

    IP Rating

    Photocell

    Beam Angle

    Sensor

    Listings

    , ,

    Warranty

    Stock

    Download

    TECH SHEET SPEC SHEET  INSTALLATION .IES FILE BROCHURE

    Dimensions

    Weight:5.51-lbs

    Accessories

    Item Code
    Order Code
    Description
    Data Spec
    K7336412
    FXVTL30-BAEM-MTG1
    Emergency Backup Battery with Bracket Kit
    For 120-277V only. Fits for 30SW model only #9561
    -
    K7334412
    FXVTL-BAEM-MTG1
    Emergency Backup Battery with Bracket Kit
    For 120-277V only. Fits for 60SW and 100SW model only
    -
    P10411
    MT-Linear-45/90
    45°/90° Angle Mount Bracket for 9561 and 9562
    -
    P10438
    SEN-HB001VCR-1
    Remote Programmable Microwave Motion Sensor
    0-10V Bi-Level Internal 12V Low Voltage. For #9296-347V)
    -
    K438380
    SEN-HB001VCR/BA12V
    Remote Programmable Microwave Motion Sensor 0-10V Bi-Level Internal 120-277V
    -
    P10323
    SEN-HD05R
    Remote Programmer for K438380 and P10438
    -
    P10389
    SPD-L-10KV-277
    10KV Surge Protection 120-277V
    P10390
    SPD-L-20KV-277
    20KV Surge Protection 120-277V
