Retrofit Strip Light (RSL)
22/27/35/44W – CCT3 – [5.82″x48″]

Item Code 7161
Code FXRSL44SW/48FR/8CCT3/MV
Wattages 22/27/35/44W
Lumens 2,860
3,510
4,550
5,720
CCT CCT3 (35/40/50K)
Equiv.Wattages 2 x 32W T8



SKU: FXRSL44SW/48FR/8CCT3/MV Categories: ,

Description

Features:


• DLC Standard Qualified
• Damp Location
• UL/cUL Listed

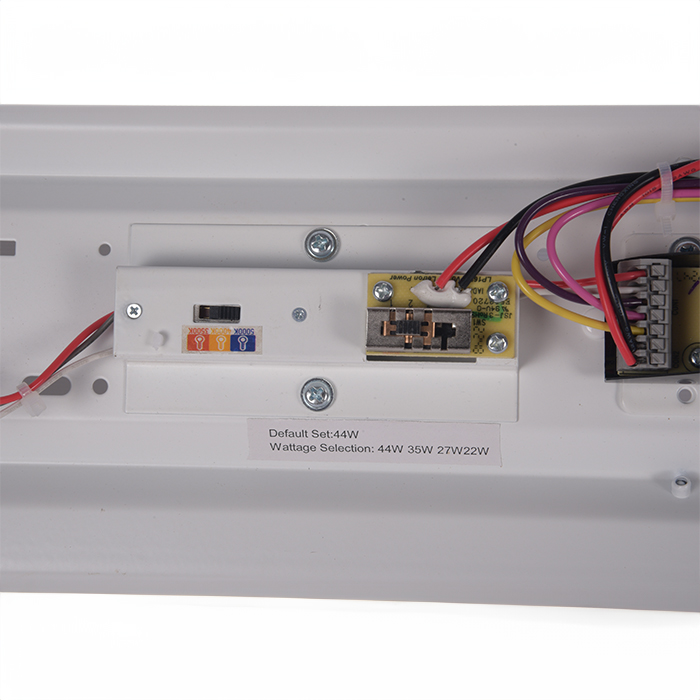

• Wattage & Color Selectable


• Wattages: 22/27/35/44W
• Color Temp: 3CCT (35/40/50K)
• Voltage: 120-277V
• Surge Protection: 2KV
• Dimmable: 0-10V
• CRI>80
• Operating Temperature: -13°F – 104°F
• Beam Angle: Flood
• Lens: PC Lens
• Material: Steel
• Color: White
• Length: 4-ft
• Warranty: 5 Year
• Direct Retrofit
• Optional for Purchase: Motion Sensor, Emergency Drivers

Additional information

Weight - lbs
Dimensions 47.67 × 5.82 × 3.43 in
Wattage

,

CCT

CRI

Voltage

Color

Dimmable

Beam Angle

Length

IP Rating

Photocell

Sensor

Listings

,

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILE BROCHURE

Dimensions

Accessories

Item Code
Order Code
Description
Data Spec
7336
BAEM4-60BC/MV-A
4W CEC Compliant LED Emergency Driver 120-277V
For 4ft: #7161
7334
BAEM15-48BC/MV-A
Emergency Backup Driver 120-277V
For 8ft: #7162
P10438
SEN-HB001VCR-1
Motion Sensor 0-10V internal 12V
-
P10323
SEN-HD05R
Remote Programmer
-
