5″ Vapor Tight Linear (VTL)
41Watt – 4000K – [5″X48″]

Item Code 9296
Code FXVTL40/48FR/840/347
Wattages 41W
Lumens 5,397
CCT 4000K
Equiv.Wattages 2 x 32W T8



SKU: FXVTL40/48FR/840/347 Categories: ,

Description

Features:

• DLC Standard Qualified
• IP65 Rated
• ETL / ETL Sanitation Rated
• NEMA 4X

• Wattage: 41W
• Color Temp: 4000K
• Voltage: 120-347V
• Surge Protection: 4KV
• Dimmable: 0-10V
• Beam Angle: 110°
• CRI>80
• Operating Temperature: -40°F – 122°F
• Color: Grey/White
• Warranty: 5 Year
• Designed for maximum operation in commercial environments
• Lighter weight housing for easy installation
• Stainless steel hasps and clips
• Optional for Purchase: Microwave Motion Sensor, Mounting Bracket, Emergency Driver, Surge Protector

Additional information

Weight 5.51 lbs
Dimensions 47.25 × 5.00 × 3.70 in
Wattage

CCT

CRI

Voltage

Color

,

Dimmable

Beam Angle

Length

IP Rating

Photocell

Sensor

Listings

, ,

Warranty

Stock

Download

TECH SHEET SPEC SHEET  INSTALLATION BROCHURE

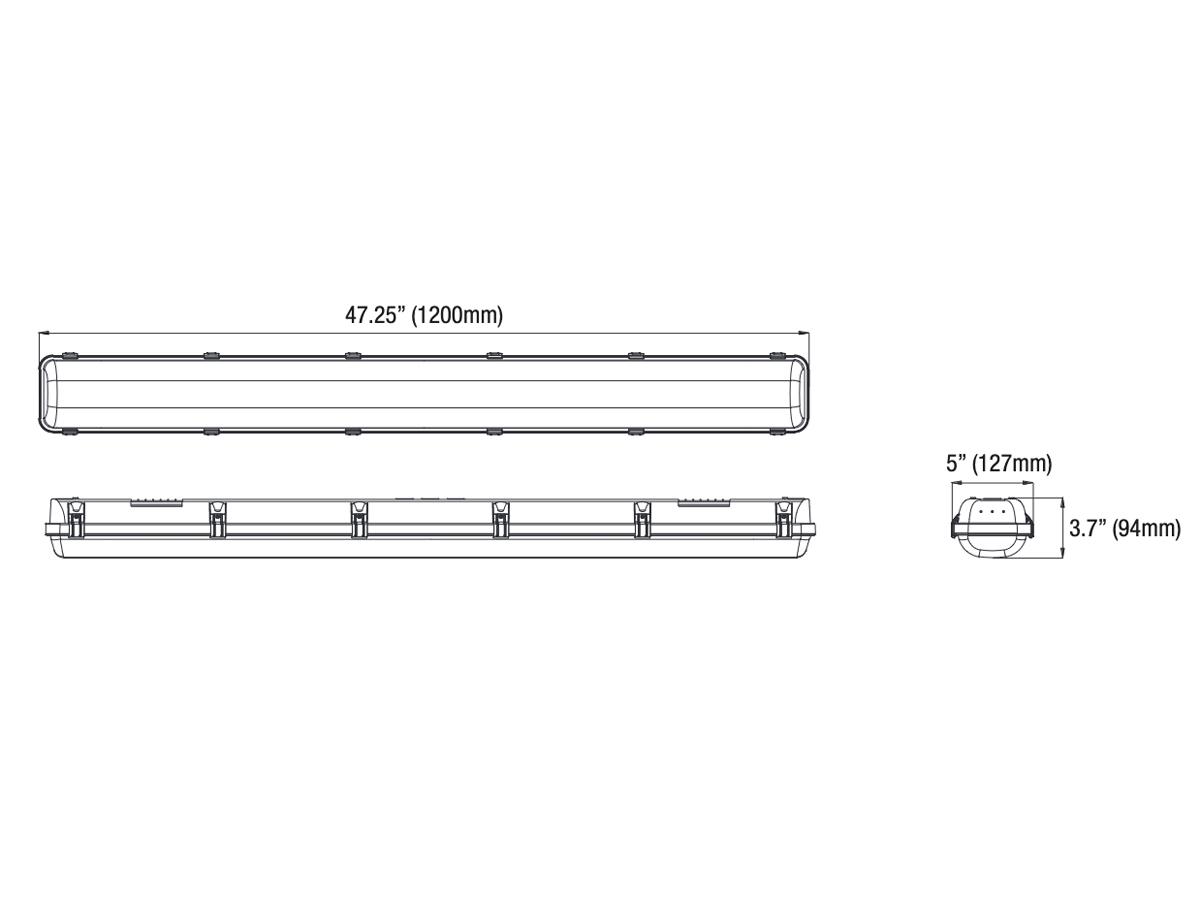

Dimensions

Weight:5.51-lbs

Accessories

Item Code
Order Code
Description
Data Spec
K7336412
FXVTL30-BAEM-MTG1
Emergency Backup Battery with Bracket Kit
For 120-277V only. Fits for 30SW model only #9561
-
K7334412
FXVTL-BAEM-MTG1
Emergency Backup Battery with Bracket Kit
For 120-277V only. Fits for 60SW and 100SW model only
-
P10411
MT-Linear-45/90
45°/90° Angle Mount Bracket for 9561 and 9562
-
P10438
SEN-HB001VCR-1
Remote Programmable Microwave Motion Sensor
0-10V Bi-Level Internal 12V Low Voltage. For #9296-347V)
-
K438380
SEN-HB001VCR/BA12V
Remote Programmable Microwave Motion Sensor 0-10V Bi-Level Internal 120-277V
-
P10323
SEN-HD05R
Remote Programmer for K438380 and P10438
-
P10389
SPD-L-10KV-277
10KV Surge Protection 120-277V
P10390
SPD-L-20KV-277
20KV Surge Protection 120-277V
