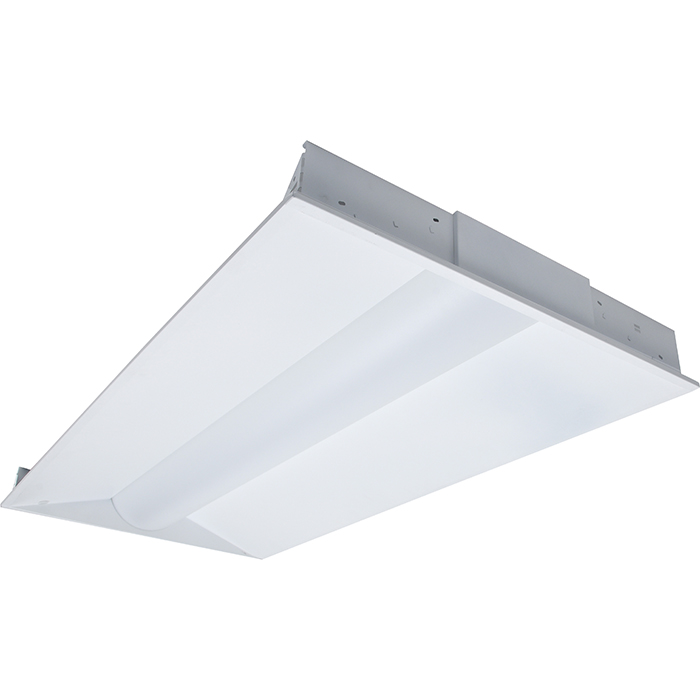

TF Center Basket Troffer (2′ x 4′)
Single Wattages & 4000K / 1-10V / 120-277V

Item Code 9239
Code LED-FXTF30/2×4/840G1
Wattages 30W
Lumens 3,900
CCT 4000K
Equiv.Wattages 90-100W



SKU: LED-FXTF30/2x4/840G1 Categories: ,

Description

Features:

• DLC Standard
• Damp Location
• UL Listed
• Color Temp: 4000K
• Voltage: 120-277V
• Power Factor: >0.9
• Surge Protection: 1KV
• Beam Angle: 120°
• Dimmable 1-10V
• CRI: >80
• Operating temperature: – 4°F – 104°F
• Easy installation for retrofit replacement
• Dimensions: 2’x4′
• Material: Steel and PC lens
• 5 Year Warranty
• Optional for Purchase: Emergency Driver, Motion Sensor, Flange Mount Kit

Additional information

Weight 13.30 lbs
Dimensions 47.70 × 23.7 × 3.50 in
Wattage

CCT

CRI

Voltage

Color

Dimmable

IP Rating

Photocell

Sensor

Listings

,

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILE BROCHURE

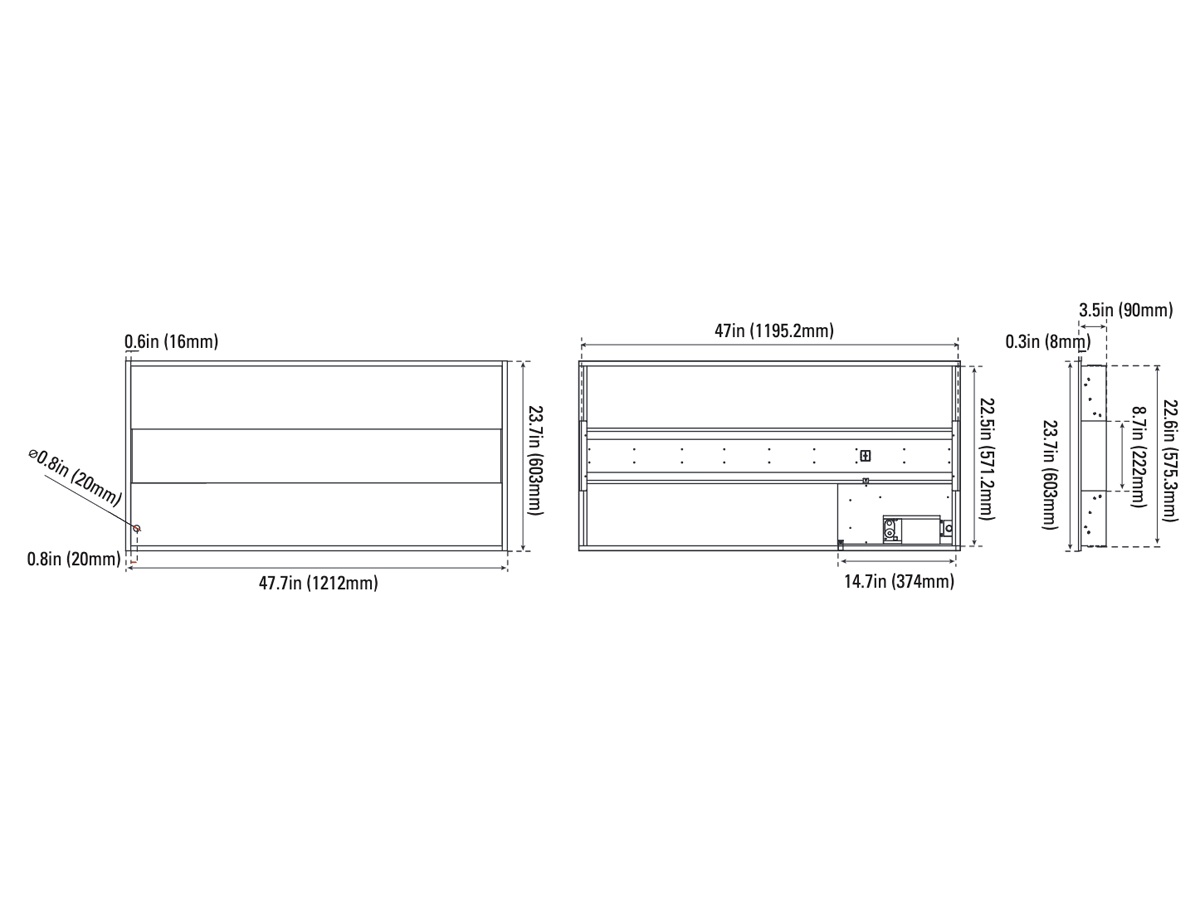

Dimensions

Weight:13.30-lbs

Accessories

Item Code
Order Code
Description
Data Spec
K7334225
FXTF-BAEM-MT
Emergency Driver for 100-277V with mounting plate
-
K225234
PLT/FXTF/MC605
Microwave Motion Sensor for 100-277V with mounting plate
-
P10228
MT-2X2FMBOX
2’ x 2’ Flange Mount Kit
P10229
MT-2X4FMBOX
2’ x 4’ Flange Mount Kit
P10147
MT-ACC-4FT
4-ft cable
P10144
MT-ACC-10FT
10-ft cable
