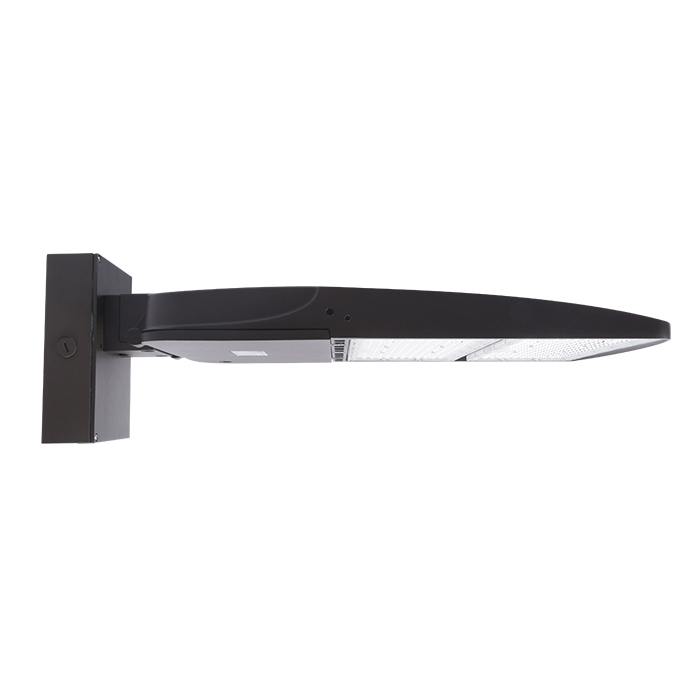

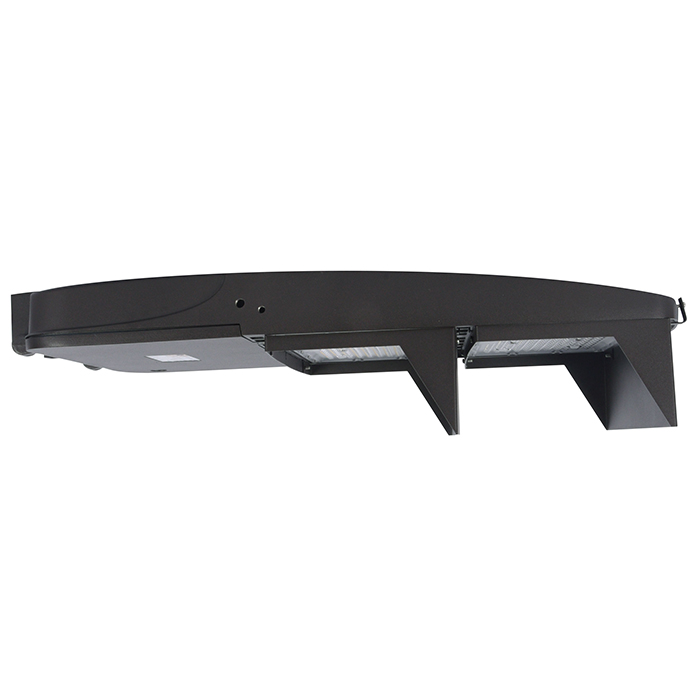

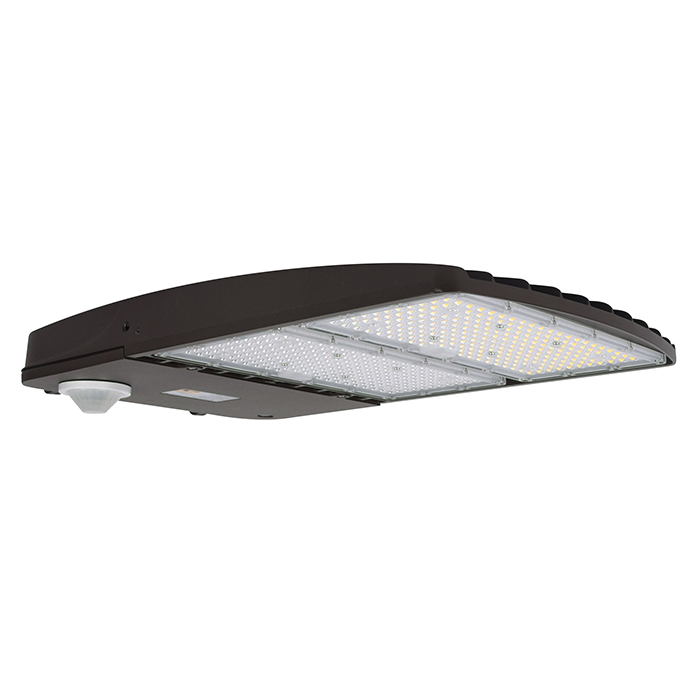

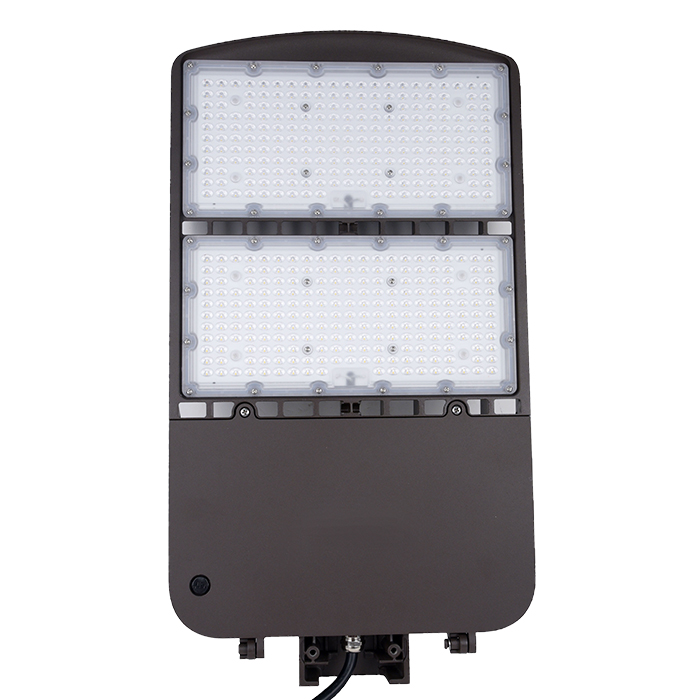

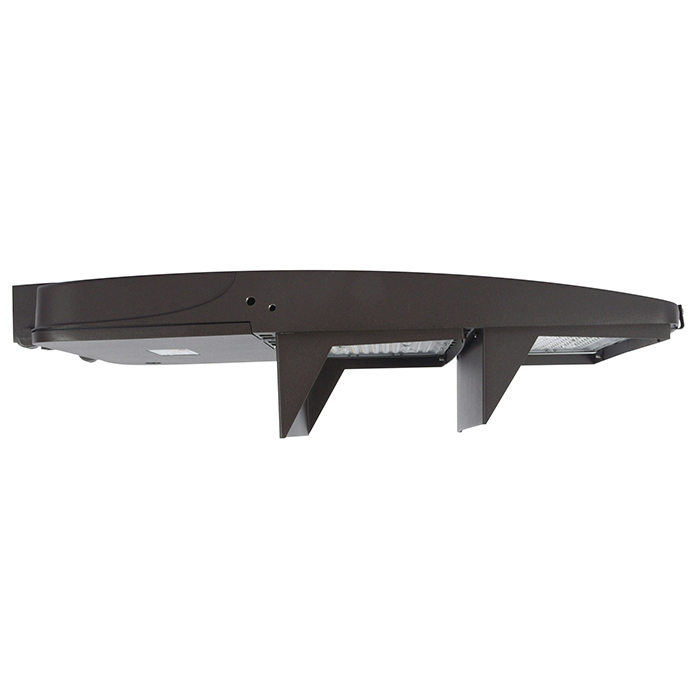

Compact Area Lights (CAL) 480V
300W – 4000K – [IP65 Rated]

Item Code 9518
Code FXCAL300/840/BZ/3S/480
Wattages 300W
Lumens 42,000
CCT 4000K
Equiv.Wattages 1000-1500W
Color Bronze



SKU: FXCAL300/840/BZ/3S/480 Categories: ,

Description

Features:


• DLC Premium Qualified
• IP65 Rated
• UL/cUL Listed
• IK09


• Wattages: 300W
• Color Temp: 4000K
• Voltage: 277-480V
• Surge Protection: 6KV
• Dimmable: 1-10V
• CRI>80
• Operating Temperature: -40°F – 113°F
• Beam Angle: Type 3 (Optional purchase available for Type 4, Type 5 Lens)
• Lens: UV Resistant Polycarbonate Lens
• Material: Die Cast Aluminum
• Finish: Corrosion-resistant powder coating
• Color: Bronze
• Warranty: 5 Year
• Power Cable Length: 6-ft
• Optional for Purchase: Mounts, Receptacle, Lens

Additional information

Weight 10.75 lbs
Dimensions 22.72 × 12.39 × 2.42 in
Wattage

CCT

CRI

Voltage

Color

Dimmable

Beam Angle

IP Rating

Photocell

Sensor

Listings

,

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION BROCHURE

Dimensions

Weight:10.75-lbs

Accessories

Item Code
Order Code
Description
Data Spec
P10365
MT-CAL/PM8/BZ
8” Pole Mount Arm for CAL
-
P10366
MT-CAL/SF/BZ
Slip Fitter Mount for CAL)
P10367
MT-CAL/YK13/BZ
13" Yoke Mount for Compact Area Light - Bronze
K473478
MT-AL/WM/BZ
Yoke Mount 13” for CAL)
-
P10053
SEN-PHO-LK-MT-SRT
Twist Lock Photocell Shorting Cap
120-480V 3 Prong
-
K141030
REC3PLK/PHO
Twist Lock Photocell & Receptacle
120-277V 3 Prong
-
P10405
GSFB-CAL/BZ
Requires 1pc for 100/150W,
Recommend 2 pcs for 240/300W
P10141
REC3PLK
Twist Lock Photocell & Receptacle
Mount 120-480V 3 Prong
-
P10142
REC7PLK
Twist Lock Photocell & Receptacle
Mount 120-480V 7 Prong
-
P10398
LENS-CAL-IV
Type 4 Lens for Compact Area Light 100W and 150W (240W and 300W requires 2 per fixture)
P10399
LENS-CAL-V
Type 5 Lens for Compact Area Light 100W and 150W (240W and 300W requires 2 per fixture)
P10391
SPD-L-20KV-480
Surge Protection 20KV 347-480V
P10387
SEN-BRI823-B-D
PIR Motion/ Photocell 0-10V Bi-Level
Control Internal 120-277V
P10371
SEN-BRI619
Sensor Motion 0-10V IP66 Internal
12-24V IR head. *Compatible with
347V & 480V models only.
P10316
SEN-BRI-RC100
Remote Programmer for
P10371, P10387
