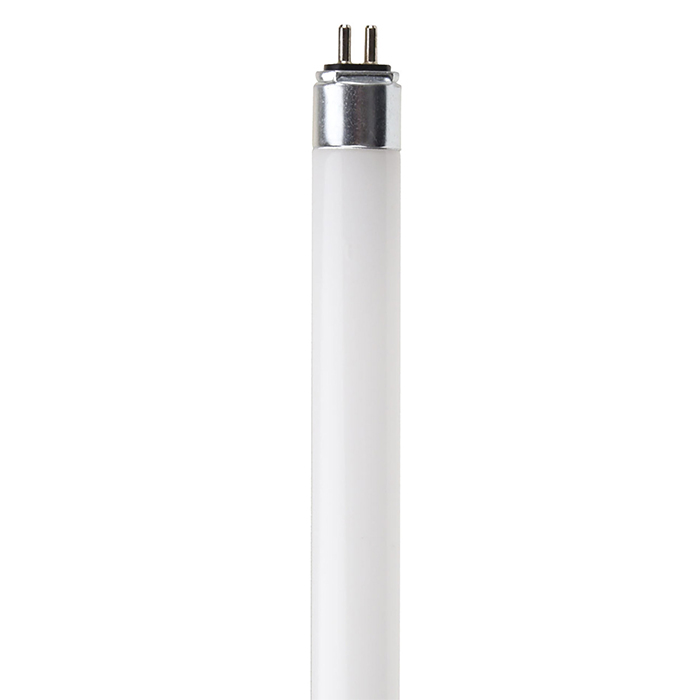

T5 LED Tubes Integrated (Type B)
25Watt – 5000K – [4-ft]

Item Code 5943
Code LED25T5/FR35/850
Wattages 25W
Lumens 3,500
CCT 5000K
Equiv.Wattages 54W



SKU: LED25T5/FR35/850 Categories: , ,

Description

Features:


• DLC Standard
• For Damp Locations
• UL Listed


• Retrofit for T5 fluorescent tubes
• Ballast bypass design (UL Type B)
• T5 designed for double-sided wiring
• No flickering
• No ballast required
• Input Voltage: 120-277V
• Beam Angle: 325°
• Surge Protect Level: 1.5KV (all by-pass tubes)
• Operating Temperature: -4°F – 113°F
• 50,000 hrs rated average life

Additional information

Weight 0.45 lbs
Dimensions 48 × 0.63 in
Tube Type

Shape

T5

Base

Length

Wattage

CCT

CRI

Voltage

Beam Angle

Dimmable

Color

IP Rating

Photocell

Listings

,

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILE BROCHURE

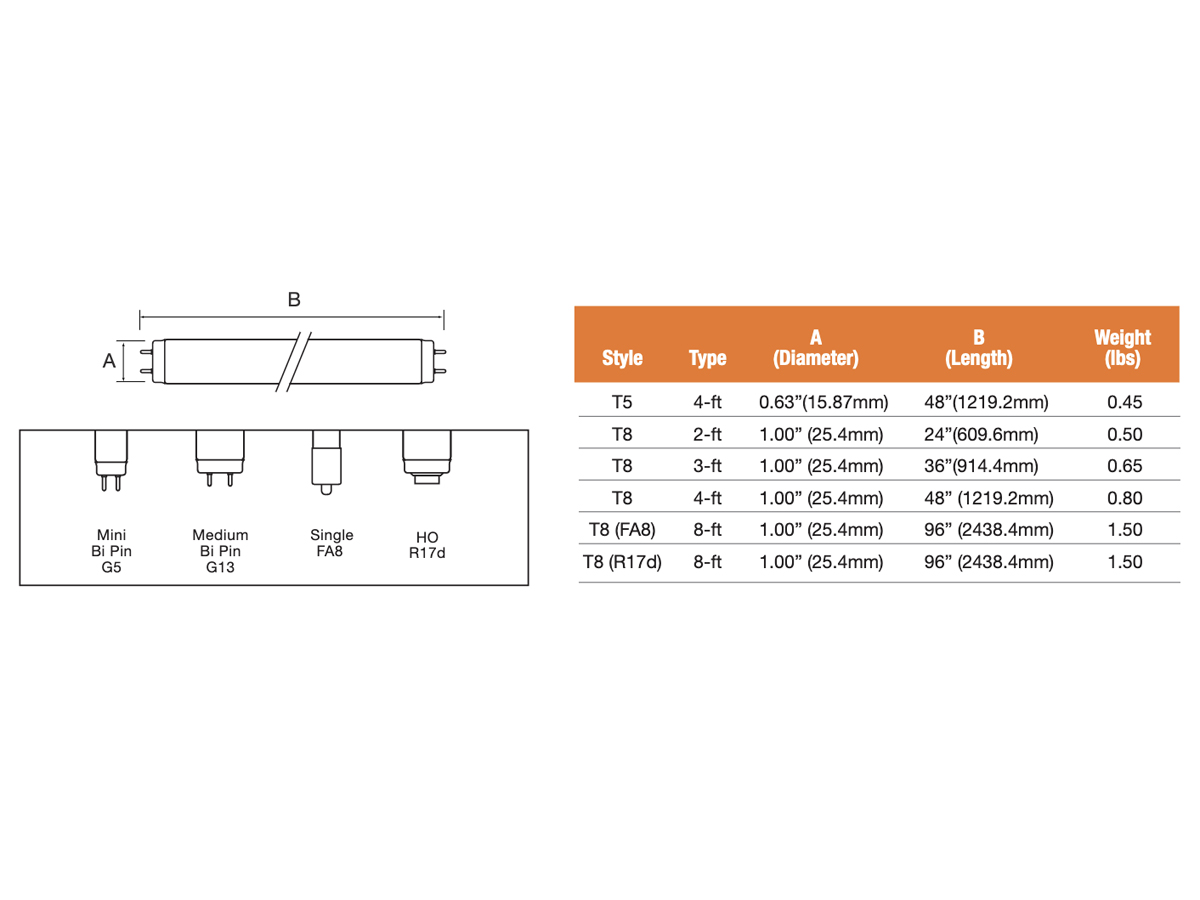

Dimensions

Weight:0.45-lbs
