| Item Code | 9577 |
|---|---|
| Code | FXCSL22/24FR/8CCT3/347 |
| Wattages | 22W |
| Lumens | 2,878 |
| CCT | CCT3 (35/40/50K) |
| Equiv.Wattages | 2 x 17W T8 |
• DLC Standard Qualified
• Damp Location
• UL Listed
• Color Selectable
• Wattage: 22W
• Color Temp: 3CCT (35/40/50K)
• Voltage: 120-347V
• Surge Protection: 2KV
• Dimmable: 0-10V
• CRI>80
• Operating Temperature: -13°F – 104°F
• Beam Angle: Flood
• Lens: PC Lens
• Material: Steel
• Color: White
• Length: 2-ft
• Warranty: 5 Year
• Easy Installation Clip-On
• Optional for Purchase: Motion Sensor, Emergency Drivers, Remote Control

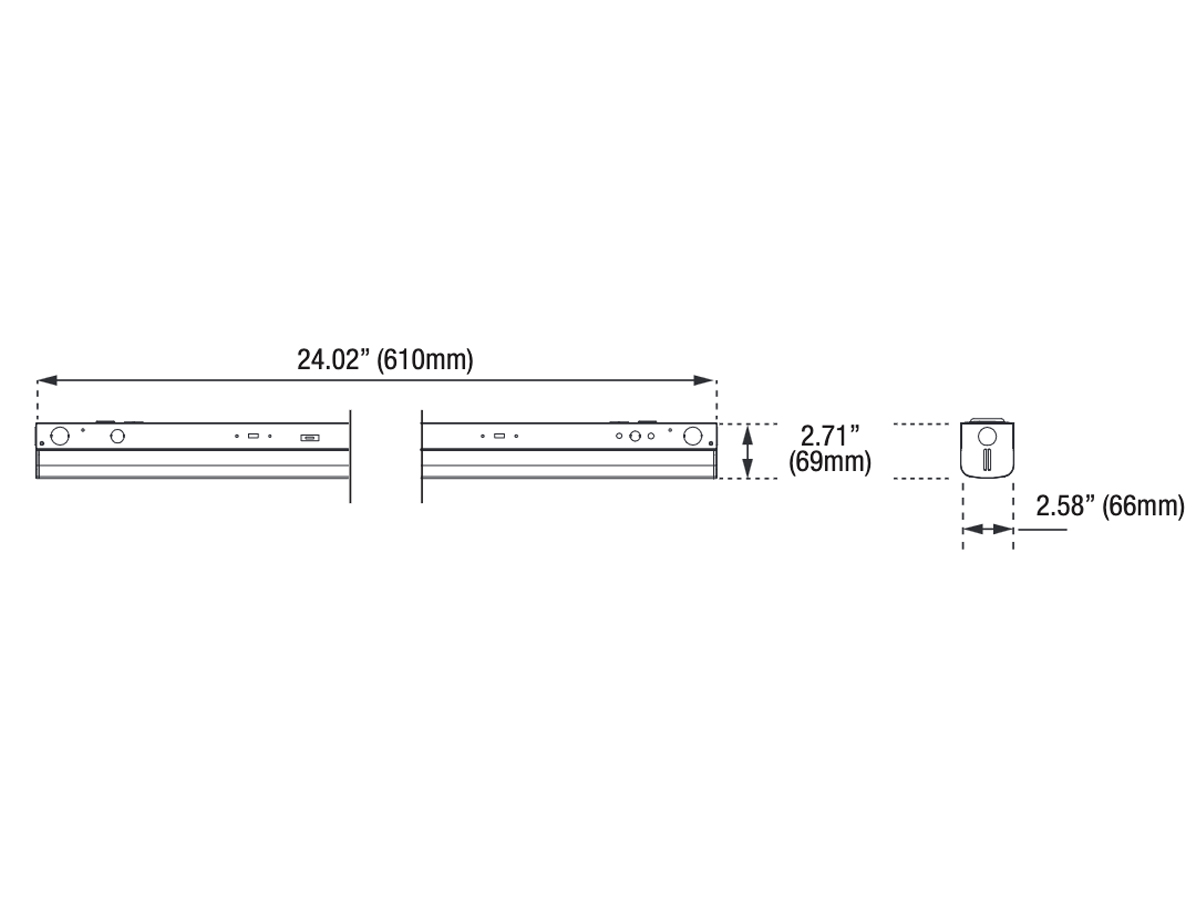

| Dimensions | 24.02 × 2.58 × 2.71 in |
|---|---|
| Wattage | |
| CCT | |
| CRI | |
| Voltage | |
| Color | |
| Dimmable | |
| Beam Angle | |
| Length | |
| IP Rating | |
| Photocell | |
| Sensor | |
| Listings | |
| Warranty | |
| Stock |
Image | Item Code | Order Code | Description | Data Spec |
|---|---|---|---|---|
 | 7336 | BAEM4-60BC/MV-A | 120V ~ 277V 4W EM Driver for 4ft CSL only #9575 |  |
 | 7334 | BAEM15-48BC/MV-A | Emergency Backup Driver 120-277V for 8ft CSL only #9578 | |
 | P10438 | SEN-HB001VCR-1 | Remote Programmable Microwave Motion Sensor 0-10V Bi-Level Internal 12V Low Voltage | - |
 | P10323 | SEN-HD05R | Remote Programmer for P10438 | - |
 | P10010 | WG-2.5CSL/24/WH | Wire Guard for #9577 | - |
| P10011 | WG-2.5CSL/48/WH | Wire Guard for #9575 and #9578 (Requires 2 pcs for #9578) | - |
