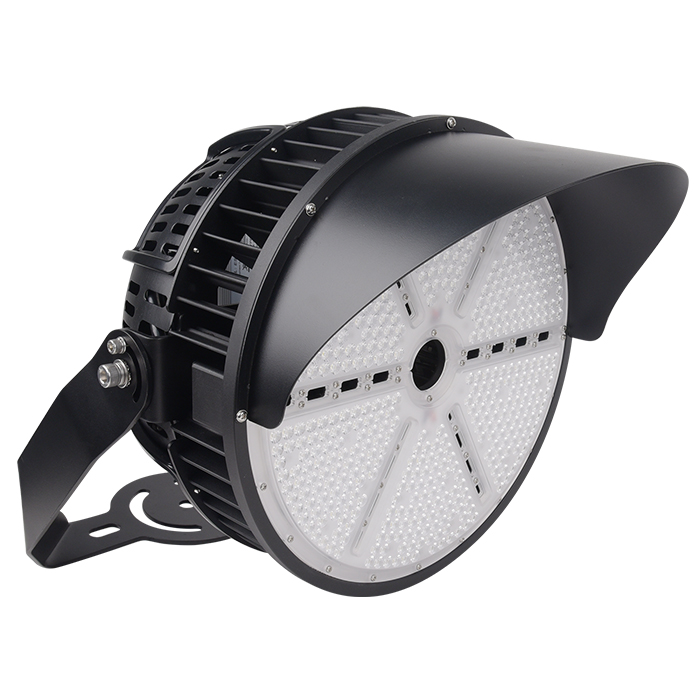

15″ Sports Stadium Lights
Selectable Wattages / 5000K / 4×4 Beam

Item Code 9588
Code FX15SPL500SW/44/50K/BK/480
Wattages 300/400/500W
Lumens 50,700
64,000
75,500
CCT 5000K
Equiv.Wattages 1500W
Color Black



SKU: FX15SPL500SW/44/50K/BK/480 Categories: ,

Description

Features:


• DLC Premium Qualified
• IP66 Rated
• UL Listed
• Selectable Wattages
• Color Temp: 5000K
• Input Voltage: 277-480V
• Power Factor >0.9
• Surge Protection: 10KV
• Beam Angle: NEMA 4X4
• Dimmable: 1-10V
• CRI: 70
• Operating Temperature:  – 40°F – 122°F
• Designed with thermal management to maximize heat dissipation
• Compact design for simpler installation
• UV resistant polycarbonate lens
• Color: Black
• 5 Year Warranty

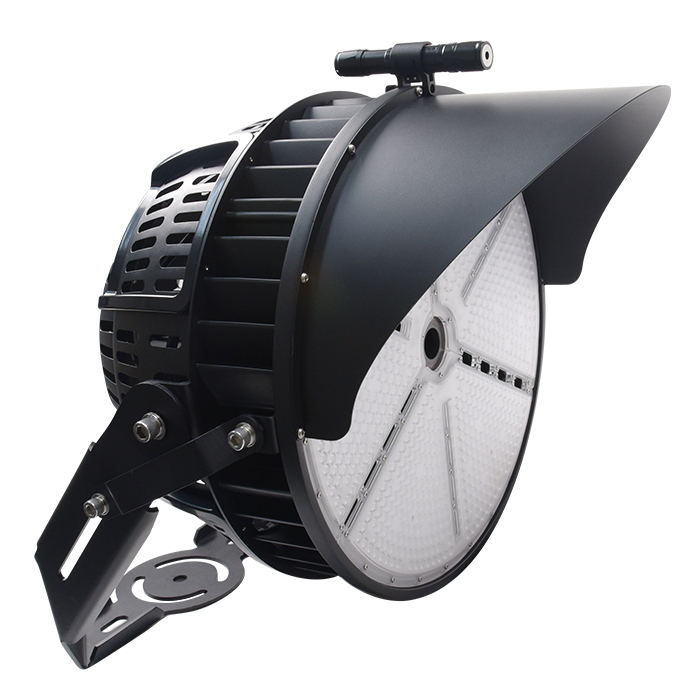

• Optional for Purchase: Laser Pointer (for accurate aim), Slip Fitter, Lens (Type V), Photocell & Receptacle

Additional information

Weight 32.60 lbs
Dimensions 16.14 × 14.76 × 16.14 in
Wattage

,

CCT

CRI

Voltage

Color

Dimmable

Beam Angle

IP Rating

Photocell

Sensor

Listings

,

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILE

Dimensions

Weight:32.60-lbs

Accessories

Item Code
Order Code
Description
Data Spec
P10322
LASER-SPL/GRN-A
Laser Position Green Light
-
P10306
MT-SF-15SPL/B
Slip Fitter Mounting Arm)
K141030
REC3PLK/PHO
Twist-lock Photocell/Receptacle Mount 120-277V 3 Prong
-
K141223
REC3PLK/PHO/480
Twist-lock Photocell/Receptacle Mount 480V 3 Prong)
-
P10340
LENS-SPL15-NEMA55
Type 5 lens for 15SPL
-
