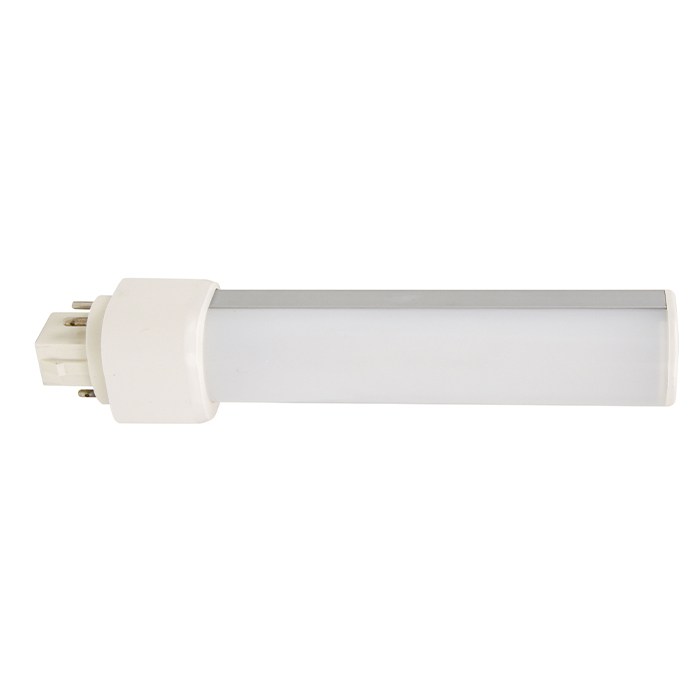

PL Plug-In Instant Fit (Ballast Compatible)
3500K / G24q ,GX24q Base / Horizontal

Item Code 4547
Code LED12PL/H/100L/4P/835/IF
Wattages 12W
Lumens 1,050
CCT 3500K
Equiv.Wattages 26W



SKU: LED12PL/H/100L/4P/835/IF Categories: ,

Description

Features:


• DLC Standard
• For Damp Locations
• UL Listed
• Instant Fit (works with existing electronic ballast)
• Direct Replacement for PL
• Position: Horizontal
• Color Temp: 3500K
• Universal socket for G24q and GX24q
• Input line voltage: 120-277V
• Power Factor: >0.9
• CRI: 80
• Beam Angle: 120°
• Operating Temperature: – 4°F – 113°F
• 50,000 hrs rated average life

Additional information

Weight 0.2 lbs
Dimensions 6.50 × 6.50 × 1.80 in
Wattage

CCT

CRI

Voltage

Color

Beam Angle

Dimmable

IP Rating

Photocell

Listings

,

Warranty

Stock

Download

TECH SHEET SPEC SHEET .IES FILE

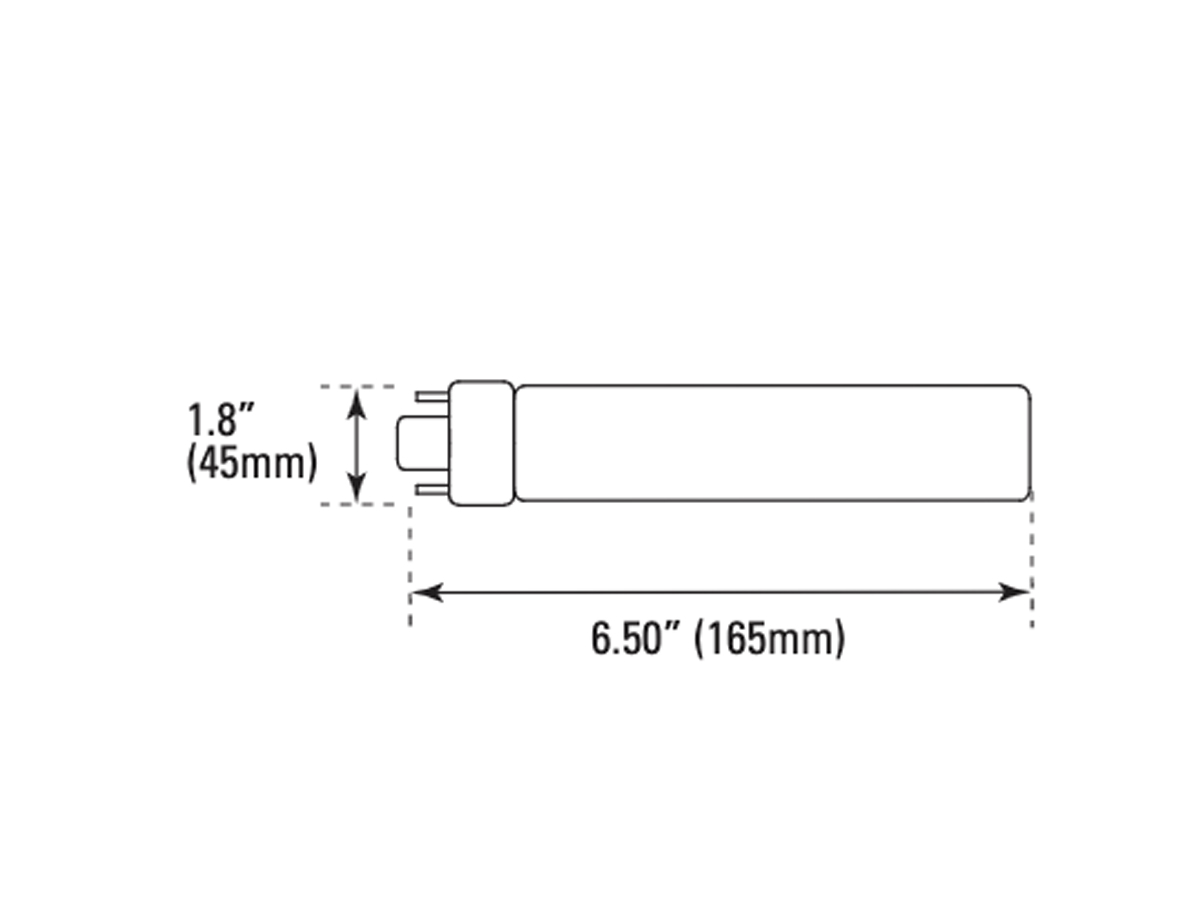

Dimensions

Weight: 0.2-lbs
